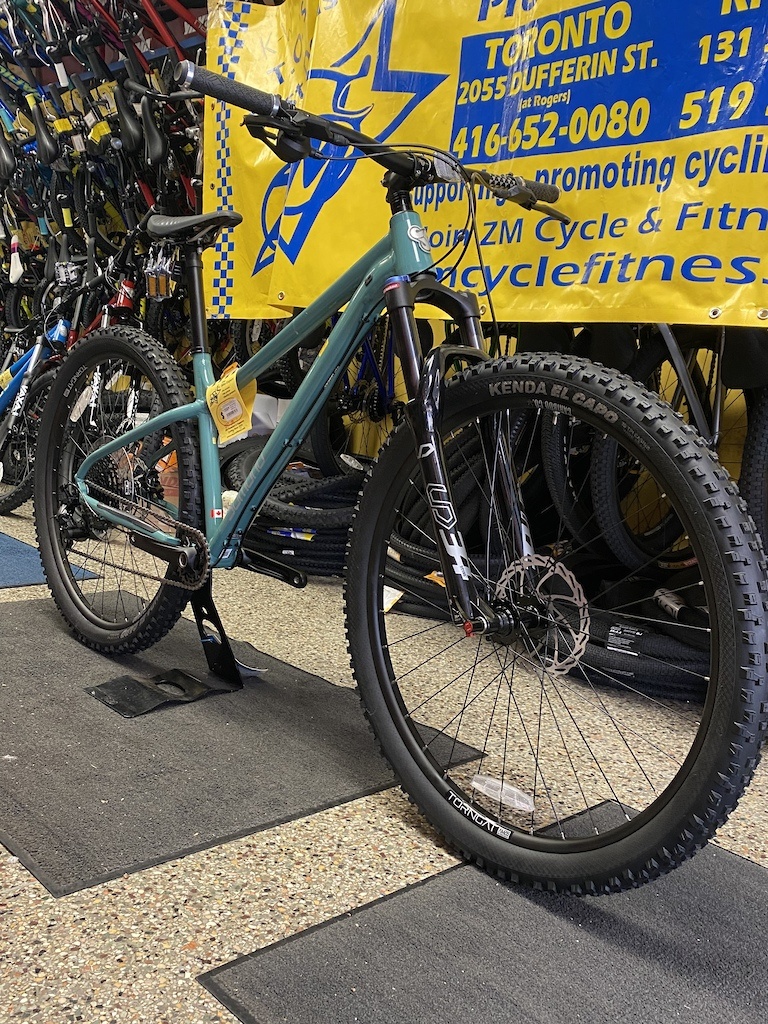

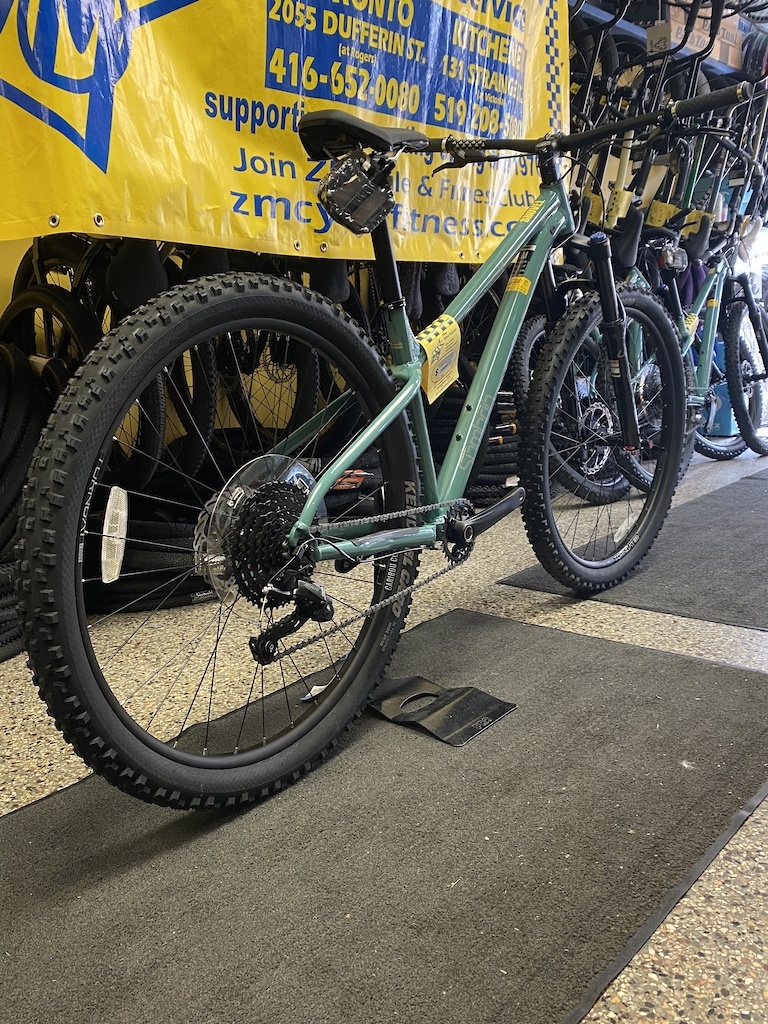

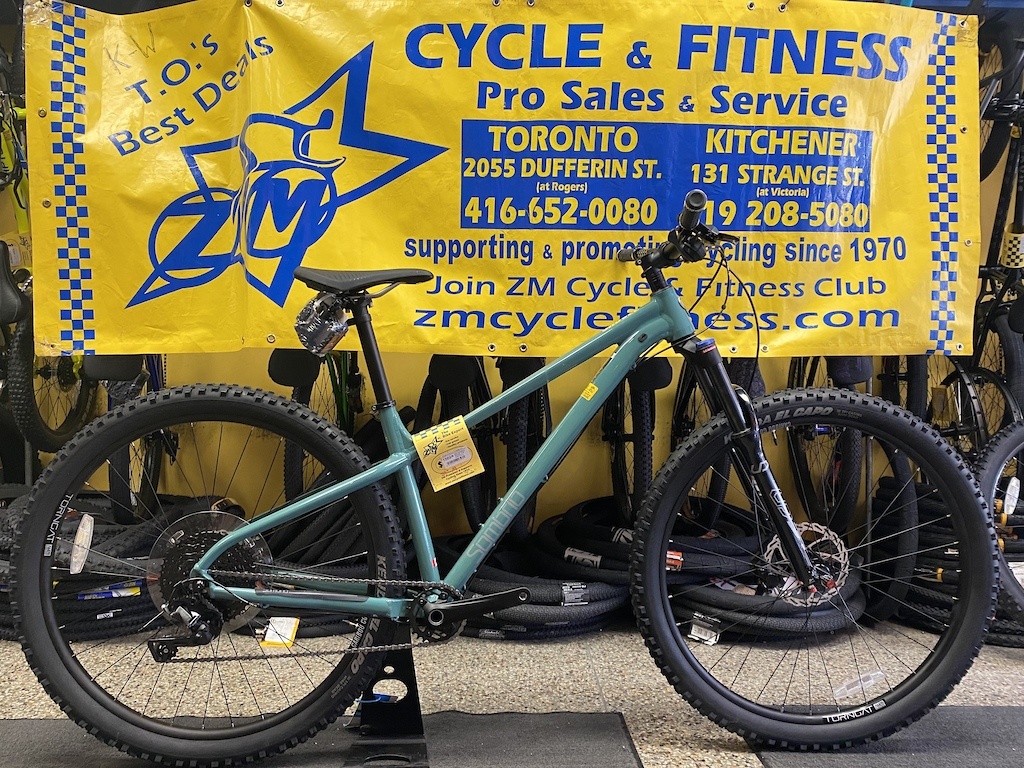

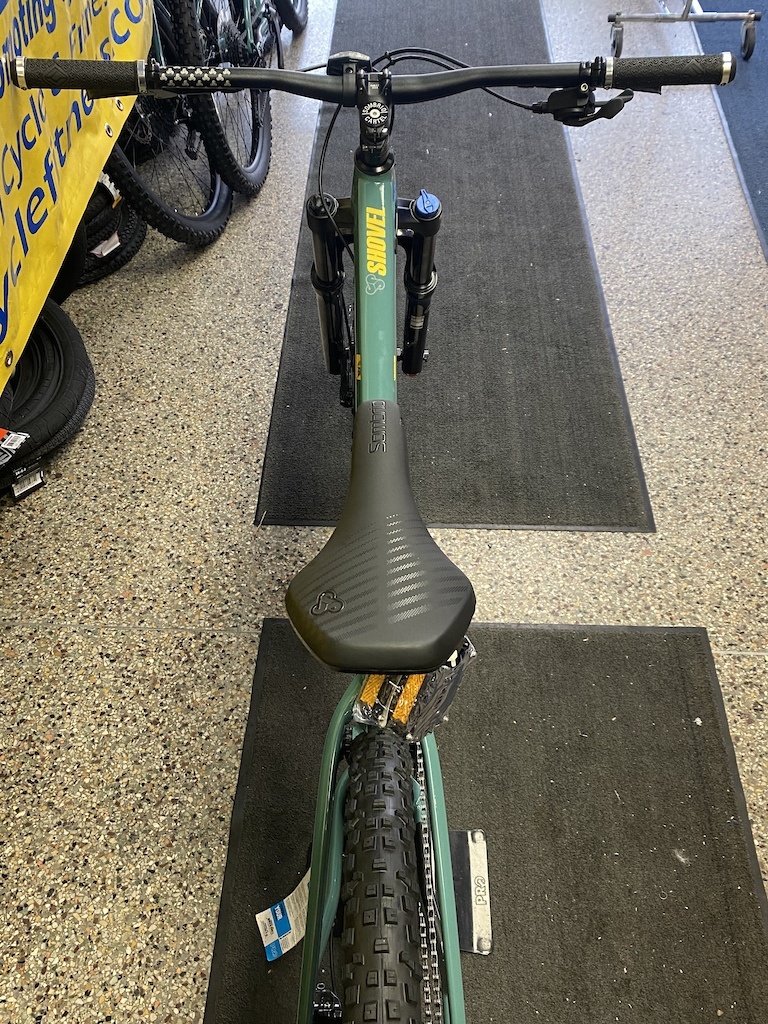

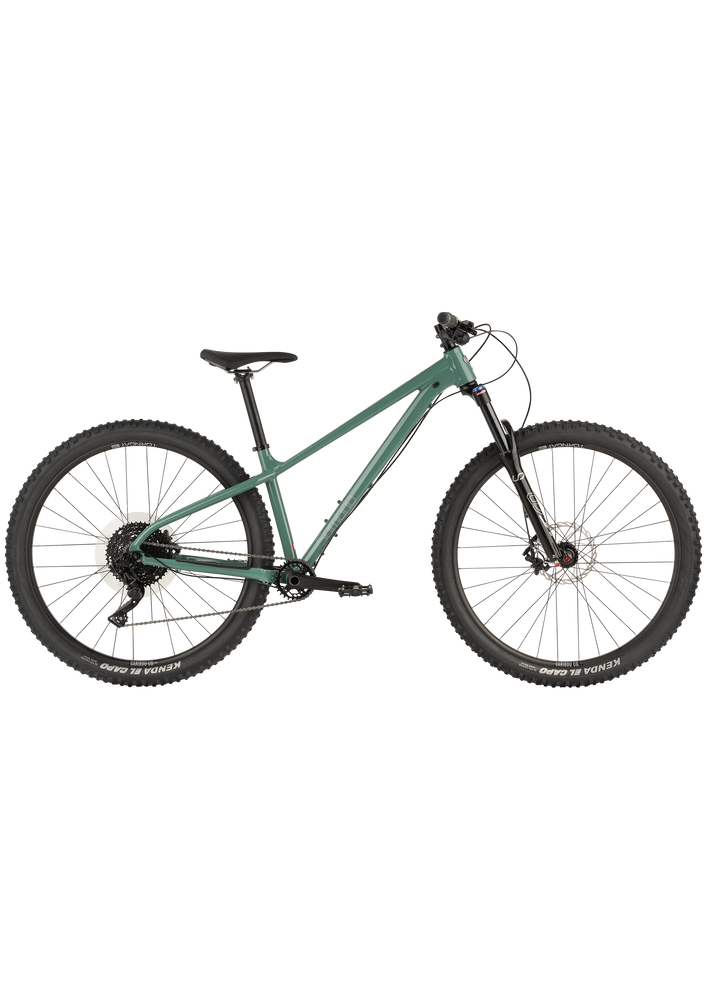

Sombrio Cartel - 2022 SOMBRIO SHOVEL 3 29" HARDTAILS BLUE GREY

DESCRIPTION

Taking heavy influence from The North Shore and the rigours of modern mountain biking - the Shovel is the cumulative result of what you need to get rolling from your first ride. A starting point for entry into the world of mountain biking. Designed to be easy to use, attainable and most of all - fun.

GEOMETRY

SPECS

• Frame: Shovel aluminum, disc, 10 x 141mm

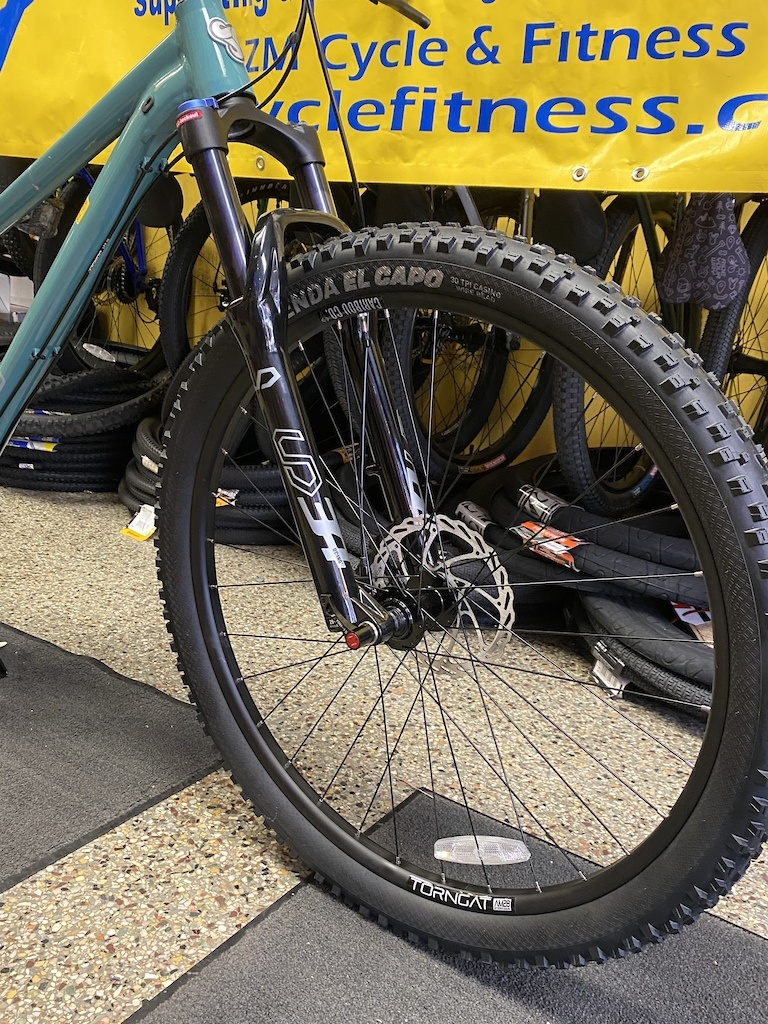

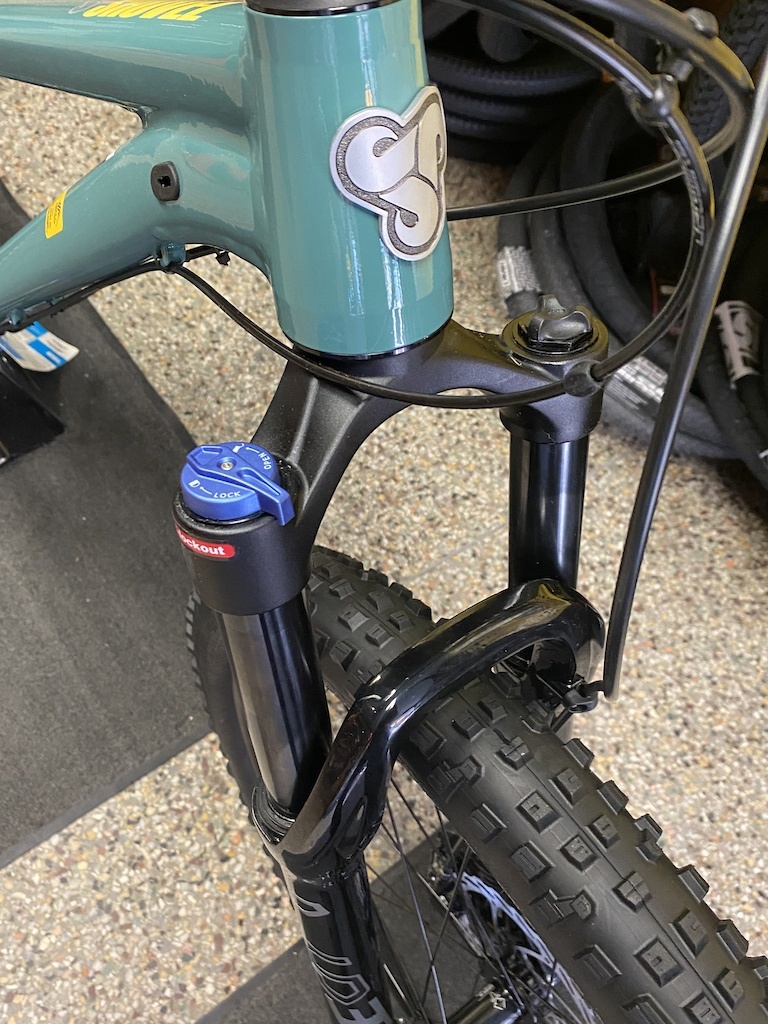

• Fork: Uding, UD34, 140mm travel, 15x110mm, coil, preload/ rebound adjustable
• Wheels: AM28-29/ Caribou co. disc hubs
• Shift levers: Microshift, Advent
• Rear derailleur: MicroSHIFT Advent, w/clutch, 9-speed

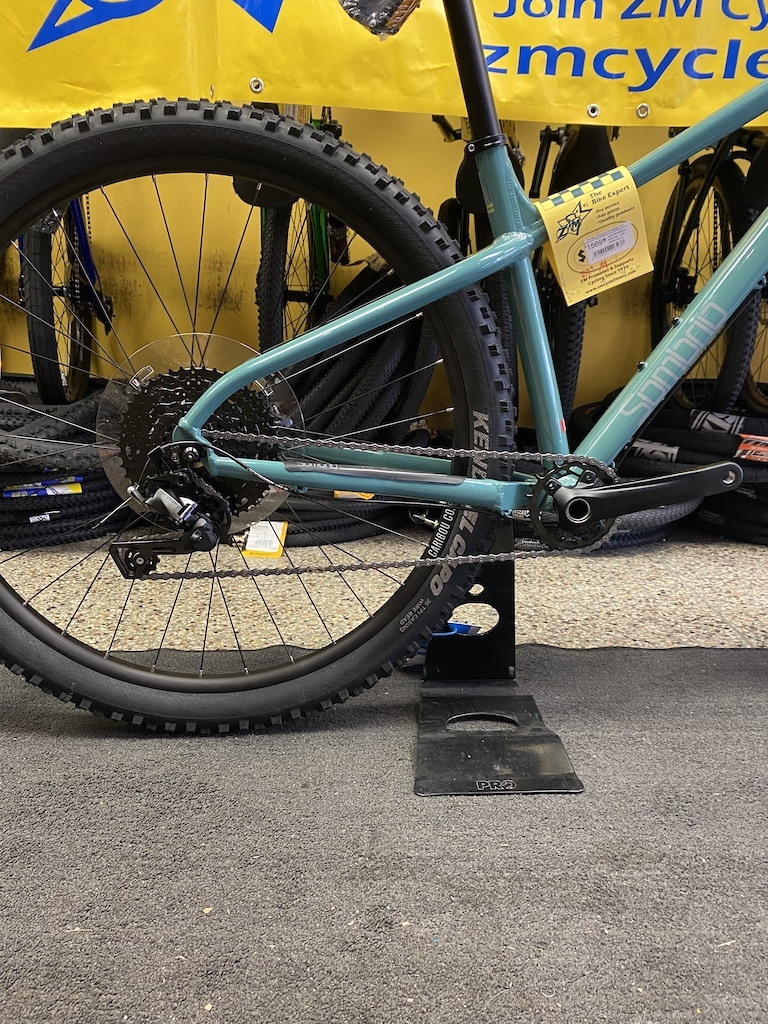

• Crankset: PW, Narrow wide 28T
• Bottom bracket: PW, external bearing
• Cassette: Microshift , 11-46T, 9-speed
• Chain: KMC Z9

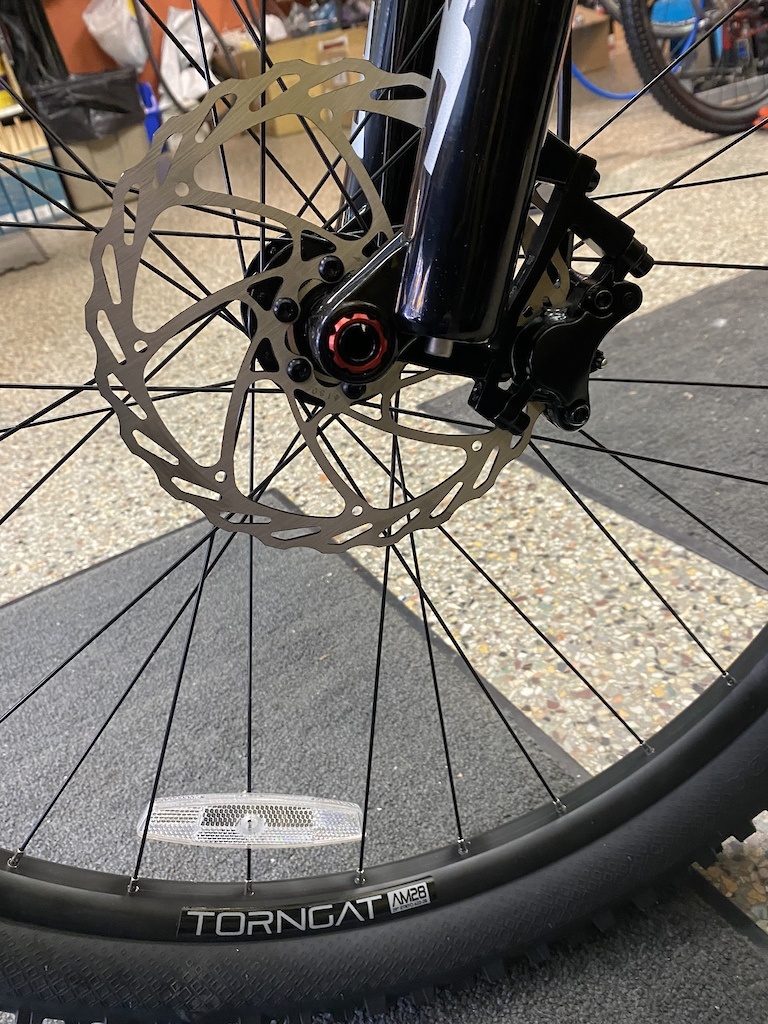

• Front hub: Caribou co., 15 x 110 mm, T15, 6-bolts disc

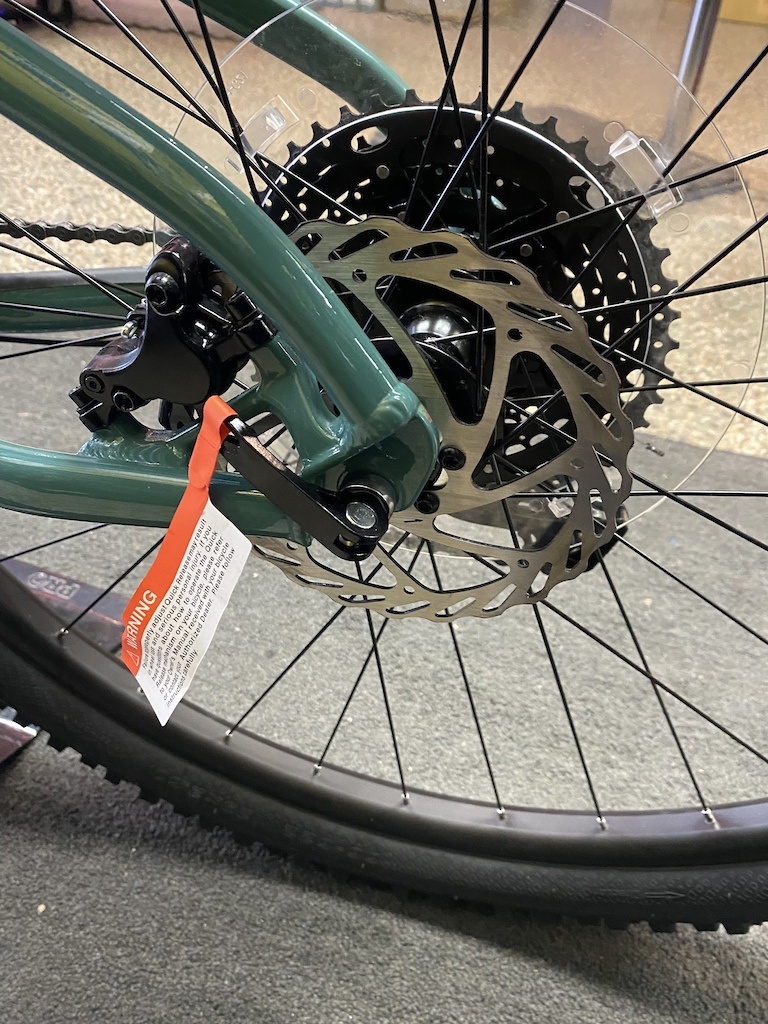

• Rear hub: Caribou co., 10 x 141 mm, cassette, 6-bolts disc
• Rims: Torngat AM28-29 alloy disc, 32h
• Spokes: 14 g, Stainless steel
• Tires: Kenda, El Capo, 29 x 2.6, 30TPI
• Saddle: Sombrio
• Seat post: Sombrio, Ø31.6 mm

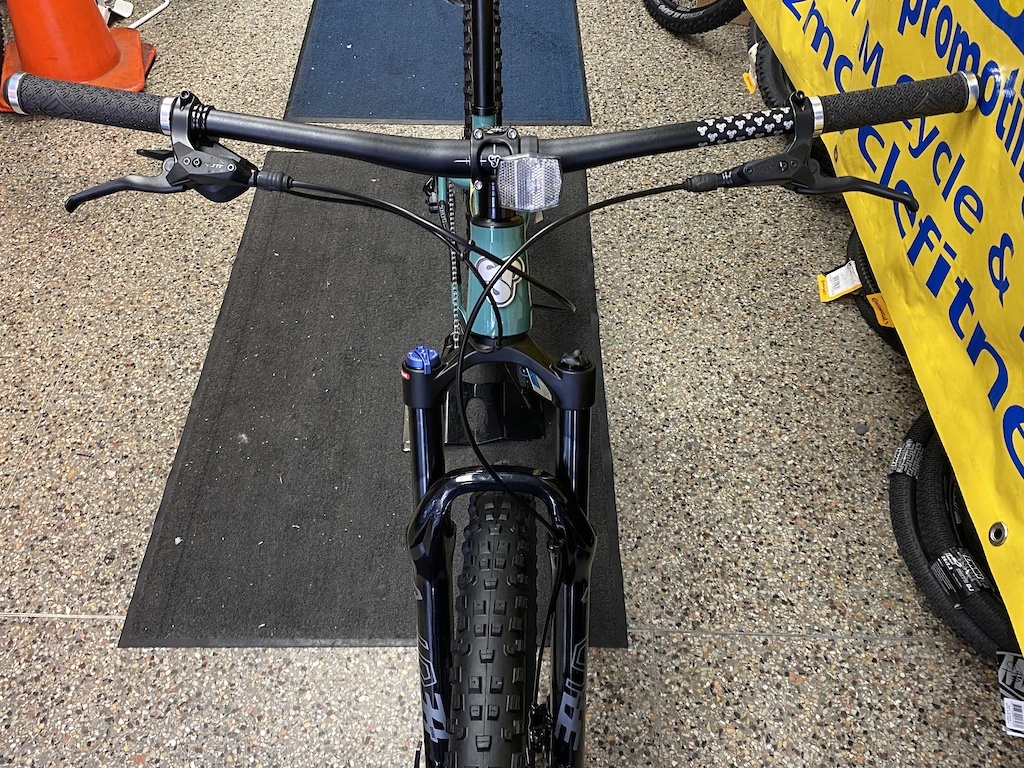

• Handlebar: Sombrio 15mm rise, Ø31.8mm, 785 mm
• Grips: Velo, lock-on
• Stem: Sombrio, 45mm,  7˚
• Headset: Neco, 1 1/8''-1 1/2"
• Brake levers: Jieke
• Brakes: Jieke Y-2, hydraulic disc
• Rotors: 180/160mm, 6-bolts
• Pedals: Platform
