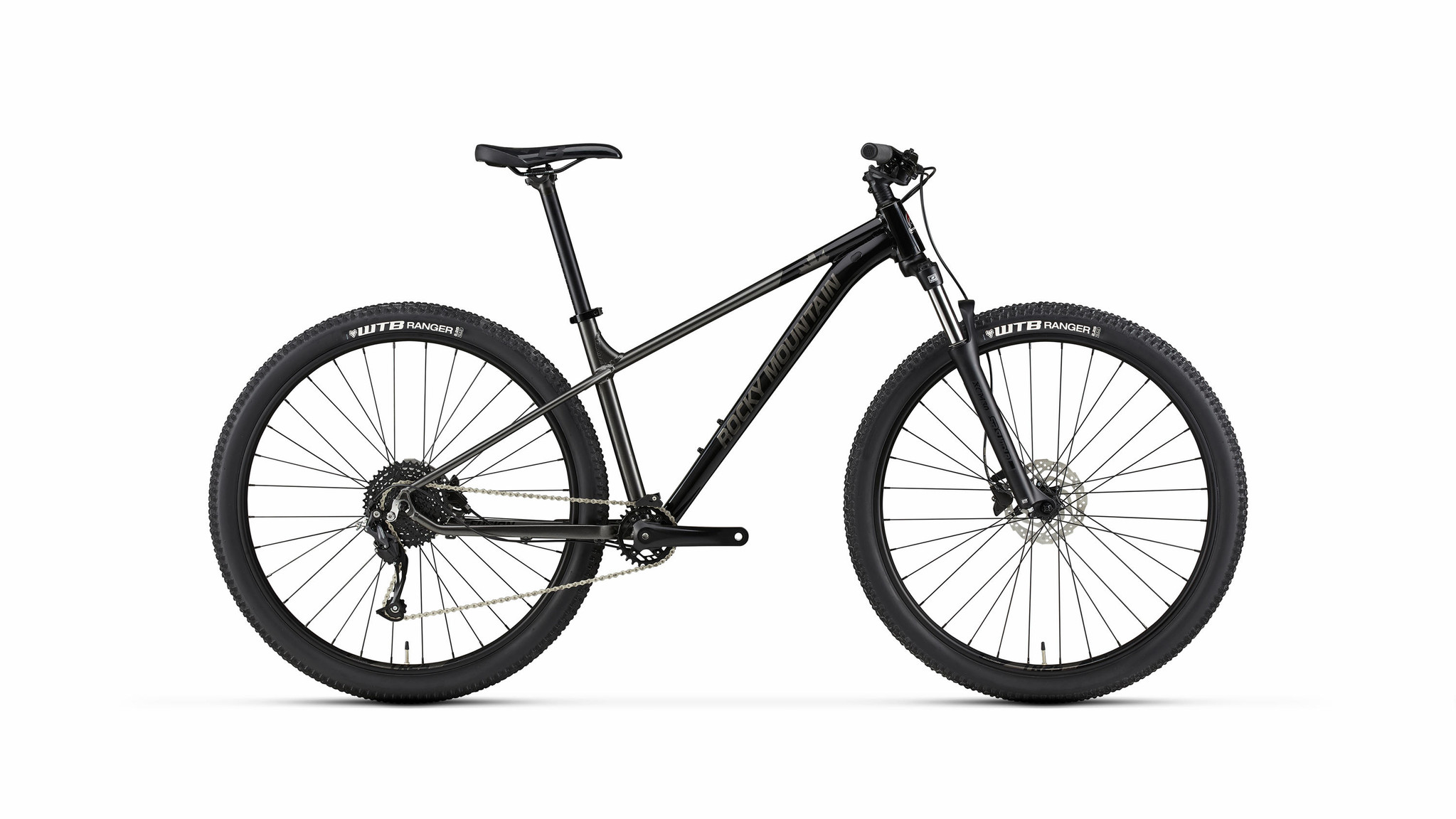

The Fusion’s geometry has been optimized to provide you with the best possible experience when heading out for a ride. We’ve updated the geometry to reflect the needs of a true ”downcountry” rider, including 29” wheels, a low standover height, longer reach, and a slacker head tube angle. With features like 100 mm of front travel, internal cable routing, and a 1x drivetrain, the Fusion sits at the top as our best all-around hardtail.
SPECS:
-
- Frame Rocky Mountain 6061 Alloy. Threaded BB. Zero Stack Tapered Headtube
- Sizes SM-MD-LG-XL
- Fork Suntour XCM 100mm
- Front Travel 100mm
- Headset FSA Orbit NO.57B-1 | 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | Reducer Crown Race
- Stem Rocky Mountain XC | 7° Rise | All Sizes = 50mm
- Handlebar Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8mm Clamp
- Grips Rocky Mountain Lock On Light
- Brakes Shimano MT200 2 Piston| Organic Pads | Shimano RT10 160mm F Rotor | Shimano RT10 160mm R Rotor
- Shifters MicroShift Xpress Plus 9spd
- Rear Derailleur MicroShift Advent 1x9 With Clutch
- Cranks & Chainrings Rocky Mountain Microdrive 28T
-
- Bottom Bracket Sealed Cartridge Bearing
- Cassette MicroShift CS-H093 11-42T
- Chain KMC X9
- Pedals Nylon Platform
- Front Hub Shimano TX505
- Rear Hub Shimano TX505 QR
- Spokes 2.0 Stainless
- Rims Rocky Mountain TR25 Tubeless | Tubeless Compatible - Tape | Valves | Sealant Not Incl
- Tires F: WTB Ranger Comp 29 x 2.25 // R: WTB Ranger Comp 29 x 2.25
- Seatpost Rocky Mountain 30.9mm
- Saddle WTB Volt | Steel Rails | 142mm Width
