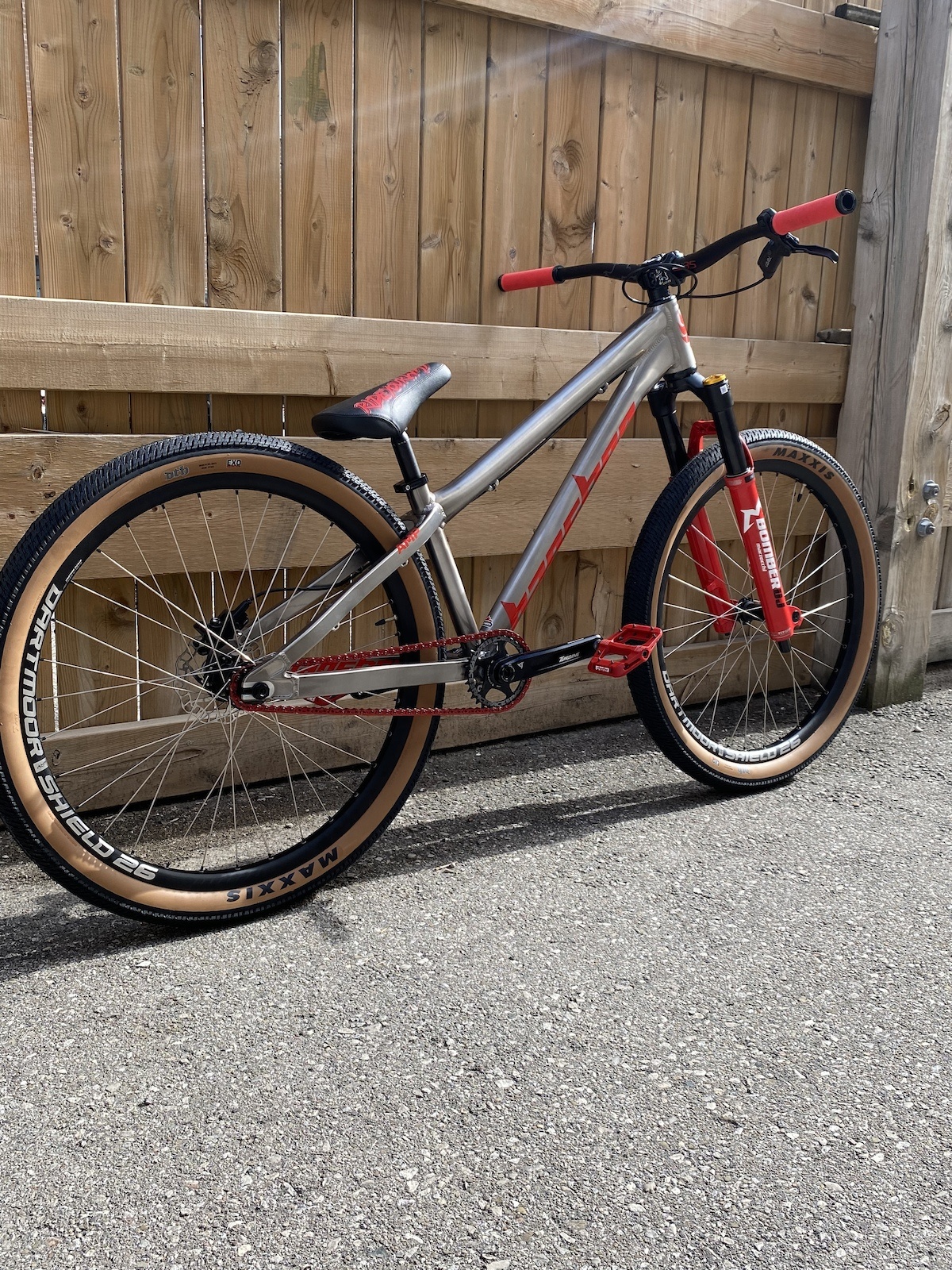

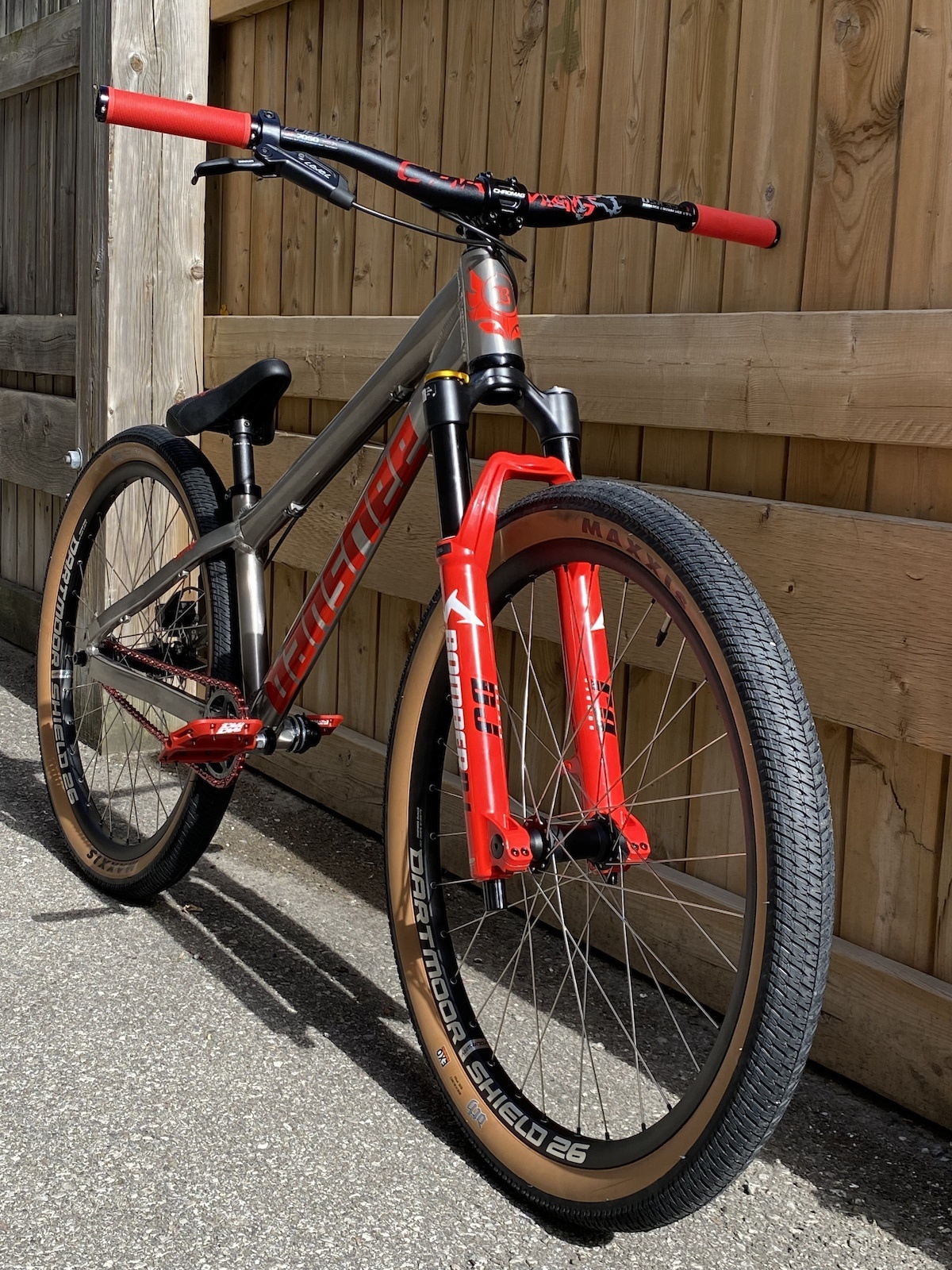

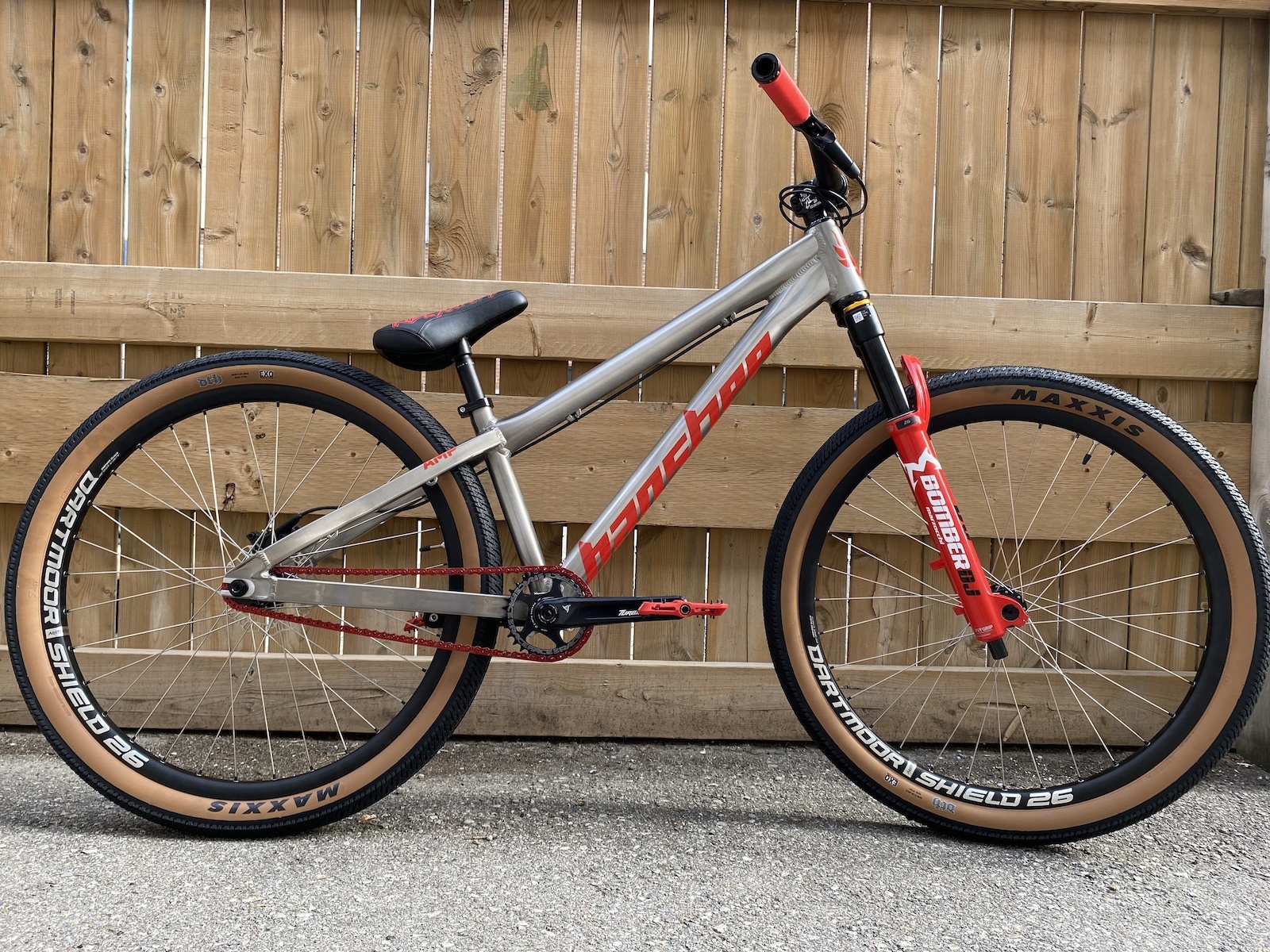

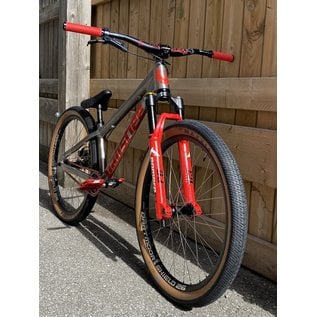

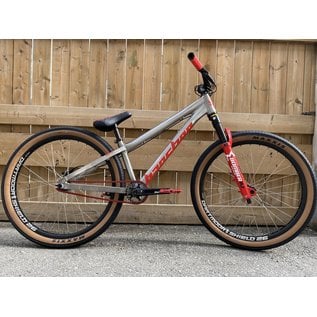

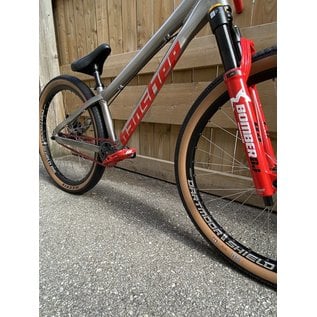

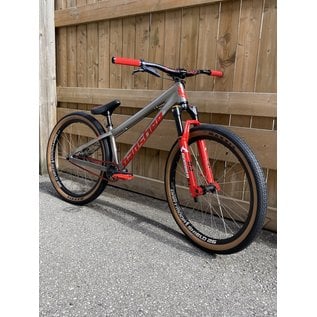

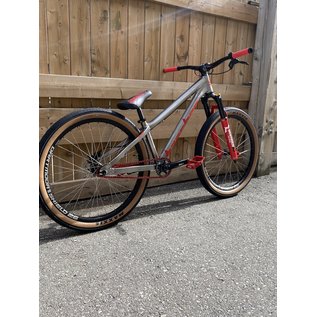

2022 Banshee Amp Custom Build
Frame; Banshee Amp
Wheel-set: Custom Dartmoor Single speed
Cockpit Chromag Bar & Stem
Saddle; Dartmoor Fatty
Brakes; Sram Level, Ashima 140 Rotor
Drivetrain; Race Face Turbine Cranks w/ Cinch 30T Ring
Gear Ratio; 2.3
| Article number: | BANSHEE CUSTOM |
| Quantity: | 1 |
DETAILED DESCRIPTION
We Built up this Amazing Jaw Dropping frame worthy of Big Sends, Sick Combos, & Podium Wins. Built with noting but the best, All the parts alone are valued at over 3750$ its easy to see why. From its Lightweight Stunning Frame to its Joyride proven fork, To its Bomb Proof Matching wheels there is noting she cant take.....
The Frame: Banshee Amp - Nothing else comes close
It is super low and aggressive, gives you crazy pop off lips and rails round berms due to frame stiffness.The ultra-low standover, light and tight package makes basic tricks like no foot cans, tail whips and 3's a breeze.To become a true explorer of the limits of what is possible you need confidence, the Amp provides ultimate confidence!

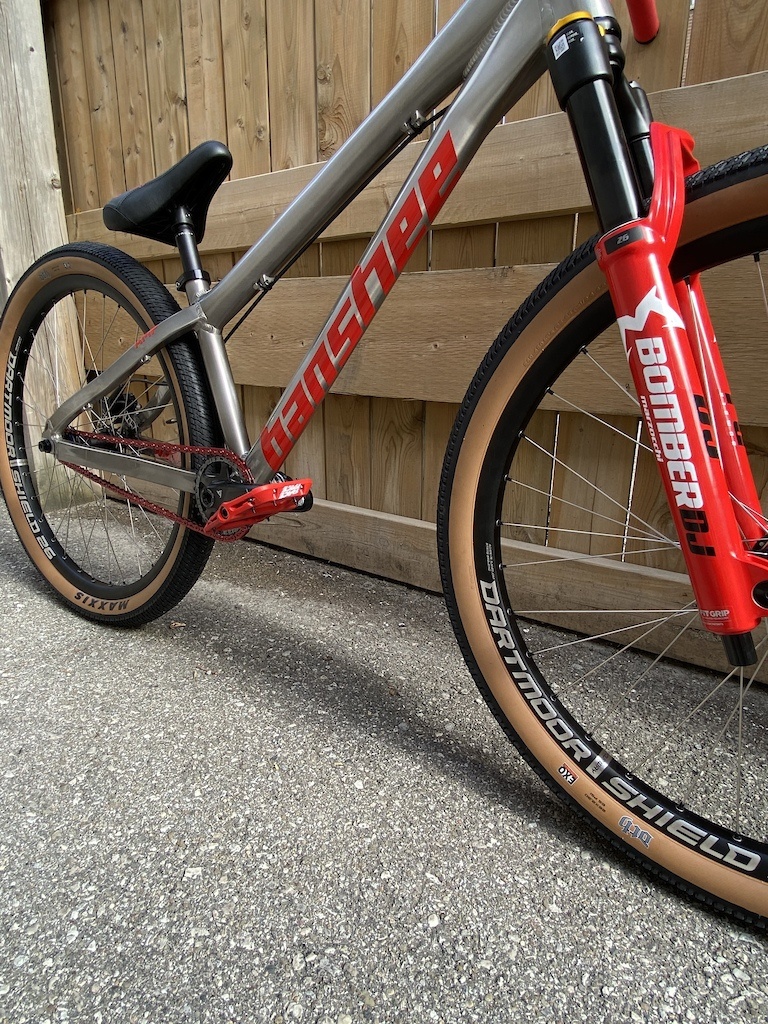

The Fork: Marzocchi Bomber DJ 100mm Red
The Joyride Proven Bomber DJ is back in the mix with a whole new bag of tricks. Sharing the same 36mm chassis as its big brother, the Z1, the DJ comes in a dedicated 26” wheel configuration. Featuring a 20x110mm axle, the DJ is designed for maximum stiffness and offers seamless compatibility with existing DJ and DH front hub spacing standard.

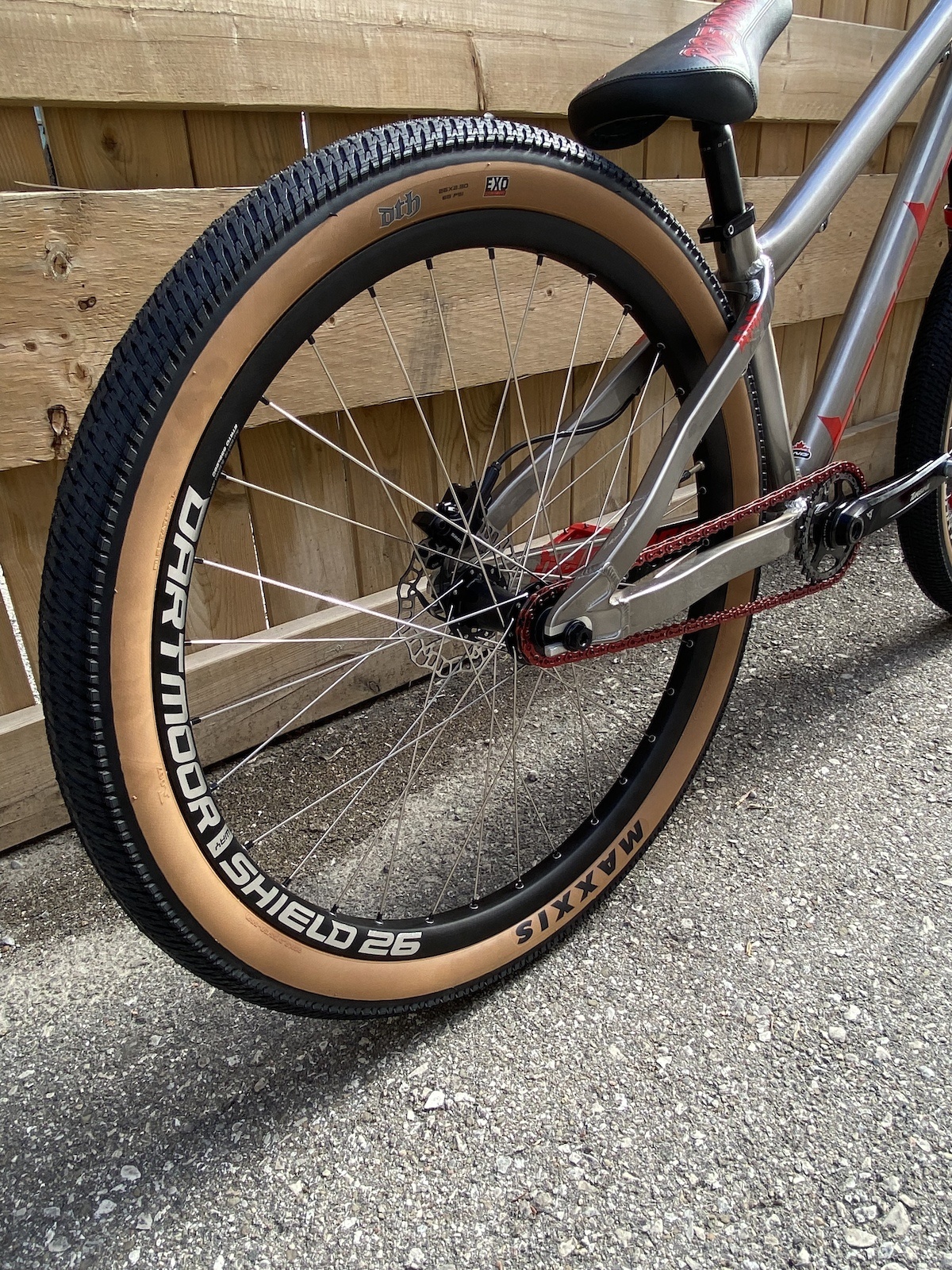

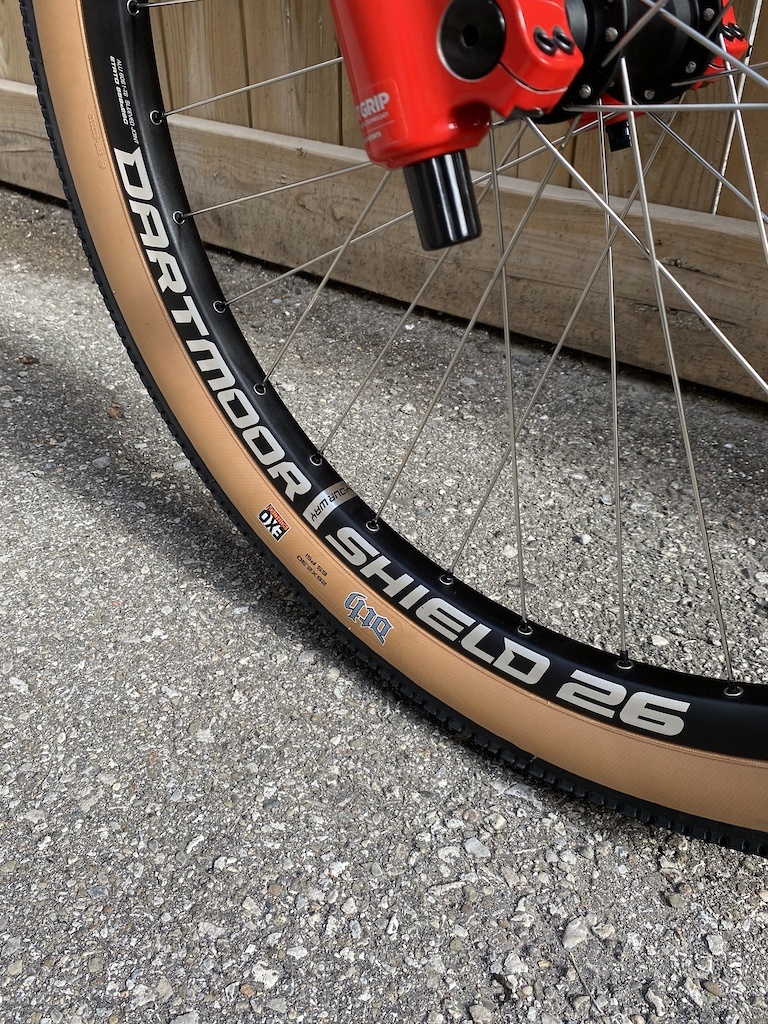

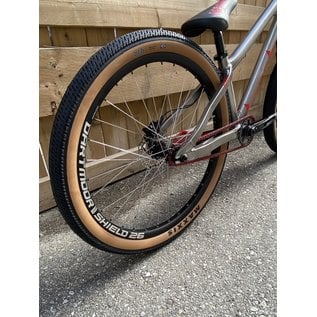

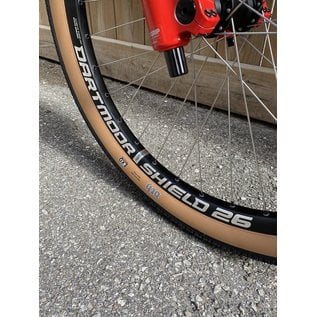

The Wheelset: Custom Dartmoor Shield Chrome Single Speed
Super strong 26” wheels based on our high-end Shield sleeved joint rims and Reel Pro hubs. Perfect for Dirt Jumping, Pumptrack, and Skatepark riding!
The rear wheel is equipped with Reel Pro Singlespeed v.2 hub with 10T Cr-Mo driver with 6 pawls and 72 engagement points. Smooth rotation provided by 4 sealed bearings and the hub is tightened in the frame by the 3/8" hollow Cr-Mo bolts. All bearings in hubs are filled with waterproof synthetic Mobil grease. Wheels come laced with DT Swiss Silver Brass Nipples & Silver DT Swiss Champion grade spokes.

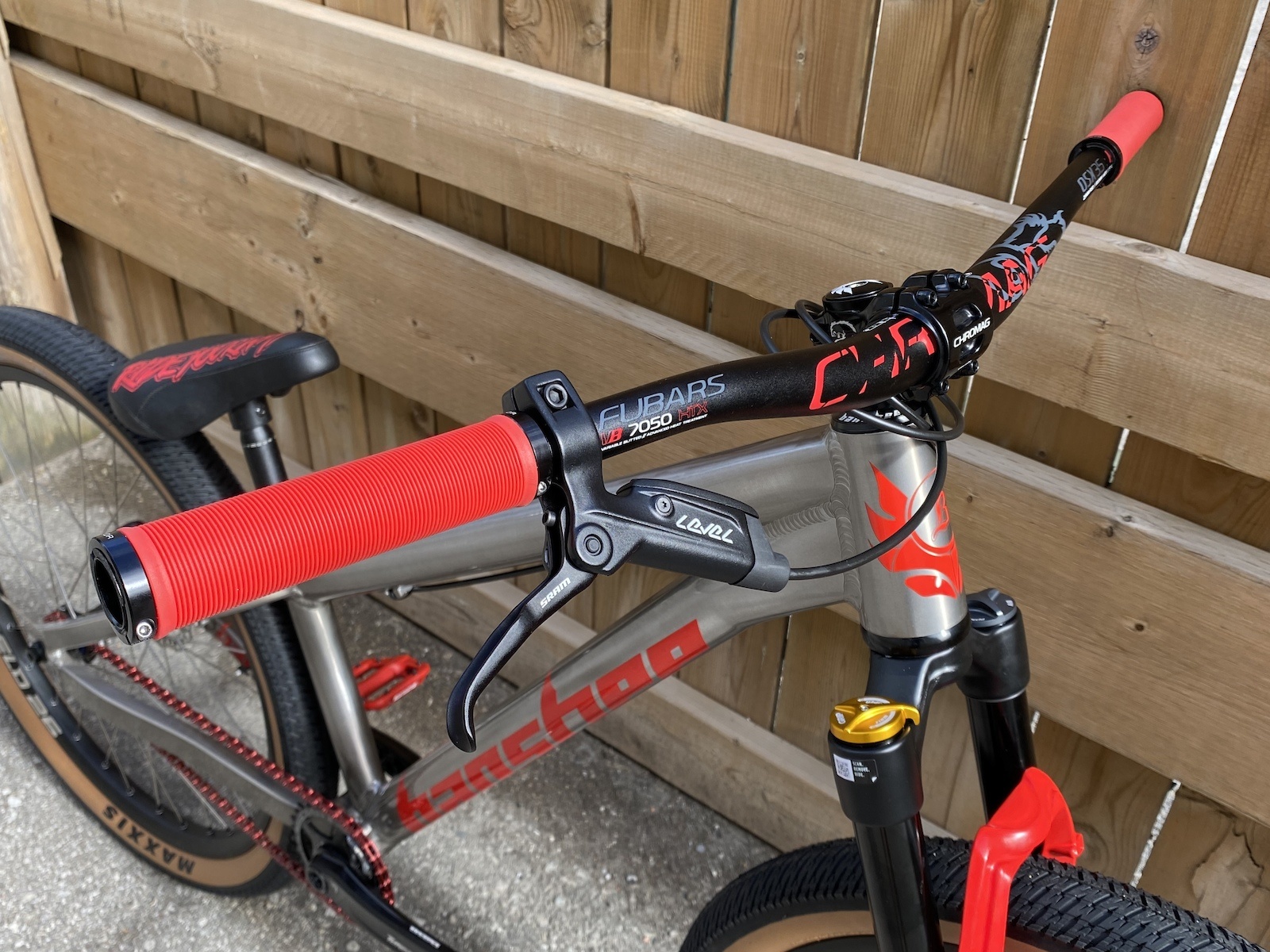

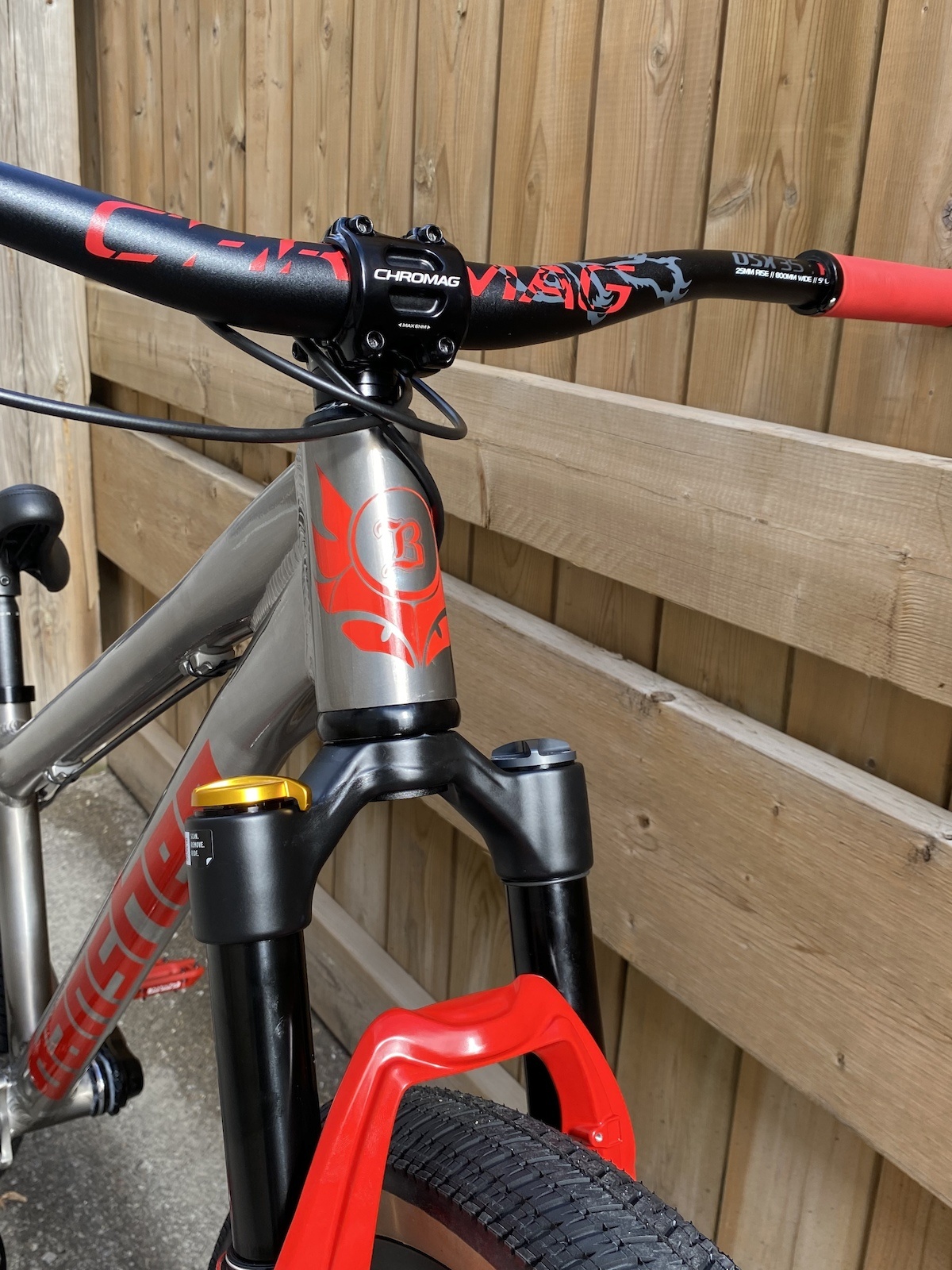

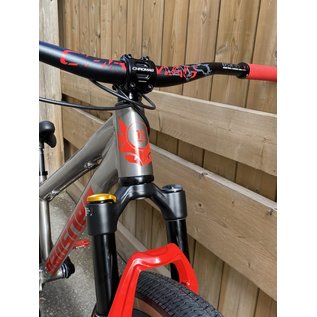

The Bar: Chromag OSX 35mm Red
The new OSX35 features a variable butted profile increasing strength where needed, through the bends, while adding compliance for a better feel and fatigue life several times the current accepted standard. It’s the bar of choice for riders at high performance levels who are fitting to a 35mm interface and need the highest quality and performance from an alloy bar.
The Stem: Chromag HiFi 35 Stem Black
The HiFi 35mm Stem is a 3D Forged Stem. Using premium 6061 Alloy Featuring Supple and Smooth Contours while still offering uncompromising strength at an unbeatable value. While still being under the 200G for a 35mm Length stem. The HiFi 35 is also manufactured with precision CNC milling for its steer tube clamp and face plate threads in which M6x20mm steel hardware is used.
The Grips: Dartmoor Race Lock On Grips Red
These classic lightweight MTB grips with a double lock-on alu clamps and mushroom pattern. Made of durable Kraton.

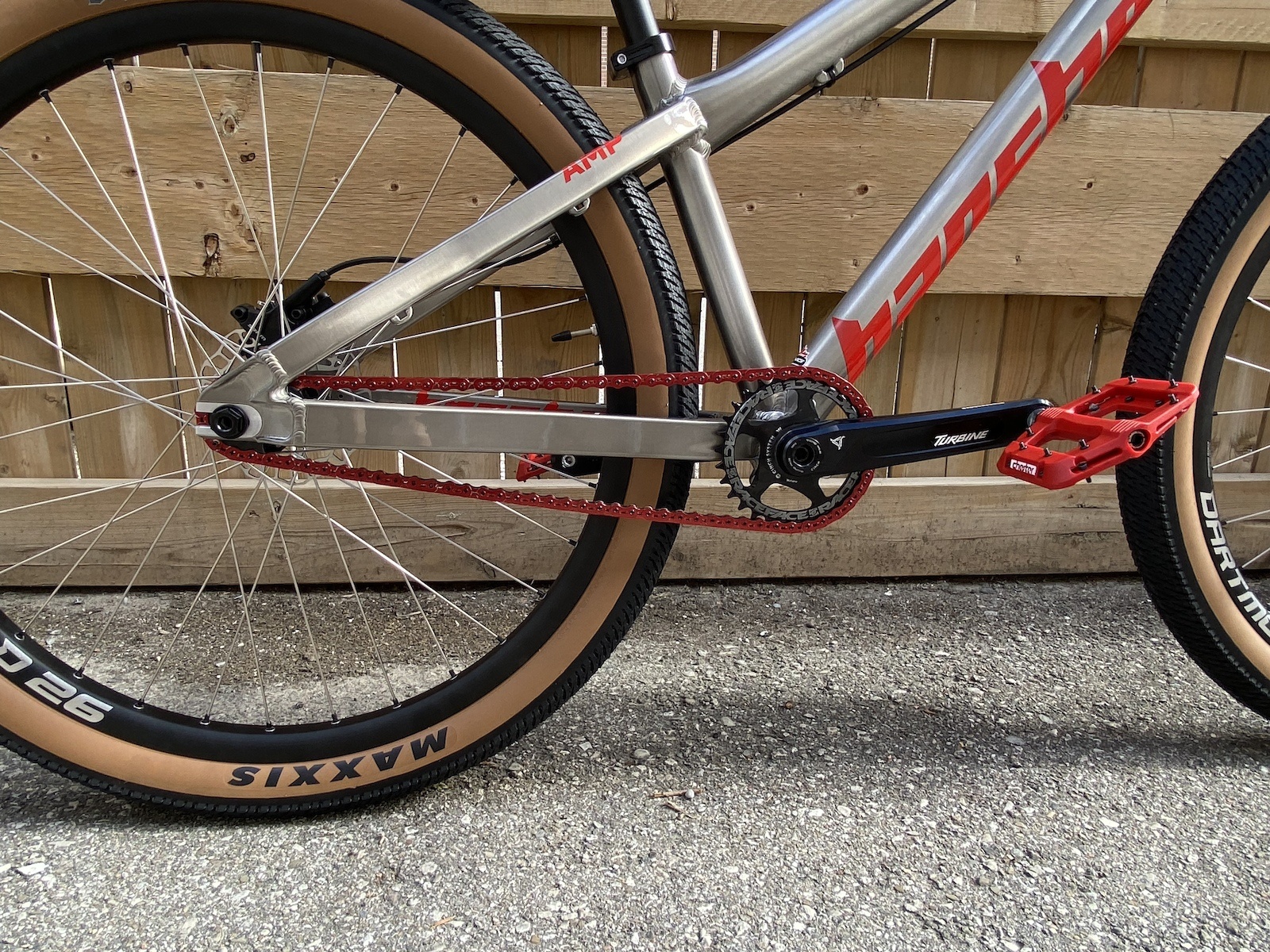

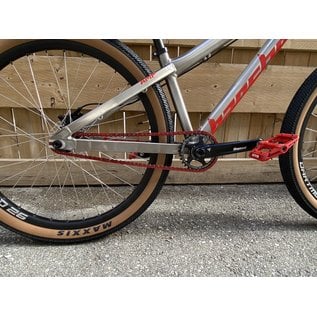

The Cranks: Race Face Turbine Alloy 175mm with 30T Cinch Chain Ring
Work Hard, Play Hard - The sickest aluminum crank on the trails, thirty years running. The Turbine delivers an incredibly stiff and responsive ride and tons of versatility thanks to proven Race Face tech. Go ahead, get rowdy–Turbine won't let you down. These Cranks are also paired with a Race Face 30T Cinch Chain Ring offering a total ratio of. 2.30 Thanks to its 13T driver on the rear hub
The Chain: Dartmoor Core 1/8" Single speed Red
Lightweight nickel-plated chain with hollow pins and drilled side plates. Masterlink included. Nanocoated Red 1/8" 226g 102 links

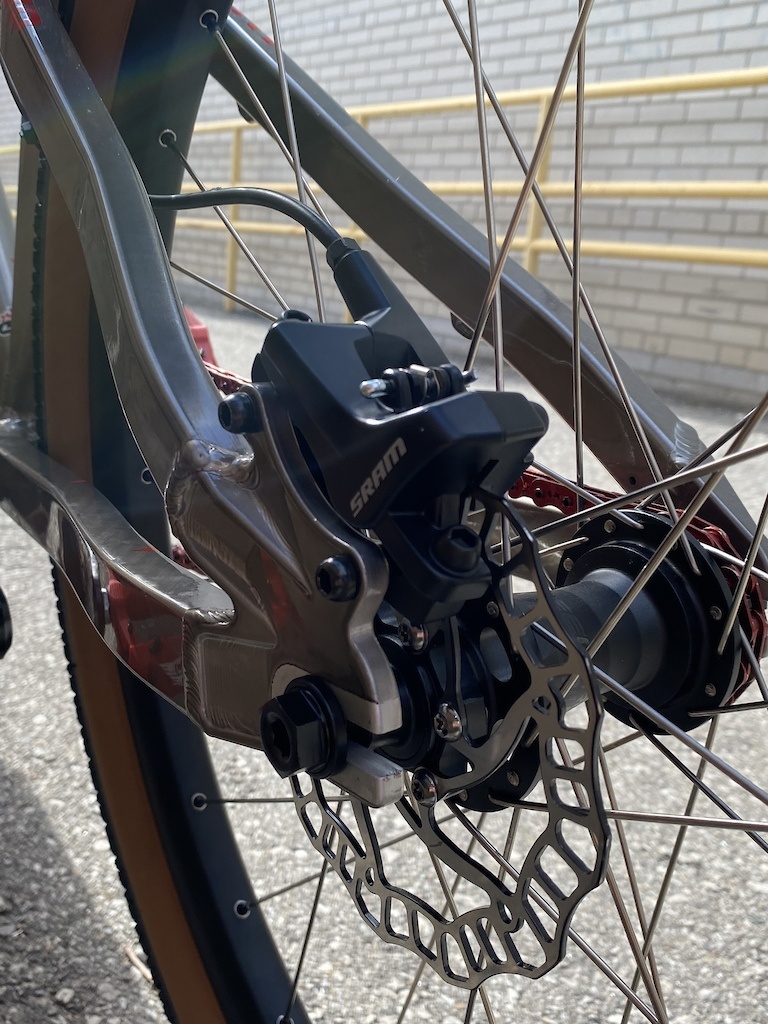

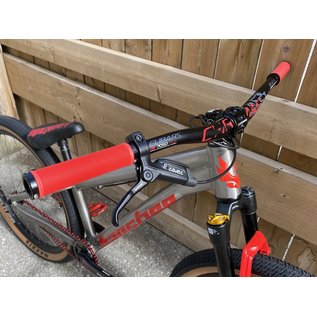

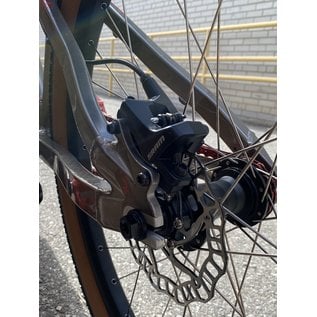

The Brakes: Sram Level Rear Hydro & Ashima Nano 140 Rotor
The SRAM Level brake levels the playing field with power and reliability stuffed into a lightweight package. This is a no-nonsense performer, but don't let its understated disposition fool you - Level gives you the art of braking in minimalist form.
The Ashima Nano 140mm Rotor One of the lightest disc rotors on the market. only 68g Made of stainless steel. High abrasion and temperature resistance. Special design provides fast heat dissipation.
Frame: Banshee Amp Long Red Decals 899.99
Intended Use: DJ / Skate Park / DS / 4X
Fork Travel range: 80-140mm
Wheel size: max 26x2.3”
Sizes: Long
Frame material: 7005 T6
Weight: 2.0kg (4.4Lbs) Frame including axle and seat post clamp
Fork: Marzocchi Bomber DJ 979.99
Travel: 100mm travel
Damping: Grip Damper
Steerer: 1.5 Tapered steerer
Axle: 20 x110 non-boost or 15 x 100
Wheel: 26" Wheel Optimized
Offset: 37mm
Weight: 2,095 grams
Wheelset Dartmoor Wheelset Shield 649.99
Weight Front 1020g Rear 1110g
Material Al-6061-T6 Front Hub Dartmoor Reel 15/20mm
Rear Hub Dartmoor Reel Singlespeed Pro 13t Driver
Spokes DT Swiss Silver Spokes
Nipples DT Swiss Silver Nipples
Rims Dartmoor Shield Mirror Stickers
Tires Maxxis DTH 2.25 Tan Wall Folding x 2 159.98
| 26X2.30 | 55/58-559 | 60 | FOLDABLE | 650 | SINGLE | 65 | Skinwall | Tan Wall | URBAN |
Tubes 26" Continetial Presta Valve x2 29.98
Rim tape Zefal 22mm x2 13.98
Stem Chromag Hi Fi 35mm Black 129.99
Process // 3D Forging
Material // Premium 6061 Alloy
Lengths // 35/50mm
Rise // 0º
Clamp Size // 35mm
Stack Height // 38mm
Steerer // 1 1/8"
Weight // 203g (50mm)
Bars Chromag OSX 35mm Red 800mm 119.99
Material // Custom drawn 7000 series alloy
Width // 800mm (31.5”)
Clamp Size // 35mm
Rise // 25mm (1”) and 35mm (1.4")
Bend // 8°
Upsweep // 5°
Weight // 312g
Grips Dartmoor Race Grips Red 39.99
Cranks Race Face Turbine 175mm 219.99
| Chainline | 52mm - 136 Spindle |
| Includes | Pedal Washers (Chain Rings & Bottom Brackets sold separately) |
| Axle Material | 7050 Aluminum |
| Crank Arm Material | 7050 Aluminum |
| Material | 7050 Aluminum |
| Spindle Diameter (MM) | 30 |
| Weight | 622g |
| Weight Conditions | 170mm Arms, 32T Alloy Chain Ring |
Chainring Race Face Cinch 30T NW ring 89.99
| Compatible With | Cinch Direct Mount Cranks |
| Material | 7075 Aluminum |
| Ring Style | Direct Mount |
| Weight | 33g |
| Weight Conditions | 24T |
BB BSA 30 Raceface 79.99
| Bearing Style | Single Row |
| Color | Black |
| Shell Standard | BSA |
| Spindle Diameter (MM) | 30 |
| Weight | 87g |
| Weight Conditions | BSA 73mm |
Chain core 1/8" anod red 69.99
Brake SRAM Level 99.99
| Application (DB) | MTB |
|---|---|
| Brake type | Hydraulic |
| Color (DB) | Black |
| Blade material | Aluminum - Stamped |
| Orientation | L/F, R/R |
| Pad type (Disc) | Steel-backed organic |
| Bracket (Disc Brake) | Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I |
| Reach adjust | Tooled |
| Contact adjust | No |
| Hydraulic fluid | DOT 4 |
| Lever pivot | Bushing |
| Weight (g) | 430 |
| Weight Based On | Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET) |
Rotor Dartmoor Nano 140mm Silver 39.99
Brake mount 140 - 160mm19.99
Seat & Post Combo Dartmoor Fatty Red Combo 49.99
Seat post Shim 30.9 Shim 19.99

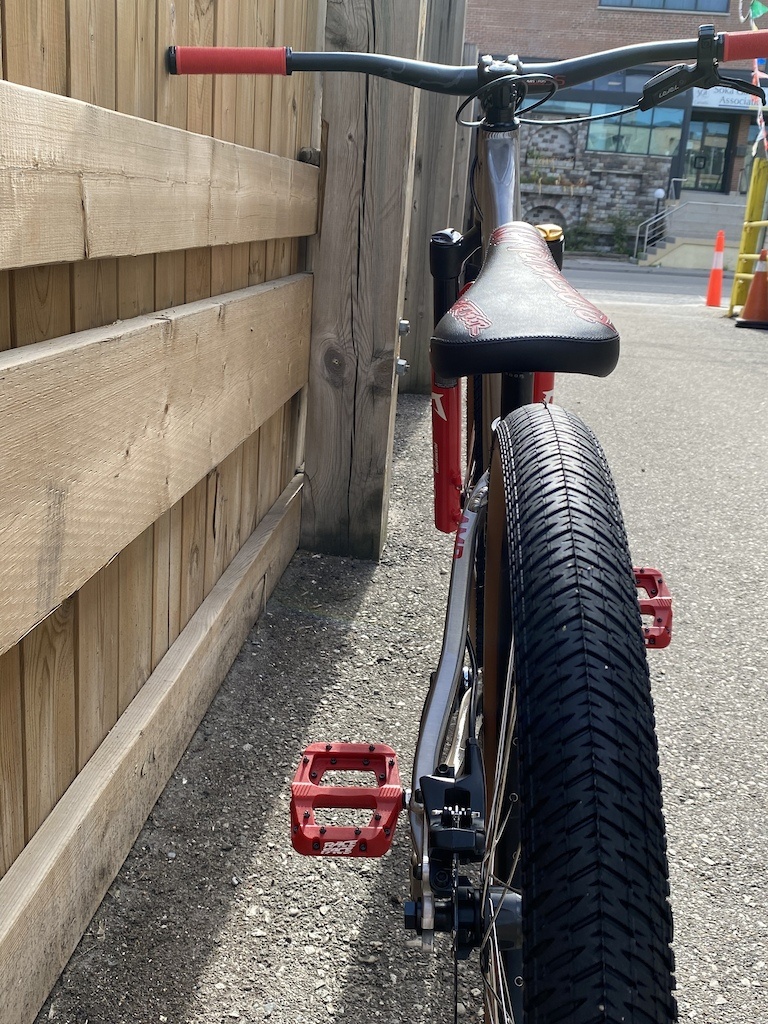

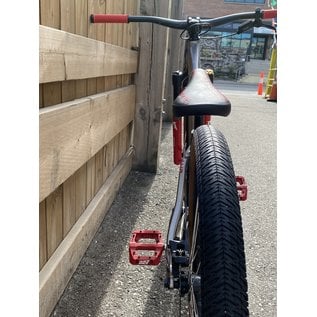

Pedals Not Included Only Featured in pictures (Red Race Face Chester) 74.99 additional purchased required
