| Article number: |
B0246MD1 |
| Quantity: |
2 |
DESCRIPTION

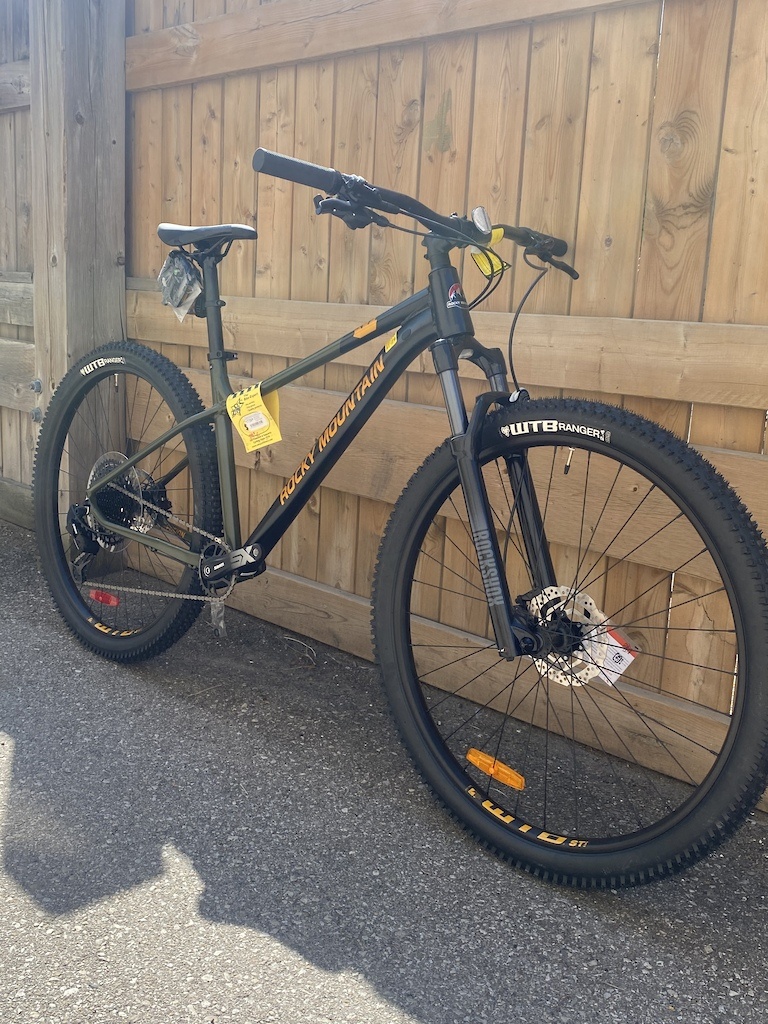

The Fusion is the perfect blend of efficiency, capability, and reliability on the trail. The Fusion’s responsive handling characteristics and comfortable geometry will help you mix up your ride from the pathway, to the trail, and onto the singletrack. The Fusion’s geometry has been optimized to provide you with the best possible experience when heading out for a ride. We’ve updated the geometry to reflect the needs of a true ”downcountry” rider, including 29” wheels, a low standover height, longer reach, and a slacker head tube angle. With features like 100 mm of front travel, internal cable routing, and a 1x drivetrain, the Fusion sits at the top as our best all-around hardtail.
GEOMETRY
| |
sm |
md |
lg |
xl |
| Top Tube Horizontal (mm) |
589 |
616 |
643 |
671 |
| Head Tube Angle (deg) |
66.5 |
66.5 |
66.5 |
66.5 |
| Head Tube Length (mm) |
95 |
100 |
110 |
120 |
| Seat Tube Angle (deg) |
74.5 |
74.5 |
74.5 |
74.5 |
| Seat Tube Length (mm) |
380 |
420 |
445 |
480 |
| Rear Centre (mm) |
445 |
445 |
445 |
445 |
| Bottom Bracket Drop (mm) |
60 |
60 |
60 |
60 |
| Reach (mm) |
425 |
450 |
475 |
500 |
| Stack (mm) |
593 |
598 |
607 |
616 |
| Standover Height (mm) |
763 |
776 |
786 |
801 |
| Wheelbase (mm) |
1153 |
1180 |
1209 |
1238 |
SPECS
-
Frame
Rocky Mountain 6061 Alloy. Threaded BB. Zero Stack Tapered Headtube Rear Triangle
-

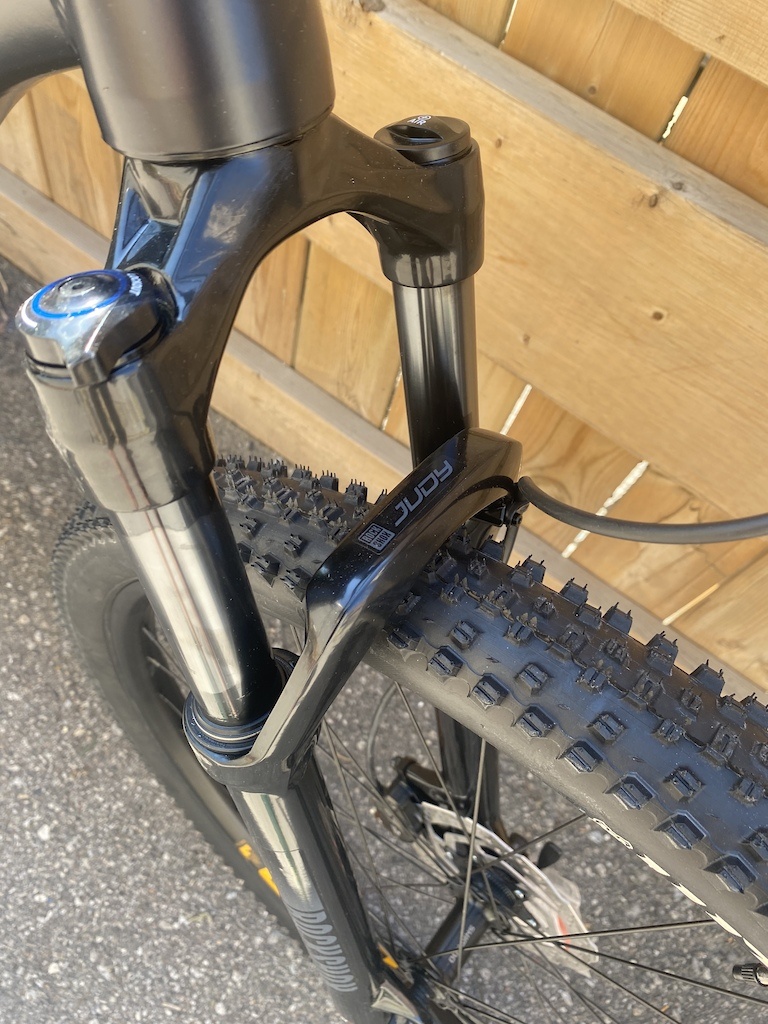

Fork
RockShox Judy Silver Fast Black TK Air 100mm
-
-
Headset
Rocky Mountain | Loose Ball Bearings | 1.5" Crown Race
-
Stem
Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50m
-

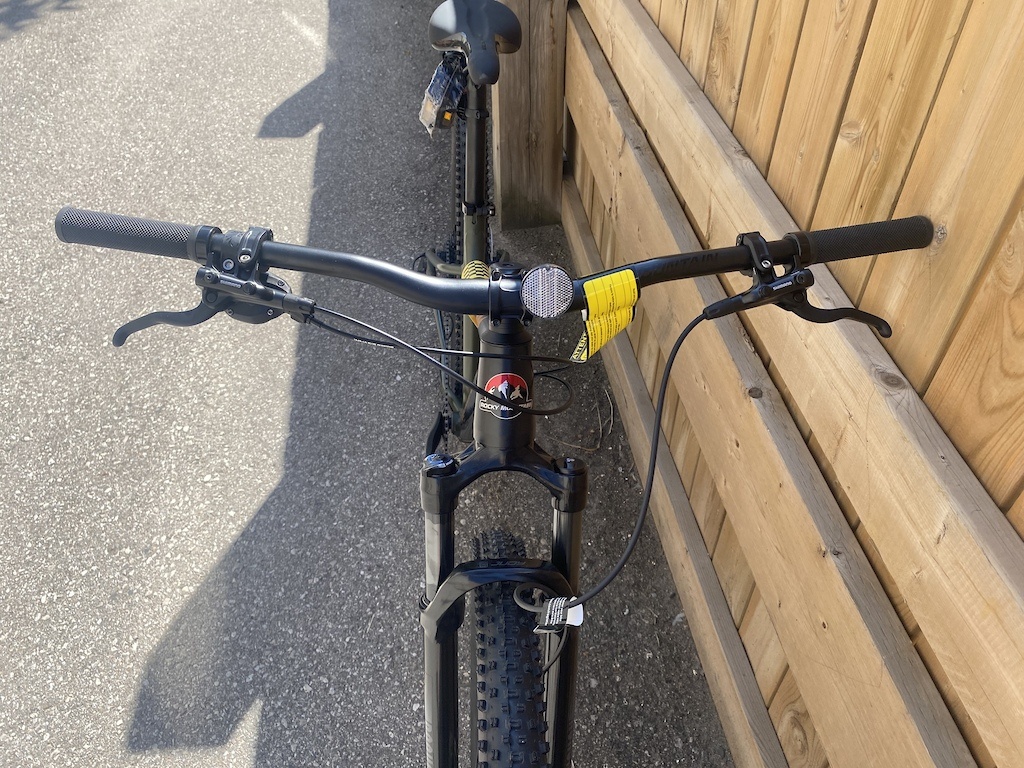

Handlebar
Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
-
Grips
Rocky Mountain Lock On Light
-

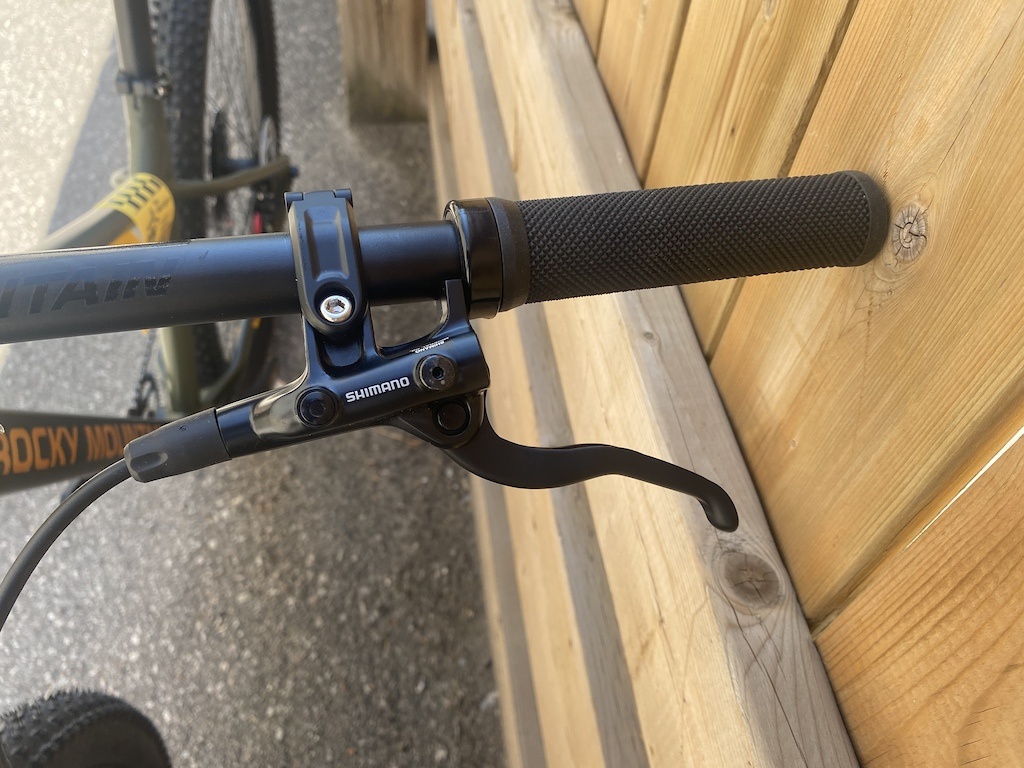

Brakes
Clarks M2 2 Piston | Resin Pads | F: Shimano RT10 160mm | R: Shimano RT10 160mm
-
-

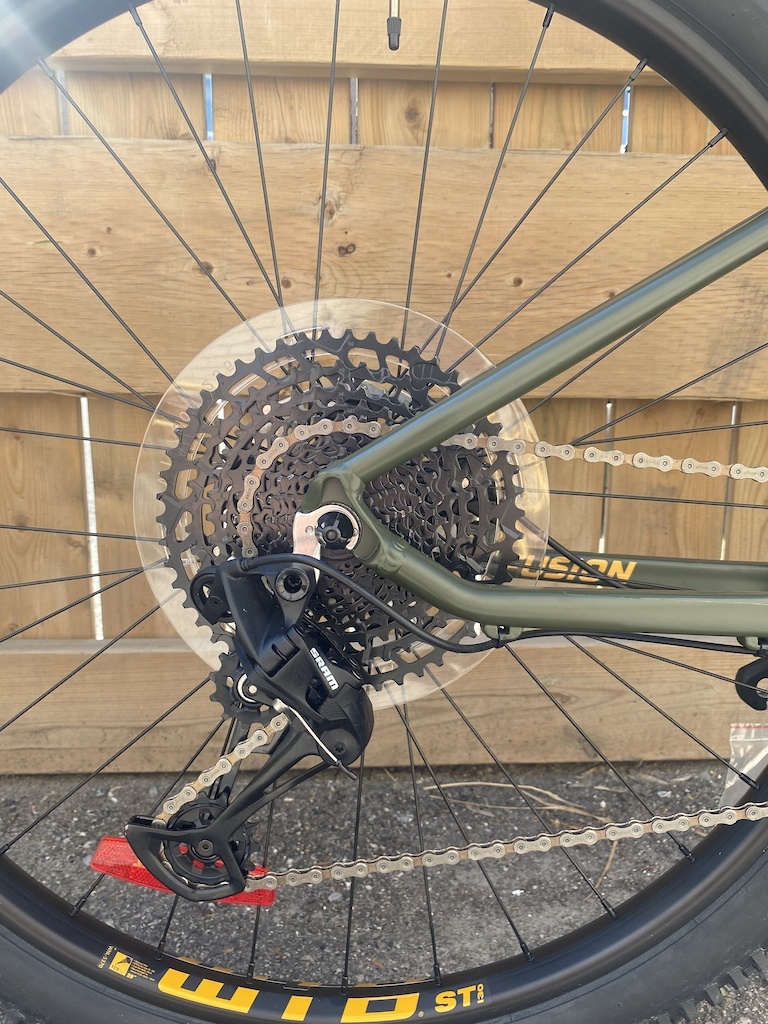

Rear Derailleur
Sram SX Eagle
-
Cranks & Chainring
Sram SX Eagle Powerspline | 30T |SM-MD 170mm Crank Length | LG-XL 175mm Crank Length
-
Bottom Bracket
Sram Powerspline
-
Cassette
Sram PG-1210 11-50T
-
-
Front Hub
Rocky Mountain QR
-
Rear Hub
Rocky Mountain QR
-
-
Rims
WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Compatible - Tape | Valves | Sealant Not Incl
-
Tires
F: WTB Ranger Comp 29 x 2.4 | R: WTB Ranger Comp 29 x 2.4
-
Seatpost
Rocky Mountain 30.9mm
-

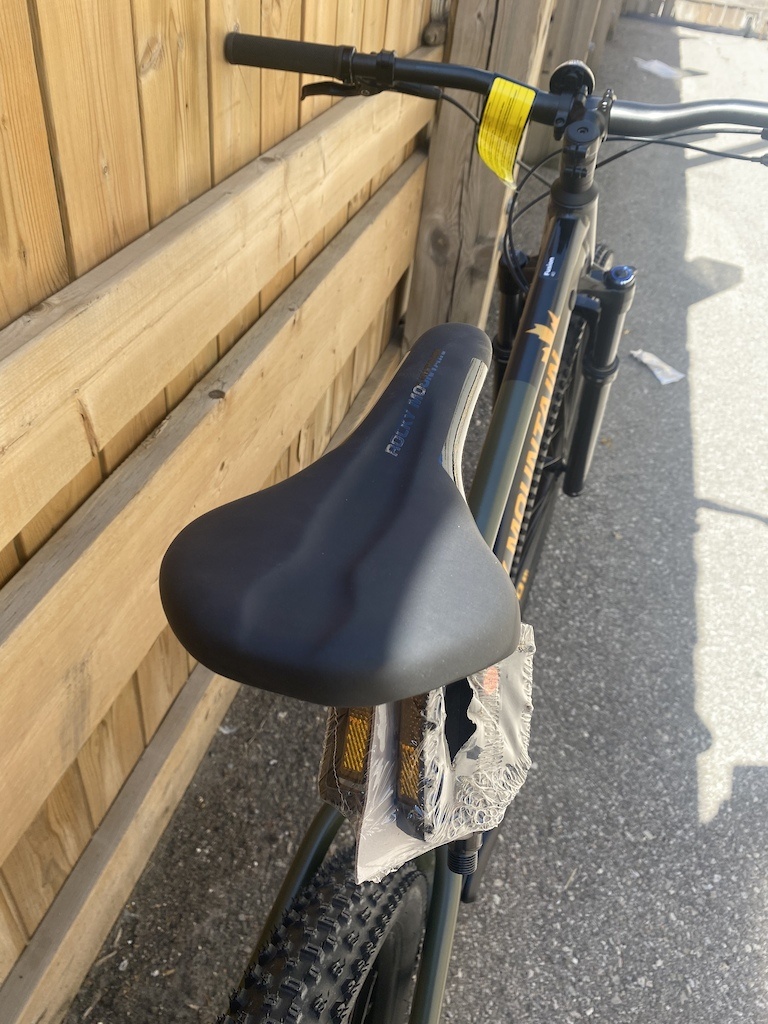

Saddle
Rocky Mountain 148 Steel
-
Weight
This information isn't available yet. We will update the weight of this model as soon as possible.
-
Notes
We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.
