GEOMETRY
kids
Top Tube Horizontal (mm) 470
Head Tube Angle (deg) 68
Head Tube Length (mm) 115
Seat Tube Angle (deg) 71
Seat Tube Length (mm) 255
Rear Centre (mm) 350
Bottom Bracket Drop (mm) 15
Reach (mm) 315
Stack (mm) 450
Standover Height (mm) 560
Wheelbase (mm) 883
Standover height is measured 200 mm in front of the bottom bracket.
SPECS
Frame
Rocky Mountain 6061 SL Alloy. Threaded BB. Zero Stack Headtube. 20" Kid's Geometry
Fork
Rocky Mountain Alloy JR
Headset
Rocky Mountain | Loose Ball Bearings | 1-1/8" Crown Race
Stem
Rocky Mountain 31.8 AM | 7° Rise | All Sizes = 40m

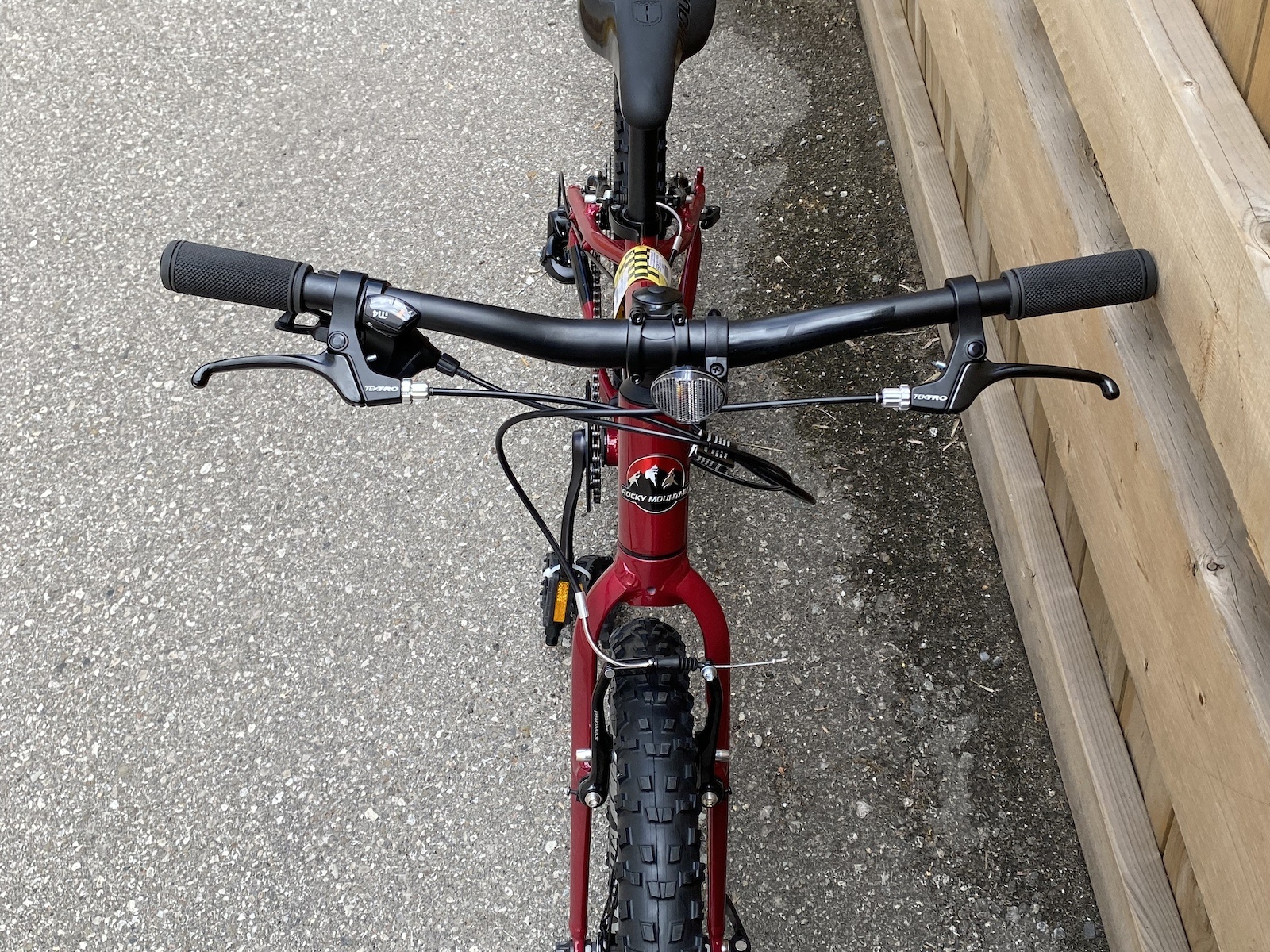

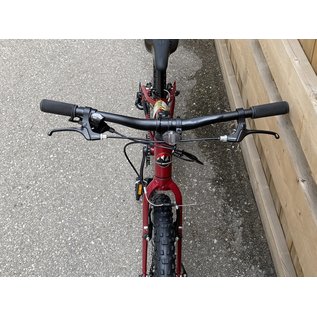

Handlebar
Rocky Mountain XC | 600mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
Rocky Mountain Slide On Kids
Brakes
V Brake TX-121 | F: | R:
Shifters
SunRace DLM403 Trigger

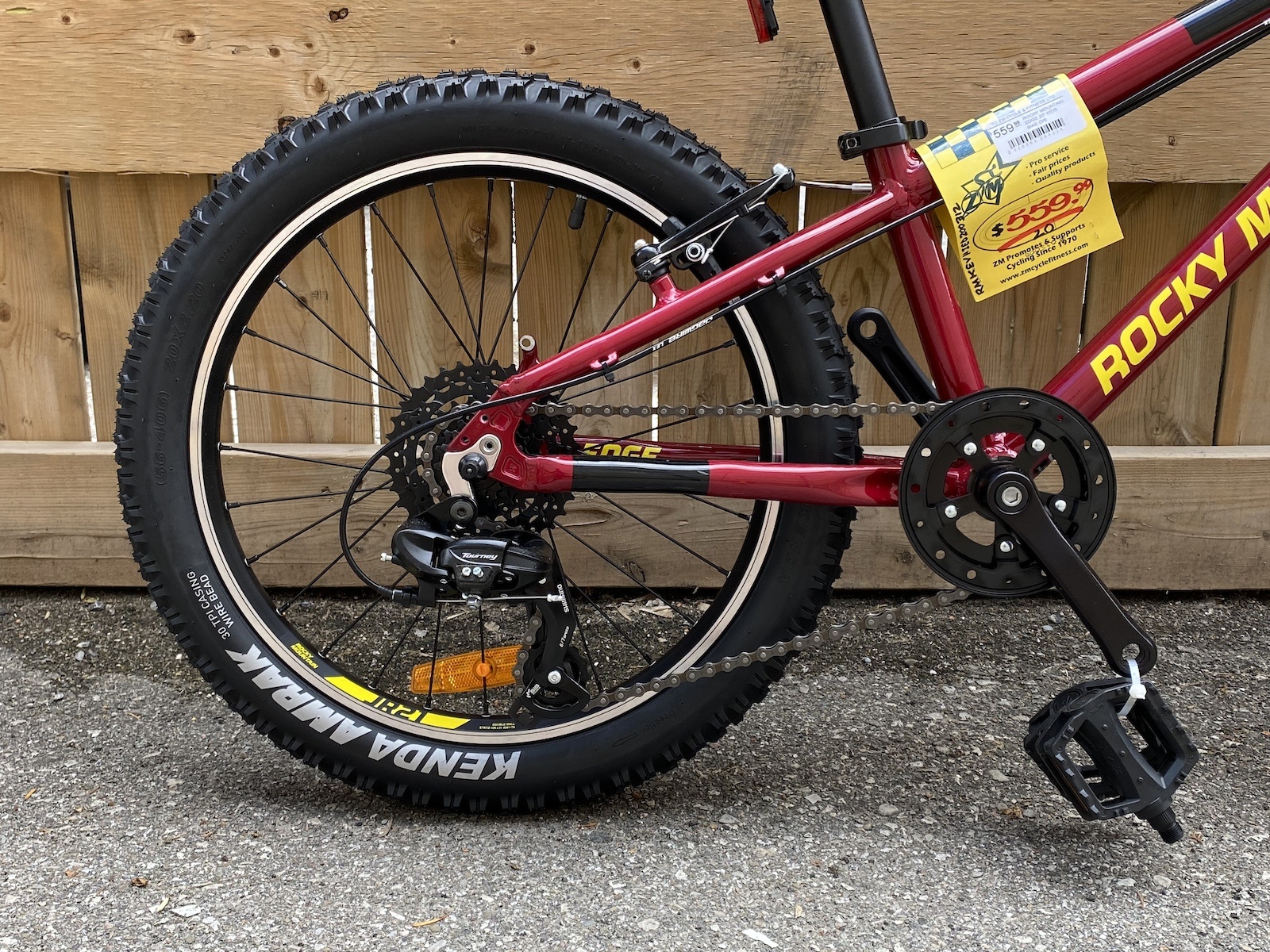

Rear Derailleur
Shimano TY300
Cranks & Chainring
Rocky Mountain Jr Alloy 3PC |28T | Crank Length: 127mm
Bottom Bracket
Sealed Cartridge Bearing
Cassette
SunRace CSM40 11-34T
Chain
KMC Z7
Front Hub
Rocky Mountain QR
Rear Hub
Rocky Mountain QR
Spokes
2.0 Stainless
Rims
Rocky Mountain JR21 | 28H |

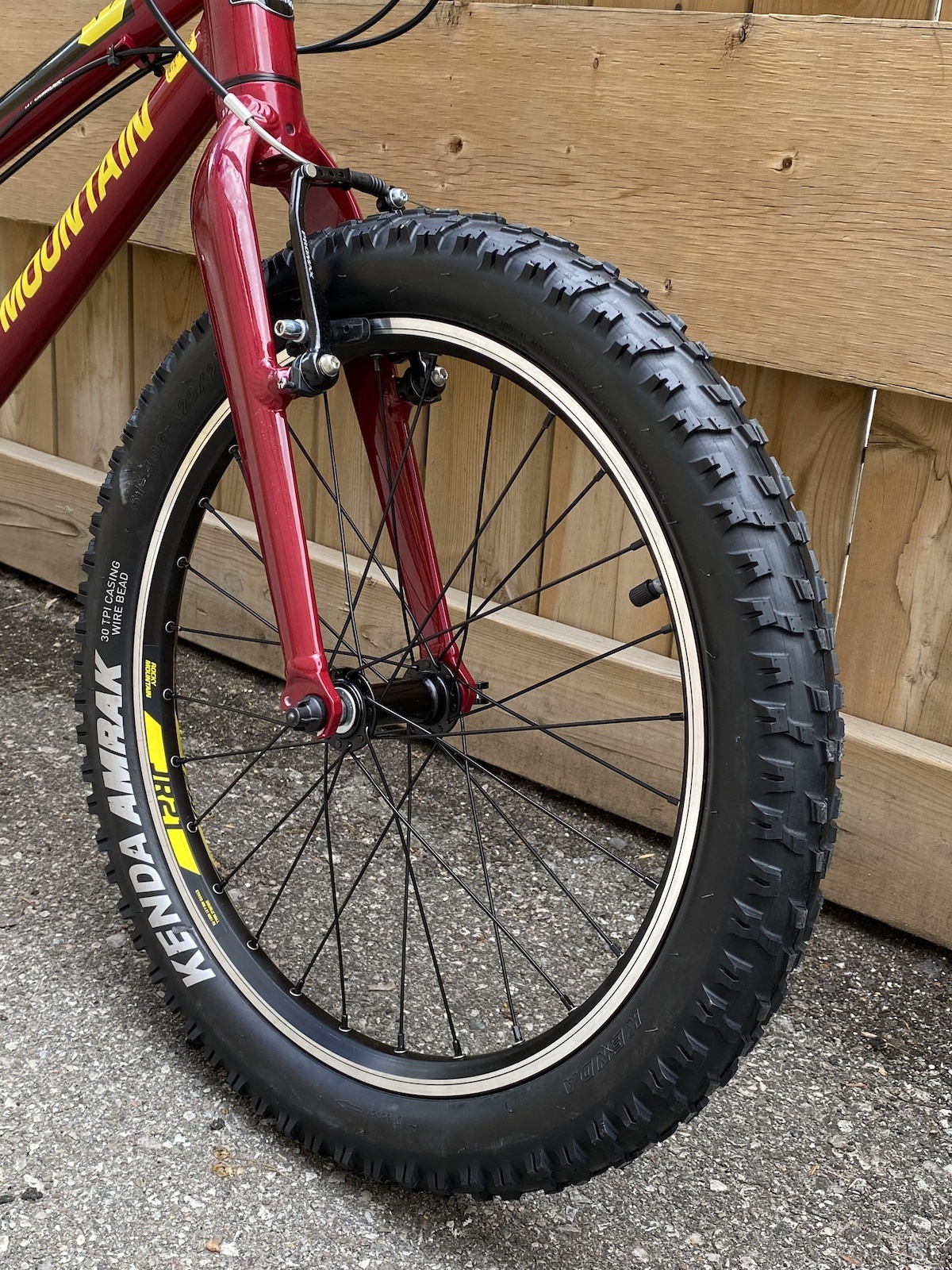

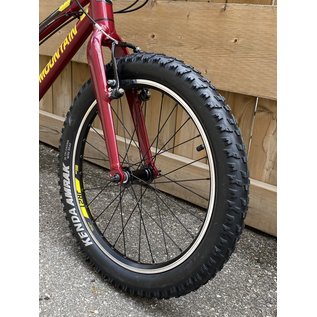

Tires
F: Kenda Amrak 20 x 2.4 | R: Kenda Amrak 20 x 2.4
Seatpost
Rocky Mountain Pivotal 27.2mm
Saddle
Rocky Mountain Pivotal Jr
Weight 9.5 Kg
We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.
