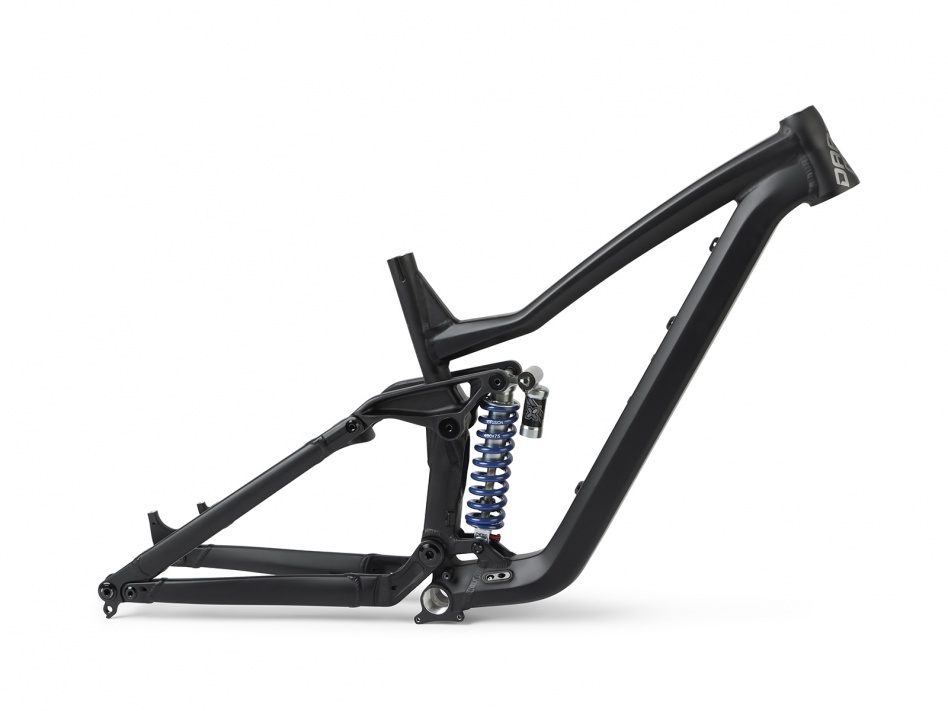

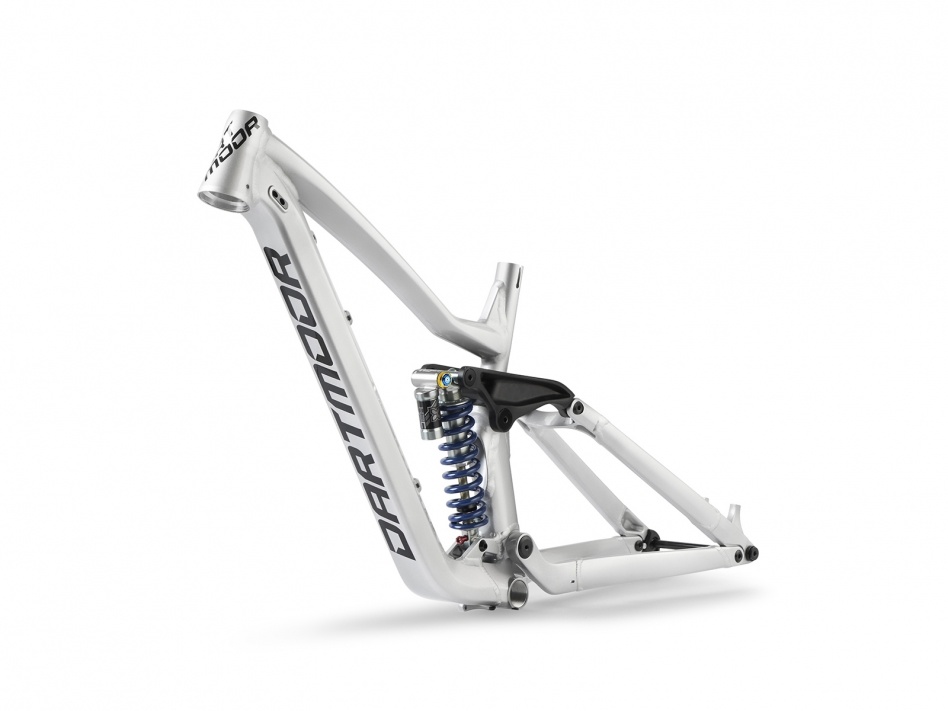

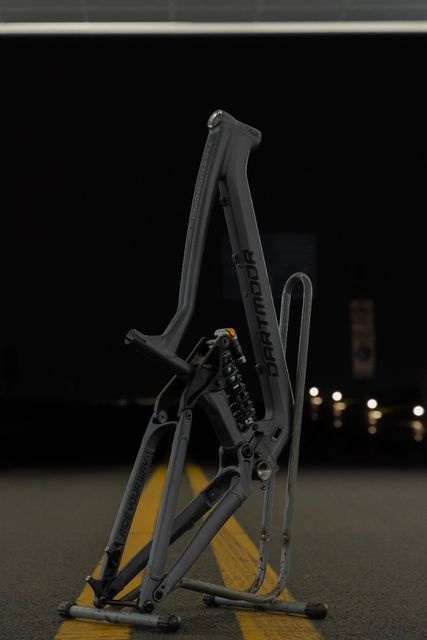

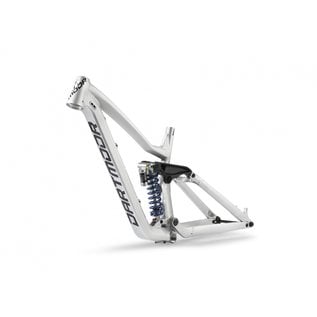

2023 Dartmoor Thunderbird FR 27.5" Boost X-Fusion H3C HLR 225x75mm shock

Quantity: 1

WHEEL SIZE
27.5"
FRAME
AL 6061-T
COLORS

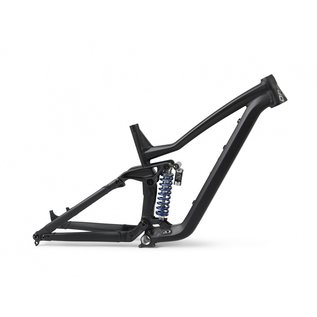

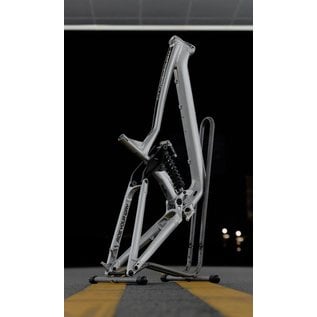

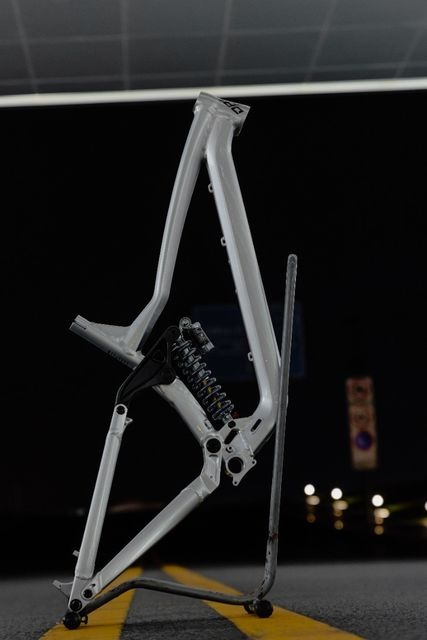

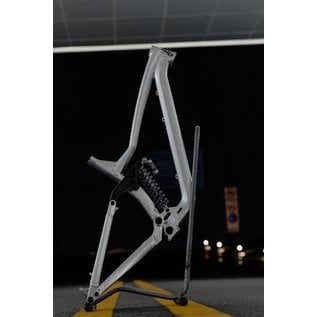

METALLIC SILVER, BLACK/GREY
DESCRIPTION

FR stands for freeride, and this is what you should do with this bike. A new Thunderbird FR frame sits on 27.5" wheels, as they are easier to get than 26" nowadays. Coil or air - it is your choice where you want to play with it. We designed it for bikepark laps with friends that choose double black diamonds for a warm-up run. It is a progressive and stiff as hell platform ready to be wrapped, hucked, and mistreated regularly. Thunderbird FR pedals just right to keep the sweat off during beer runs while its suspension stays responsive enough to prevent cold ones from ruffling. Well, that is what our R&D team says. 180mm of rear and up to 200mm of front travel with geometry allowing to fit a 29-inch front wheel means you can easily match it with a dual crown fork and keep the eyes away from your lovely mullet. With a great price-to-build ratio, you can easily save on a bike and travel more!

For keeping the frame trouble-free, all pivot points are working on the stiff axles mounted on the sealed Max-type bearings. The progressive suspension design is perfect for both types of shocks: spring shocks and large volume air shocks. The construction reduces also the negative impact of braking on the suspension operation. If you look for some more tech talk - the head tube is ready to take the new generation of 1.8" tapered forks with 68-69mm crowns and the dropout is compatible with the SRAM Universal Derailleur Hanger (UDH).

With this frame, you can Shred Like Thunder!

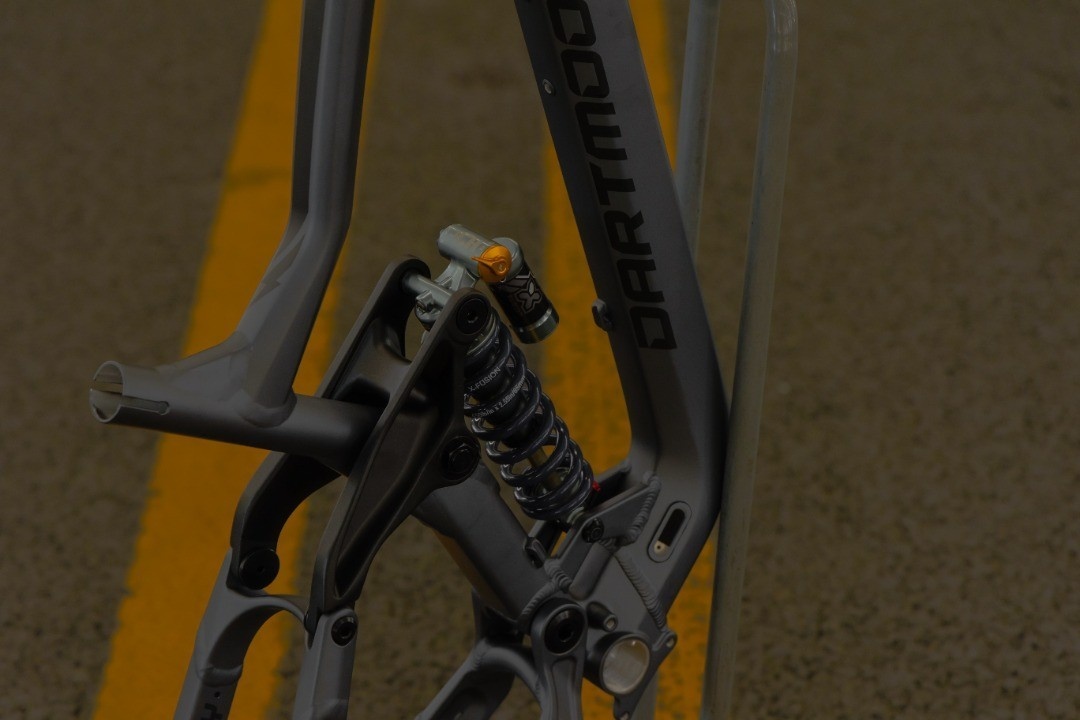

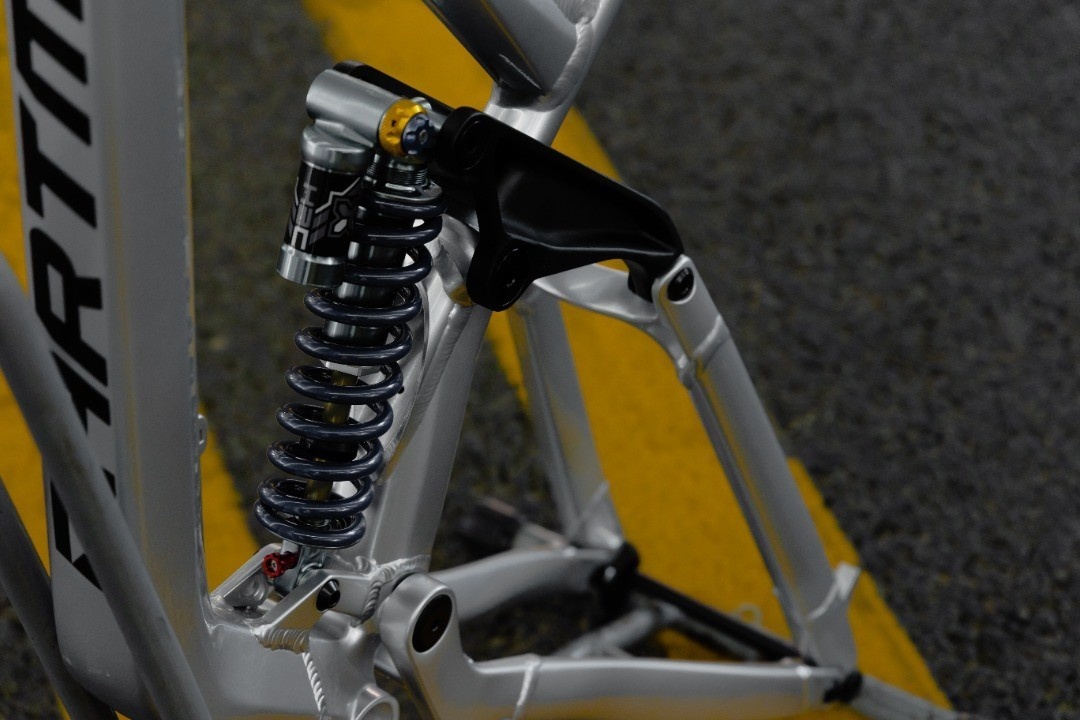

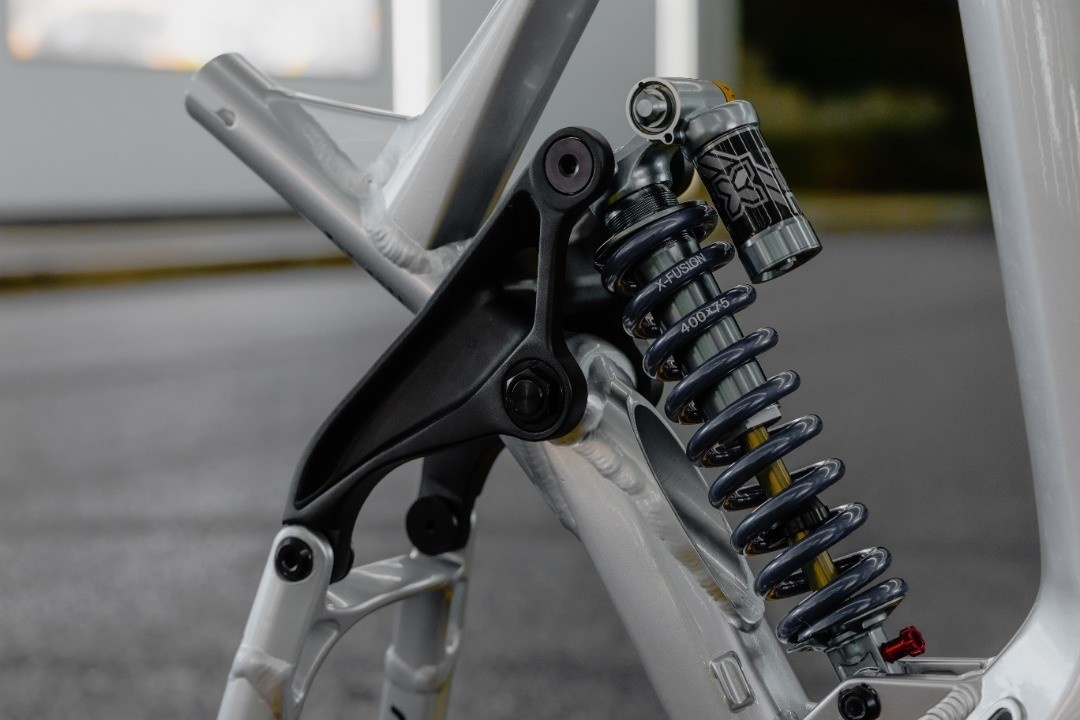

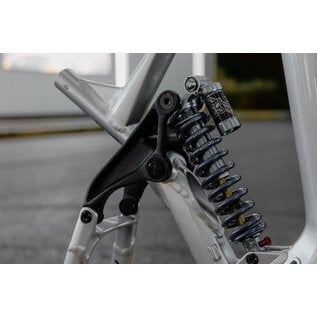

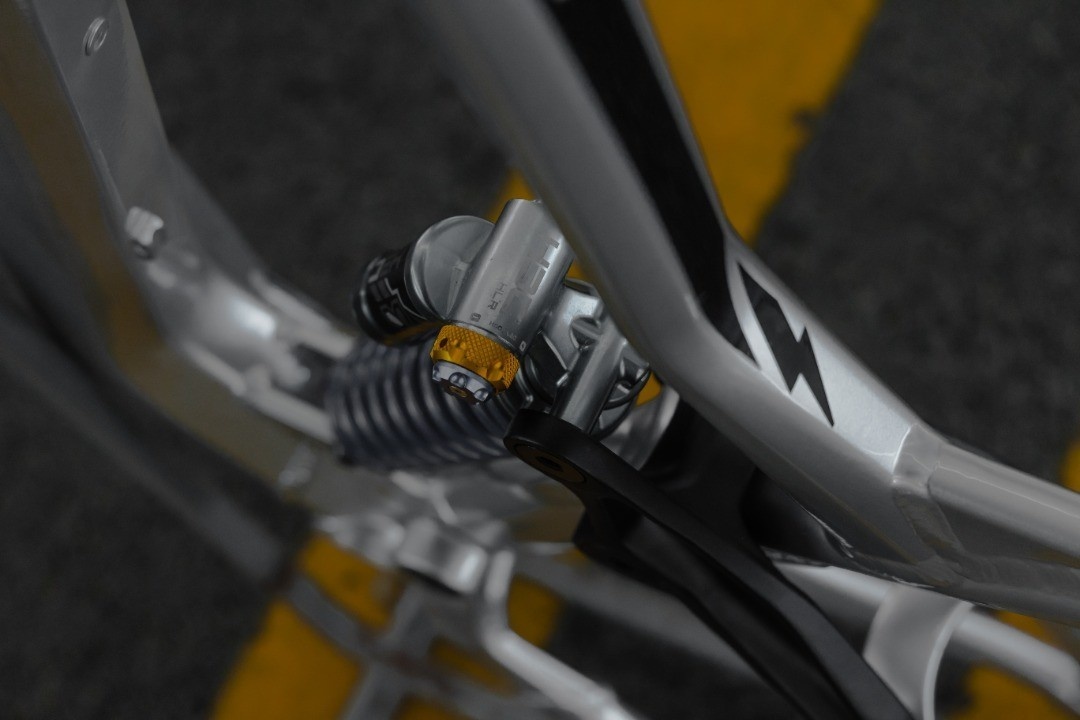

Available Options: w/X-Fusion H3C HLR shock with coil rate 400.



SPECIFICATION

SHOCK HARDWARE

Trunnion/22.2x8mm

WEIGHT

3.9kg (w/o shock)

COLORS

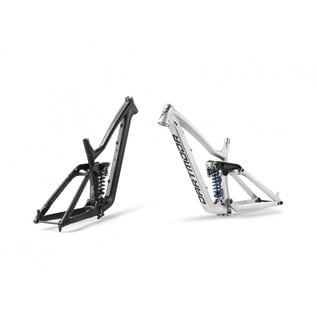

glossy Metallic Silver, matt Black/Grey

SIZES

M-L

SHOCK OPTIONS

w/o shock; w/X-Fusion H3C HLR shock with coil rate 400

FRAME TRAVEL

180mm

RECOMMENDED FORK TRAVEL

180-200mm

SHOCK SIZE

225x75mm

MAX CHAINRING SIZE

36T

MAX TIRE SIZE

27.5x2.6"

HUB SIZE

148x12mm

POST/CLAMP DIAMETER

30.9mm/34.9mm

HEADSET TYPE

IS42/IS60

DERAILLEUR HANGER

SRAM UDH



GEOMETRY
size *calc. fork travel REACH (mm) STACK (mm) ST (mm) TT (mm) eTT (mm) CS (mm) HT (mm) HT angle (°) eST angle (°) BB drop (mm) WB (mm) standover (mm) max. tire size (") max. chainring size shock size (mm) shock hardware (mm) brake mount max. rotor size (mm)
MEDIUM 180 445 619 430 - 540 430 110 65 81 12 1206 795 27.5x2.6 36T 225x75 Trunnion/22.2x8 PM 180mm 203
LARGE 180 470 619 450 - 565 430 110 65 81 12 1231 795 27.5x2.6 36T 225x75 Trunnion/22.2x8 PM 180mm 203
