| Quantity: | 1 |

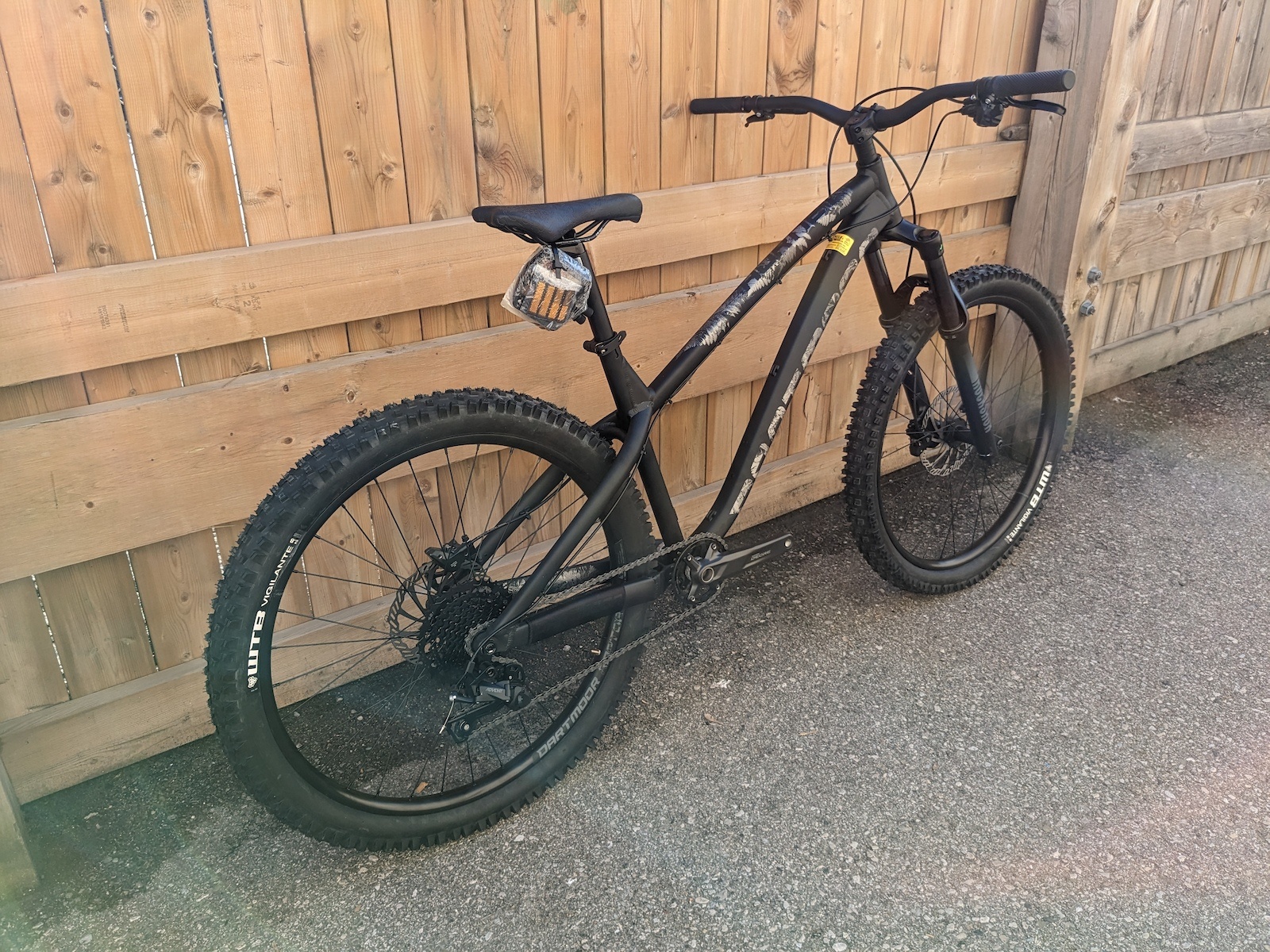

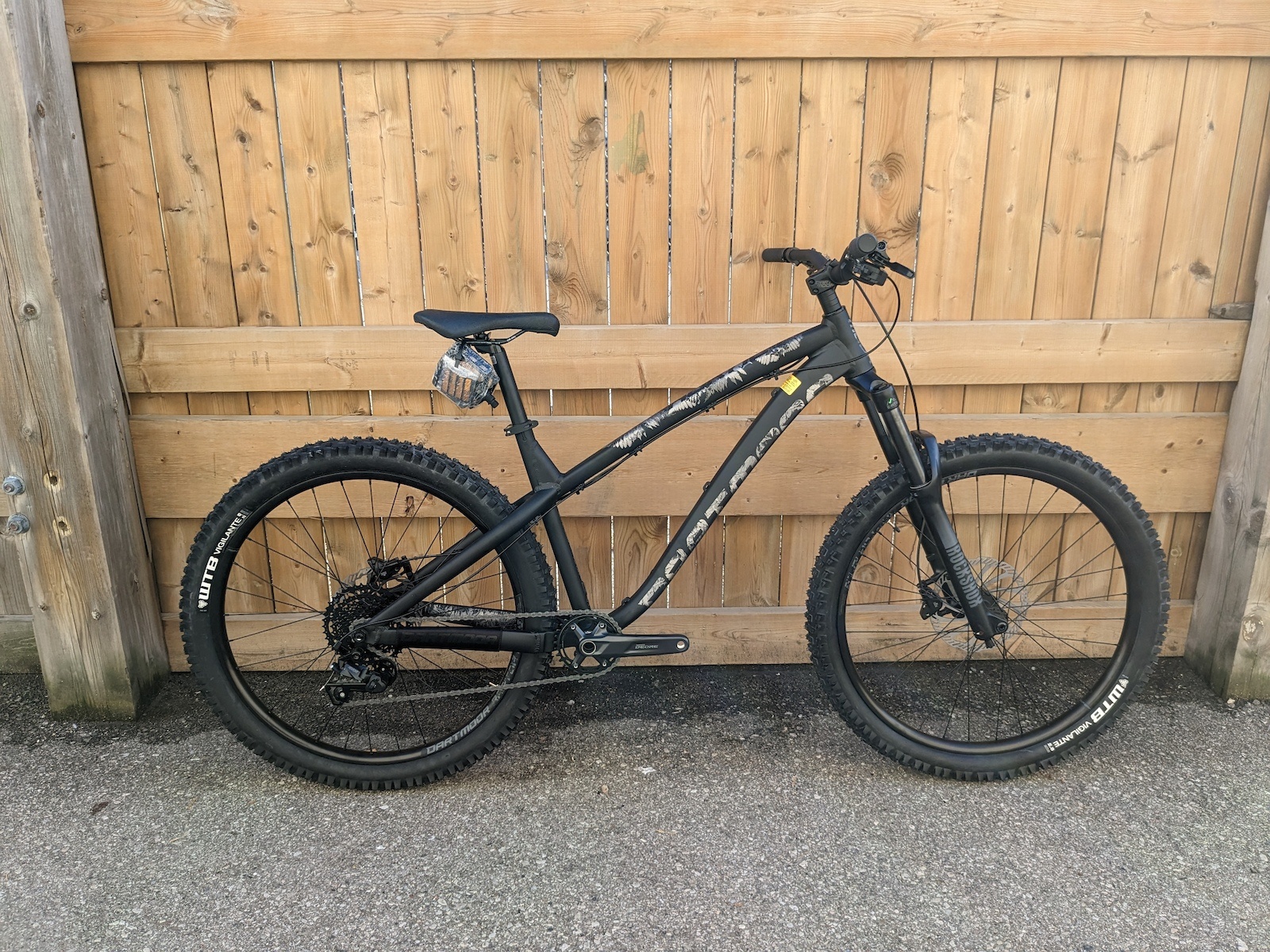

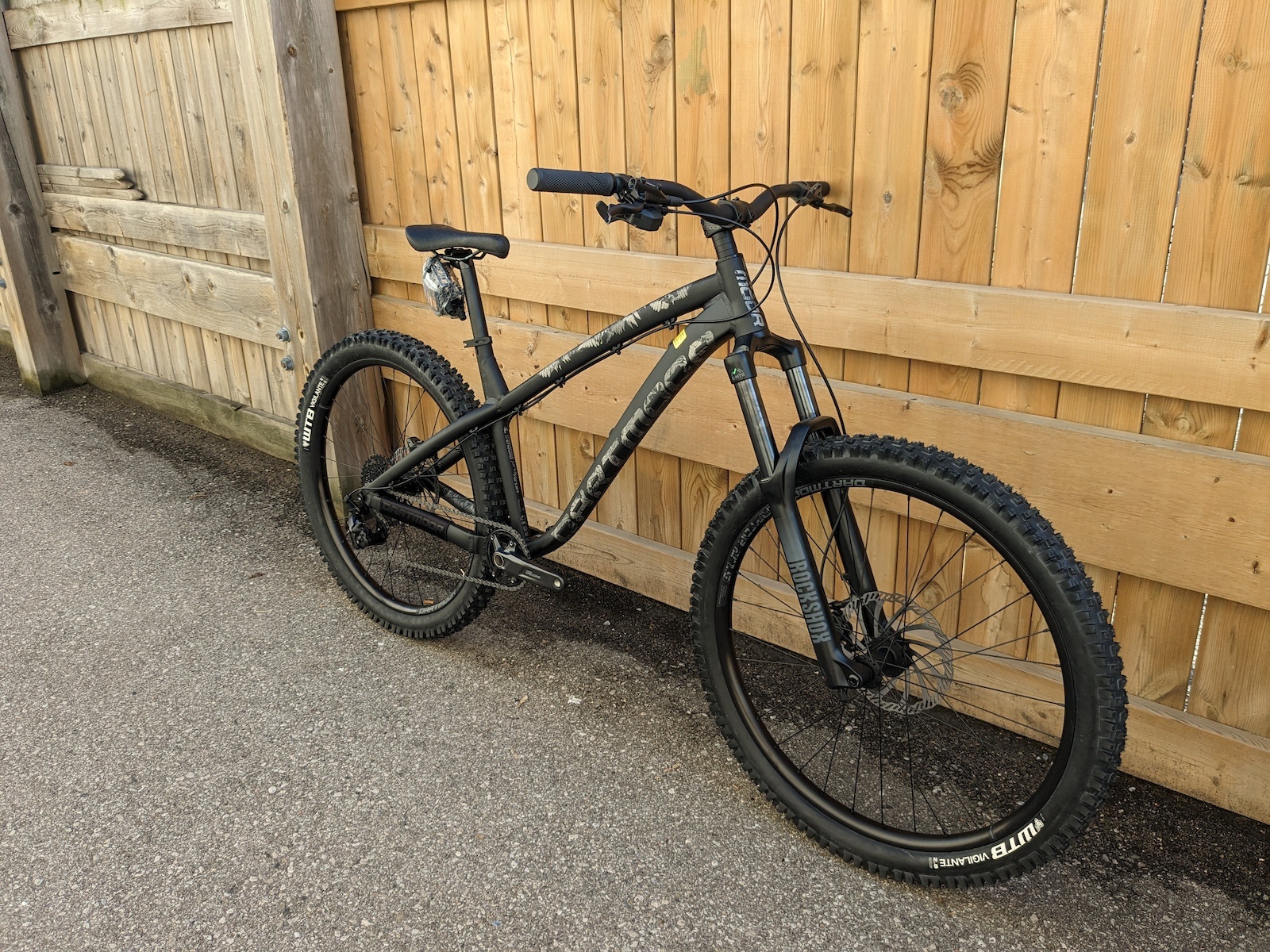

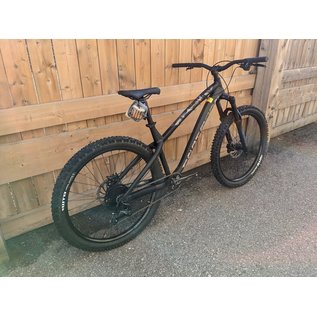

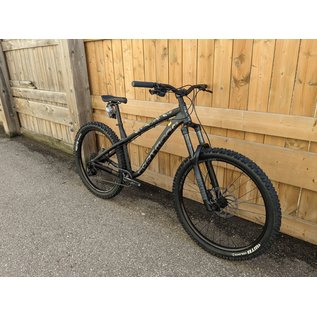

True legend beyond hardtails. Dedicated for the most aggressive riding including huge jumps, rocks, roots – just everything! There is nothing that can stop this monster… well maybe besides the rider’s fear. Demanding enduro trails or even DH ones, massive jumps in the bike parks and city as well – these are what Hornet was born for! Besides that, this version of Hornet won’t make you bankrupt while making you super happy!
MAIN FEATURES
SPECIFICATION
COLOR
matt Black/Grey
FRAME SIZE
Small, Medium, Large, XLarge
FRAME
matt Black/Grey, AL 6061-T6

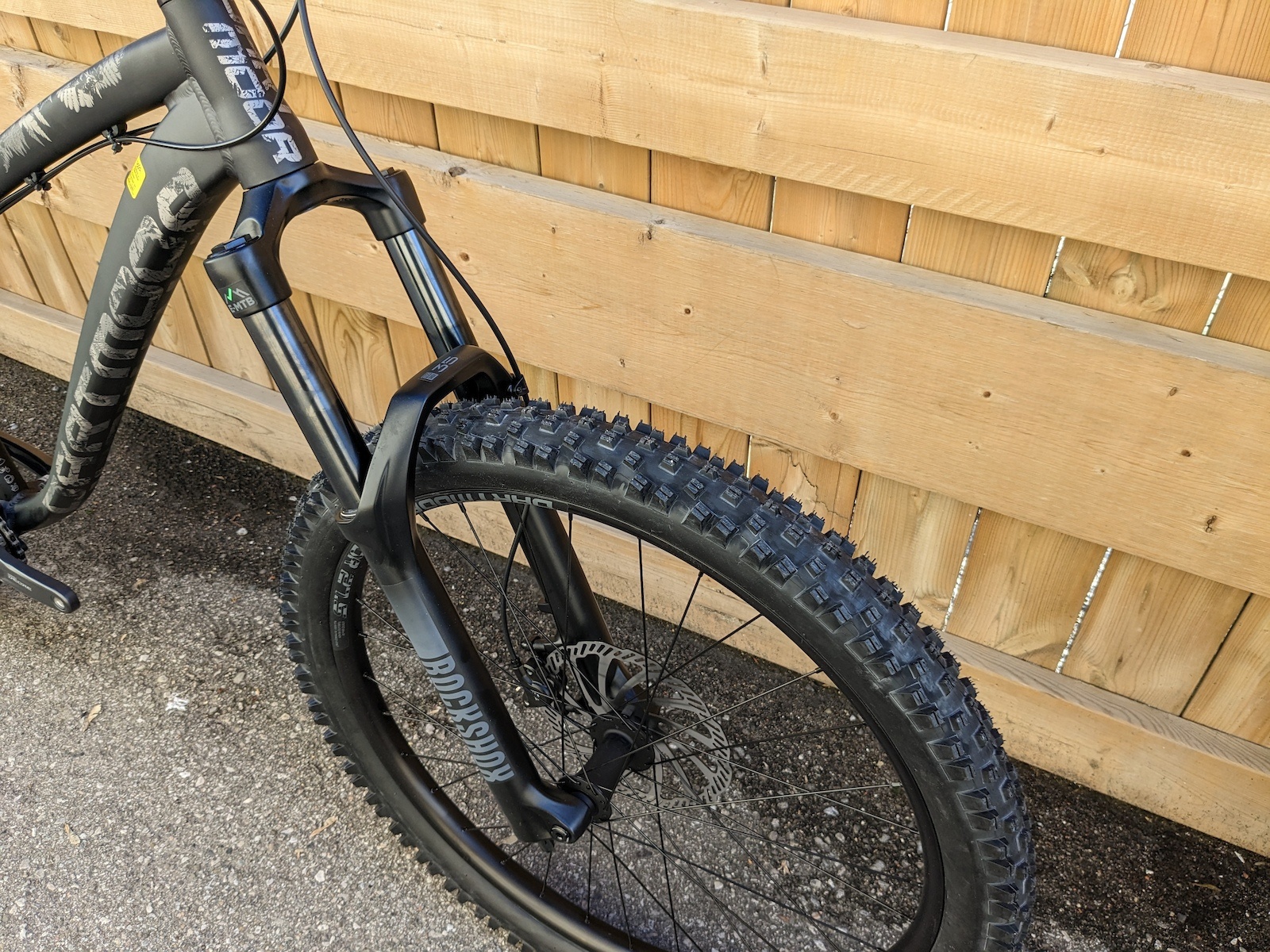

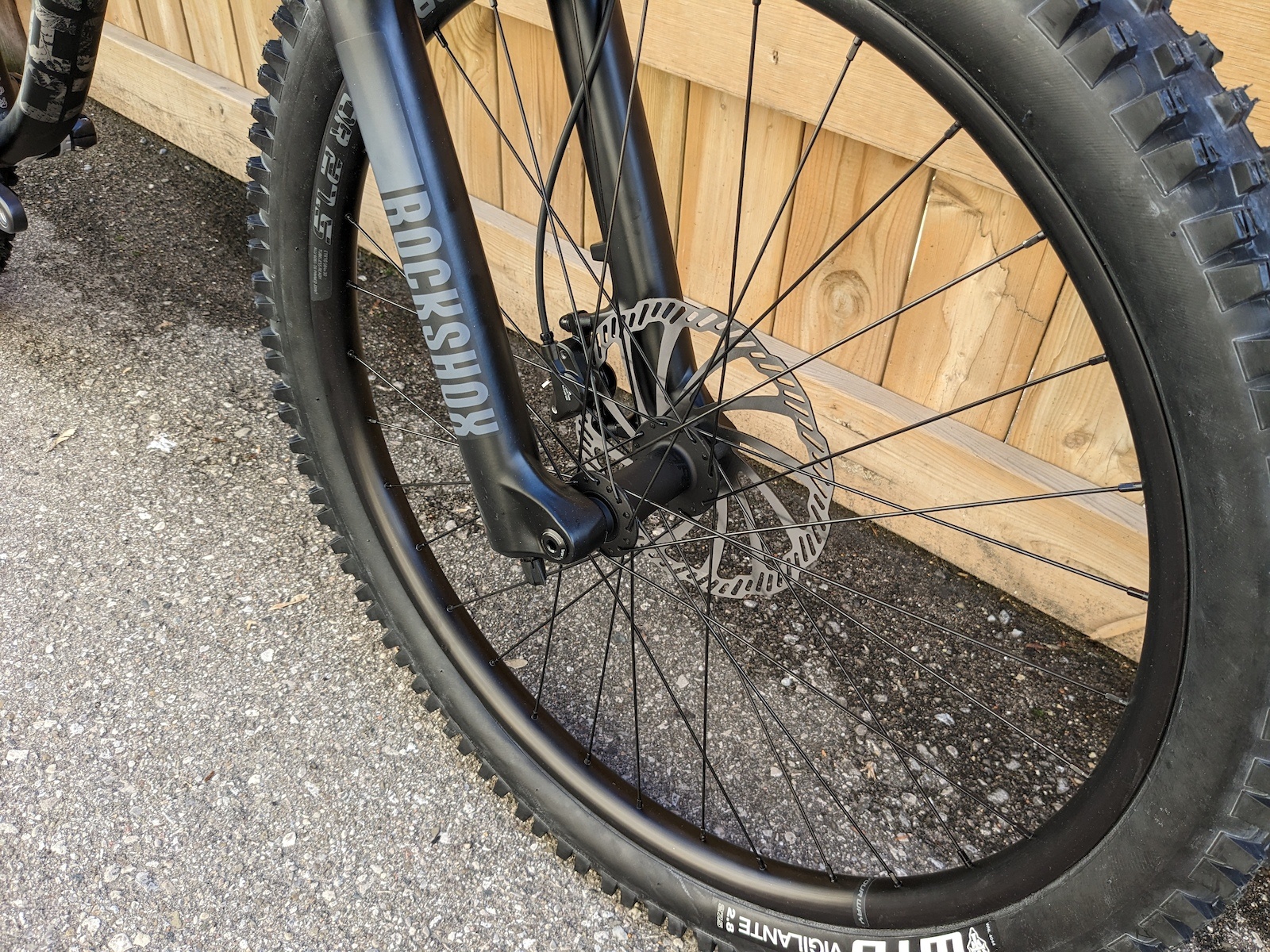

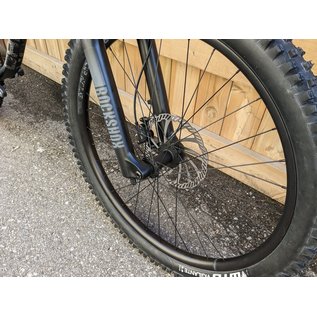

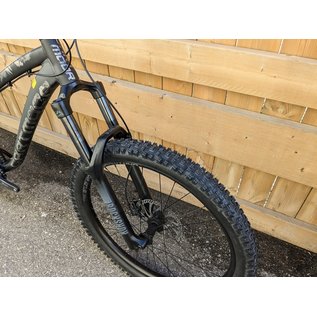

FORK
Rock Shox 35 Silver R 27.5", Boost, travel 150mm, axle 15mm, tapered
HEADSETS
Dartmoor Blink OEM

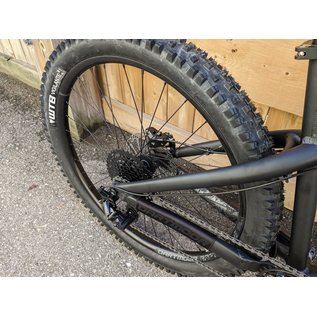

DERAILLEUR
Microshift Advent M6195M (with clutch) 1X9
SHIFTER
Microshift Advent Trail Pro M9295-R, 9–speed
BRAKES
Shimano MT410, 2-piston brakes, rotors 203mm (front) / 180mm (rear)
CRANKSET
Shimano Deore FC-5100
CHAINRING
32T, BCD 96mm
CASSETTE
Microshift Advent H093, 11-42T
CHAIN
KMC Z9
PEDALS
Dartmoor Stream OEM
RIMS
Dartmoor Raptor 27.5", 32H, F/V, tubeless ready
FRONT HUB
Dartmoor Reel Boost 110x15mm, 32H

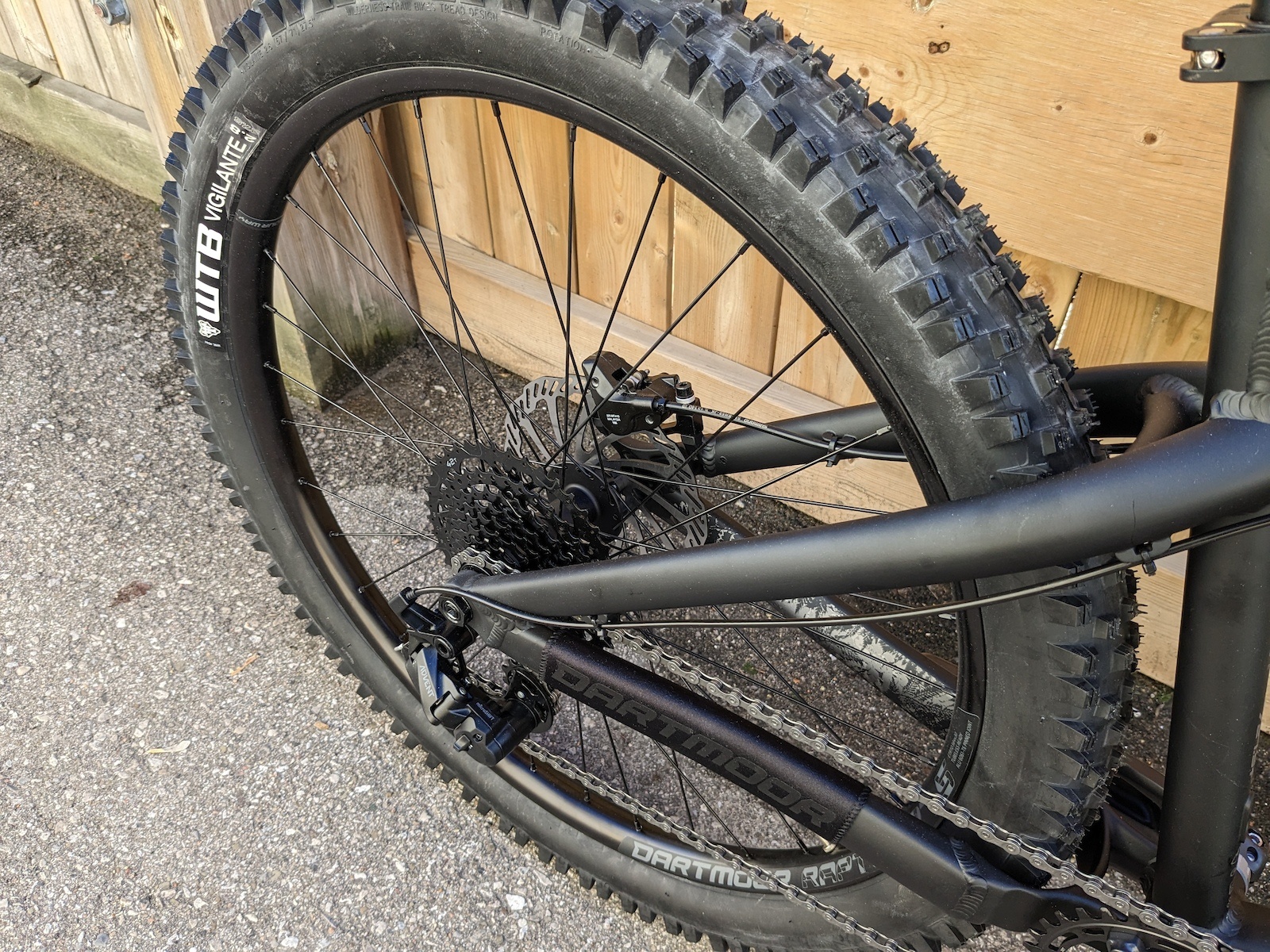

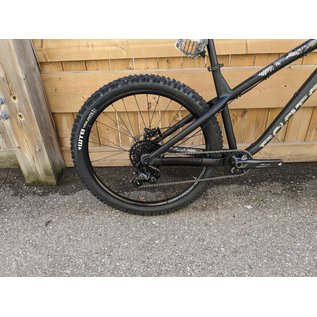

REAR HUB
Dartmoor Reel Boost 148x12mm, 32H
TIRES
WTB Vigilante 27.5x2.8" Comp

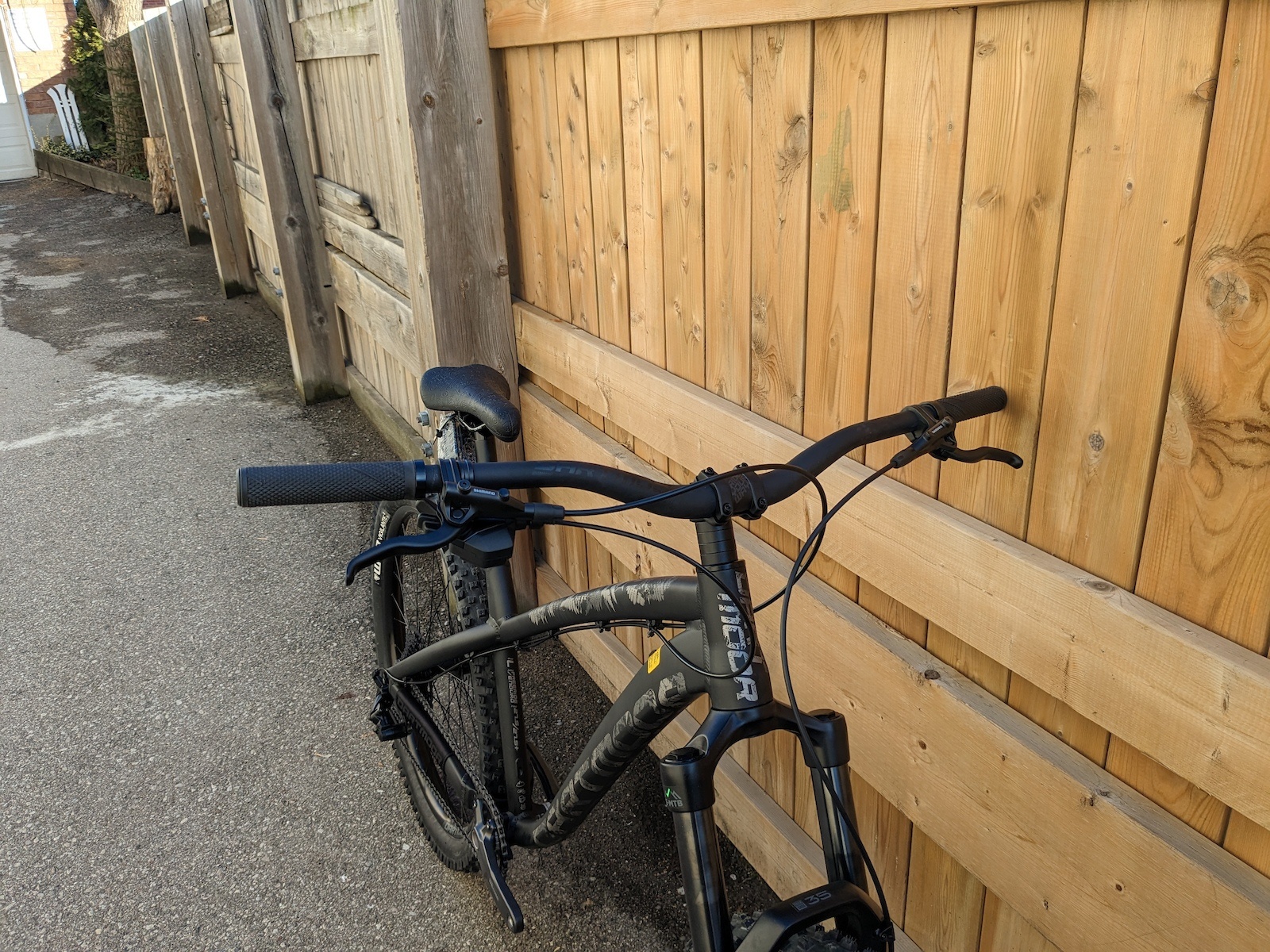

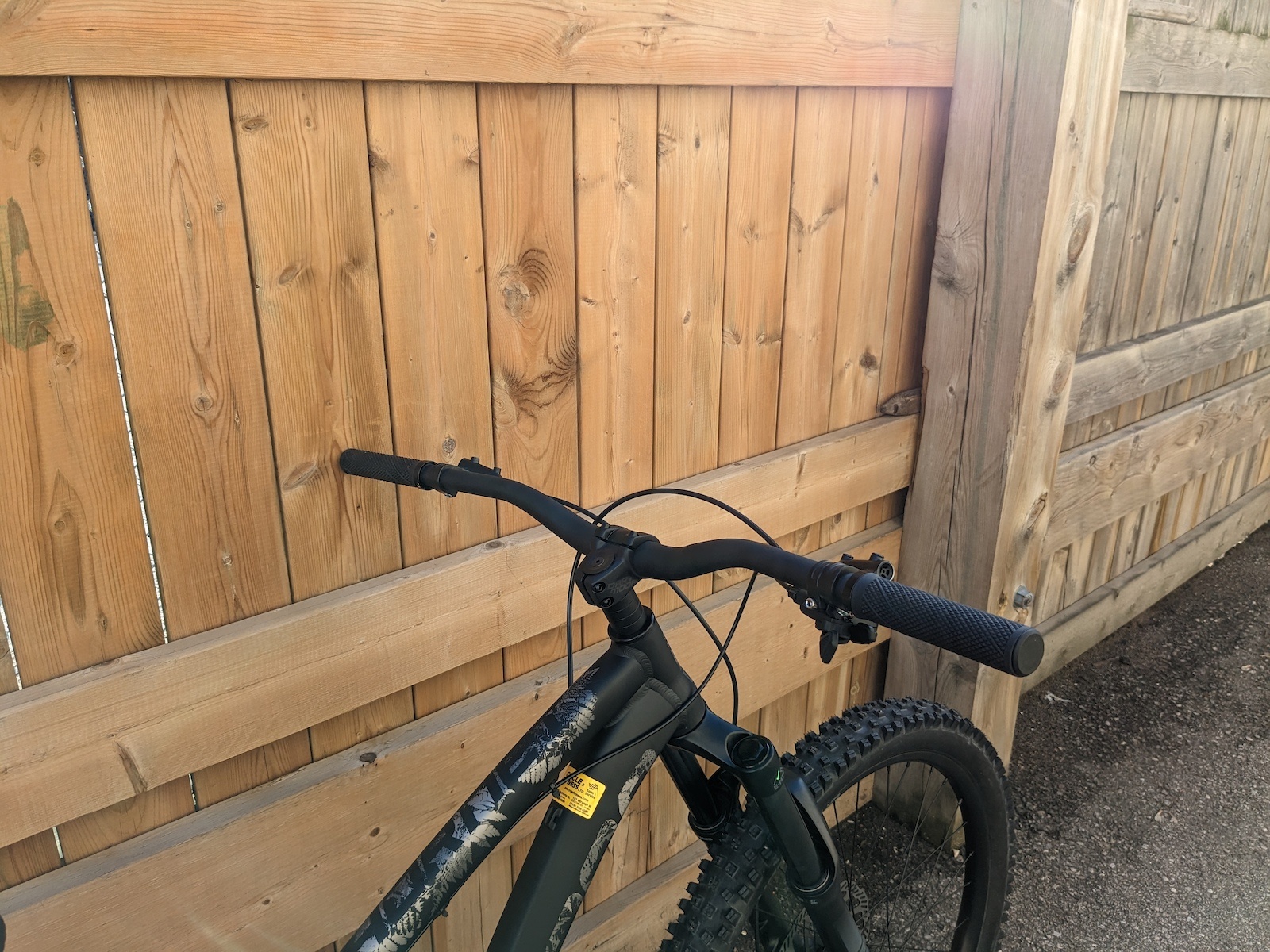

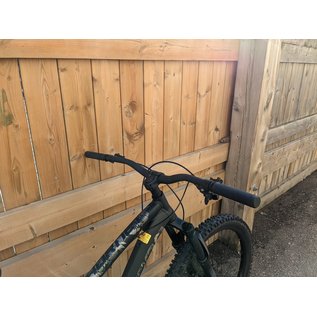

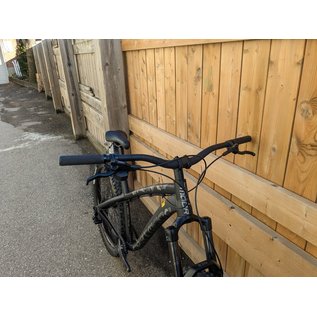

HANDLEBAR
Dartmoor Tornado Hi 780mm, Ø31.8mm
STEM
Dartmoor Viper, Ø31.8mm
GRIPS
OEM 135mm, diamond pattern, with lock ring
SADDLE
Dartmoor Trail v.2
SEATPOST
alu 6061, 30.9x400mm (XL, L) / 350mm (M, S)
WEIGHT
15.55kg (w/o pedals)
| size | reach (mm) | stack (mm) | ST (mm) | TT (mm) | eTT (mm) | CS (mm) | HT (mm) | HT angle (°) | eST angle (°) | BB drop (mm) | WB (mm) | stand-over (mm) | wheel size (") | hub size (mm) | headset type (S.H.I.S) | BB type (mm) | post diam. (mm) | clamp diam. (mm) | brake mount | max. rotor size (mm) |
| MEDIUM | 430 | 625 | 410 | - | 620 | 425 | 120 | 64 | 73 | 35 | 1183 | 805 | 27.5/27.5+ | 148x12 | IS42/IS52 | BSA/Euro73 | 30.9 | 34.9 | PM 160mm | 203 |
| LARGE | 460 | 625 | 440 | - | 650 | 425 | 120 | 64 | 73 | 35 | 1213 | 805 | 27.5/27.5+ | 148x12 | IS42/IS52 | BSA/Euro73 | 30.9 | 34.9 | PM 160mm | 203 |
