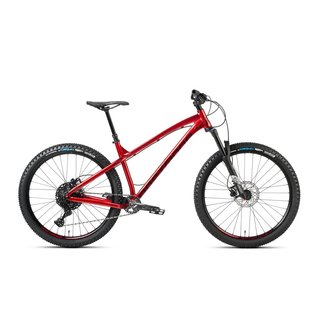

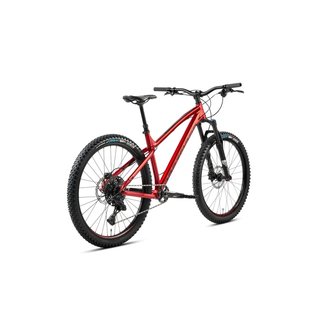

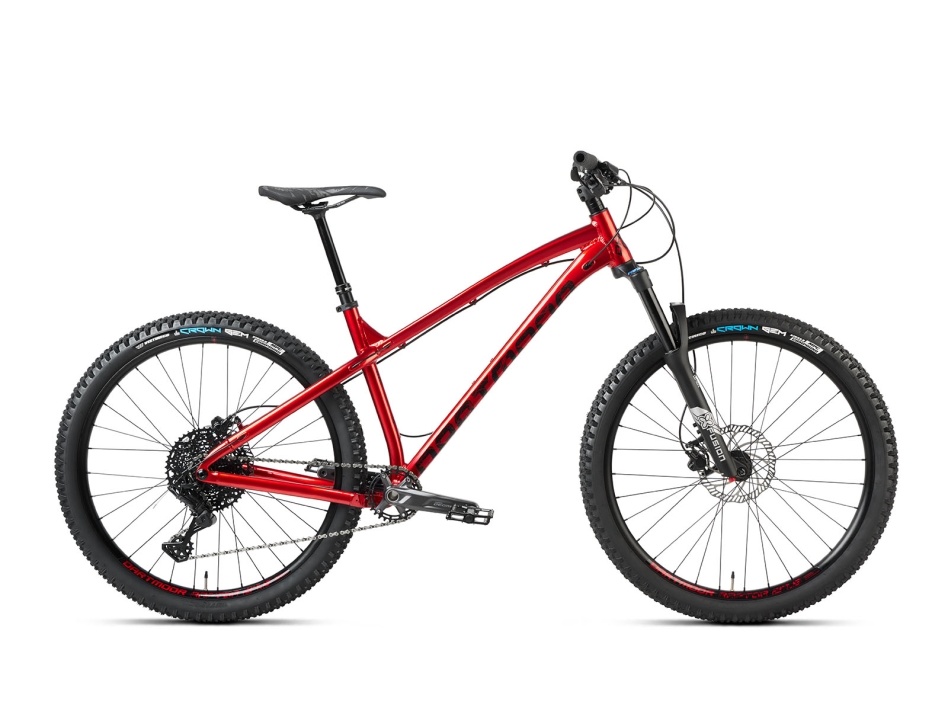

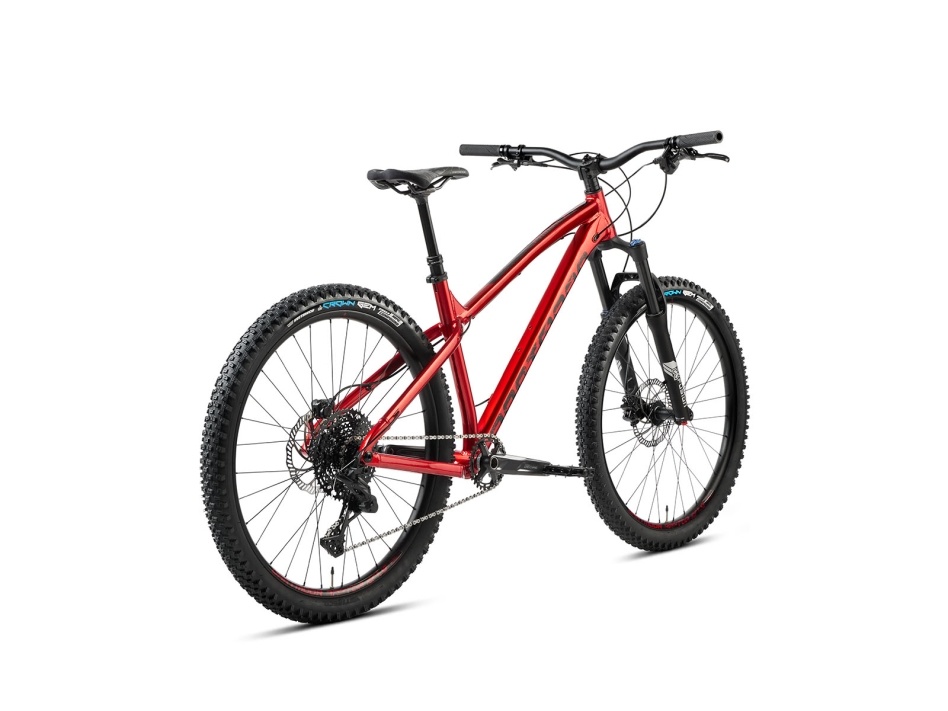

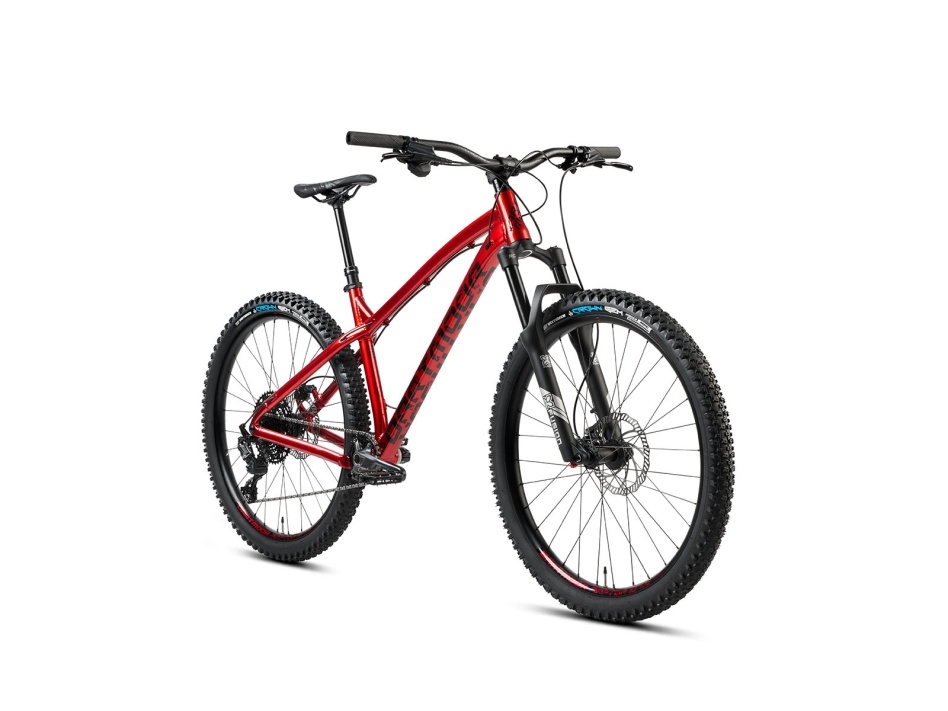

One of the most versatile bikes in the Dartmoor lineup. Perfect choice for riders looking for everything best in mountain biking like downhills, uphills, trail discovering, jumps, and even pump track and cornering. 27.5-inch wheels give more fun on single tracks, technical sections, or while having fun at the local bike parks. Evo versions of Primals are equipped with well-chosen medium spec components like an air front suspension fork with rebound control and a dropper seat post.
MAIN FEATURES
SPECIFICATION
COLOR
glossy Red Devil
FRAME SIZE
Small, Medium,
FRAME
glossy Red Devil, AL 6061-T6

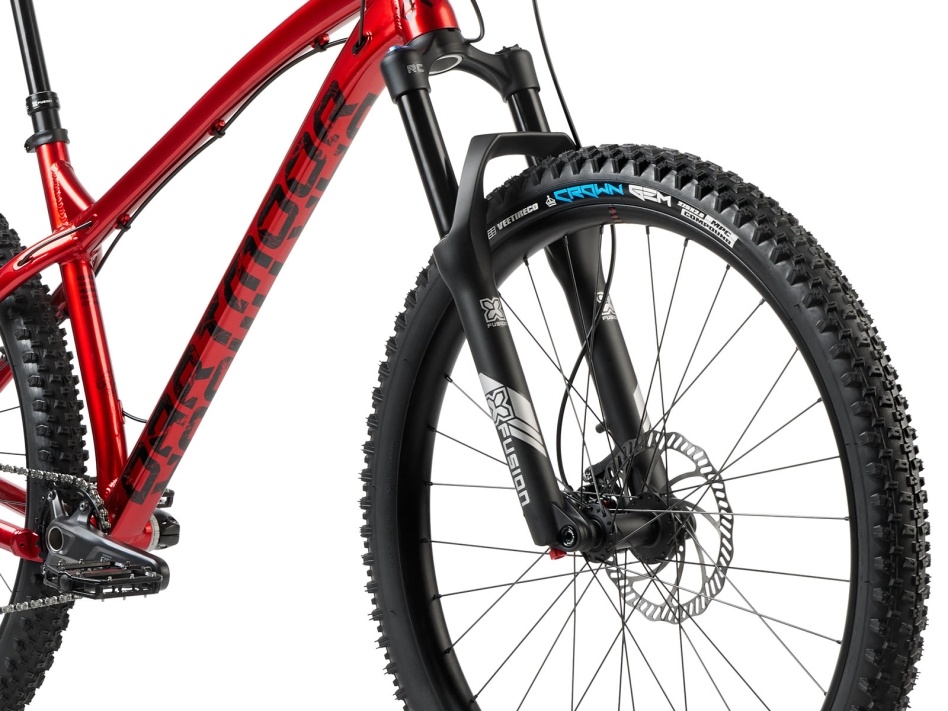

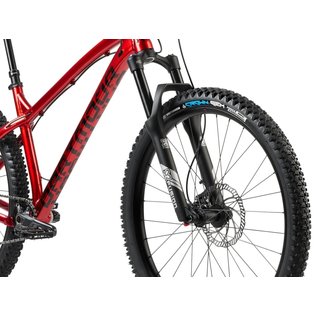

FORK
X-Fusion RC32 27.5", Boost, travel 130mm, axle 15mm, tapered
HEADSETS
Dartmoor Blink OEM

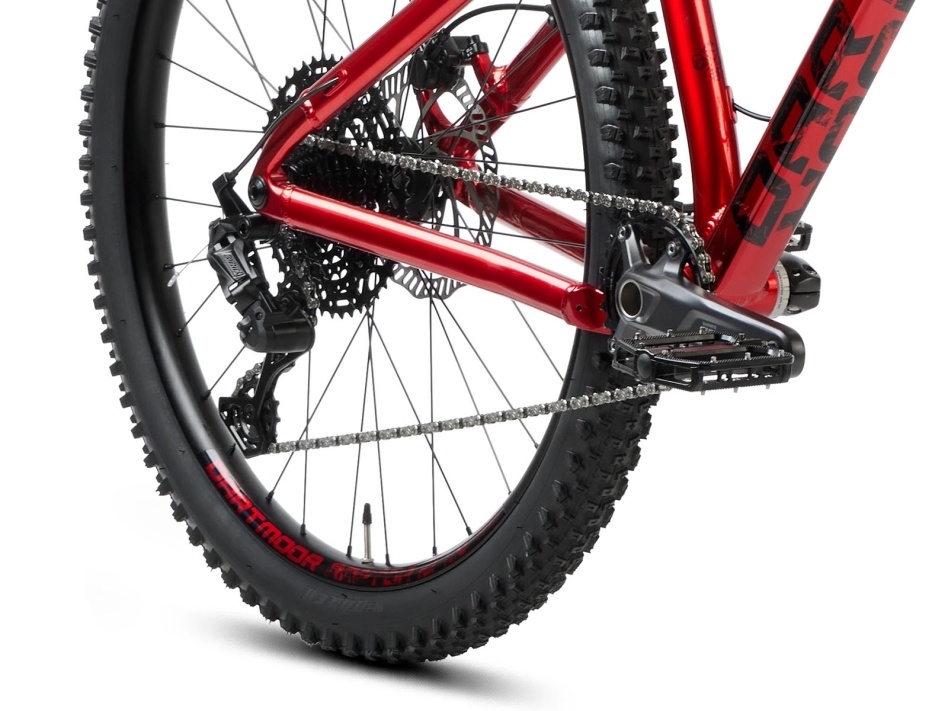

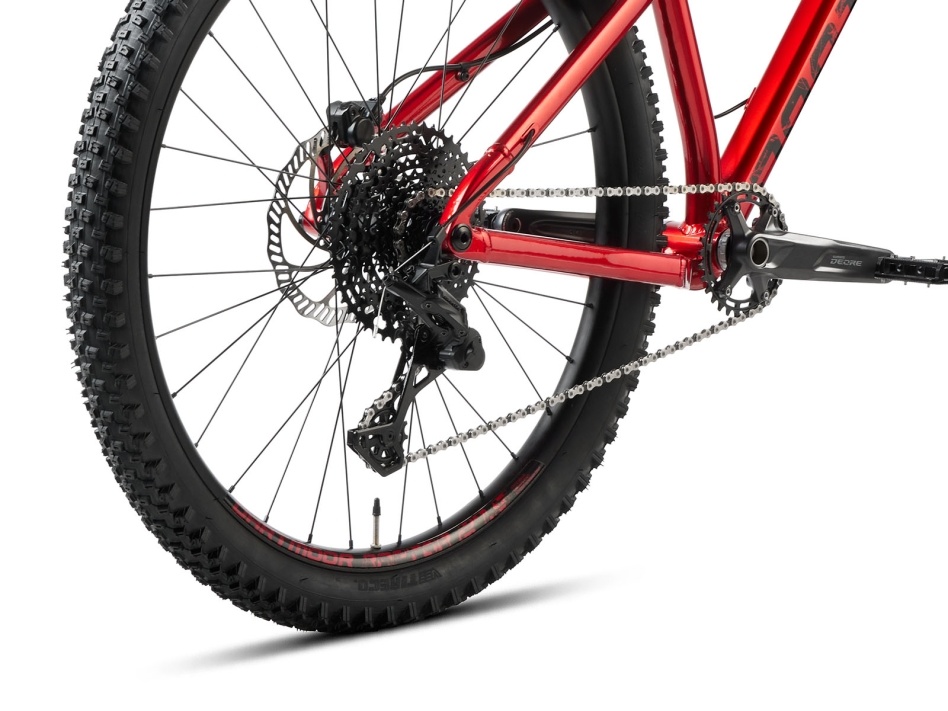

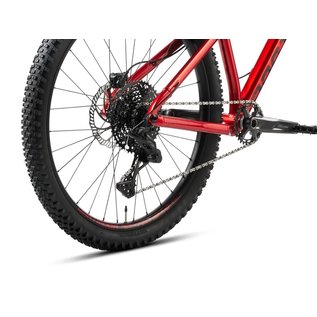

DERAILLEUR
Microshift AdventX RD-M6205GM (with clutch) 1x10

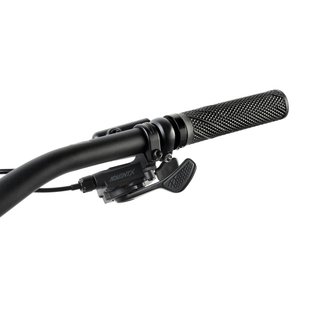

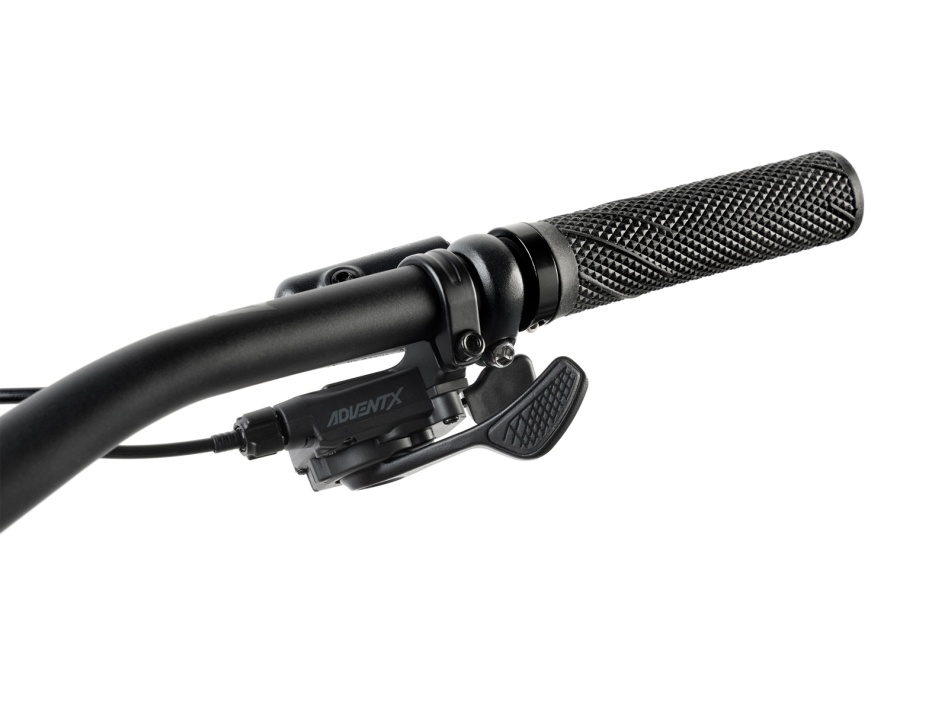

SHIFTER
Microshift AdventX SL-M9605-R, 10-speed
BRAKES
2-piston hydraulic brakes, rotors 180mm

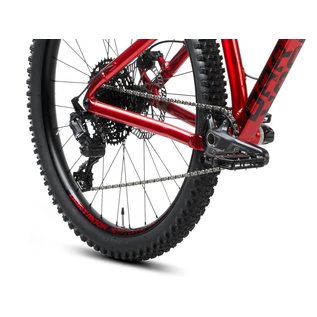

CRANKSET
Shimano Deore FC-5100
CHAINRING
32T, BCD 96mm
CASSETTE
Microshift CS-H104, 11-48T
CHAIN
KMC X10
PEDALS
Dartmoor Stream OEM
RIMS
Dartmoor Raptor 27.5", 32H, F/V, tubeless ready
FRONT HUB
Dartmoor Reel Boost 110x15mm, 32H
REAR HUB
Dartmoor Reel Boost 148x12mm, 32H
TIRES
Vee Tire Crown Gem 27.5x2.6, Wire, MPC

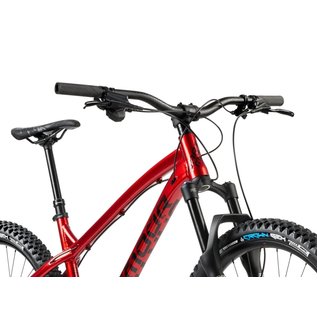

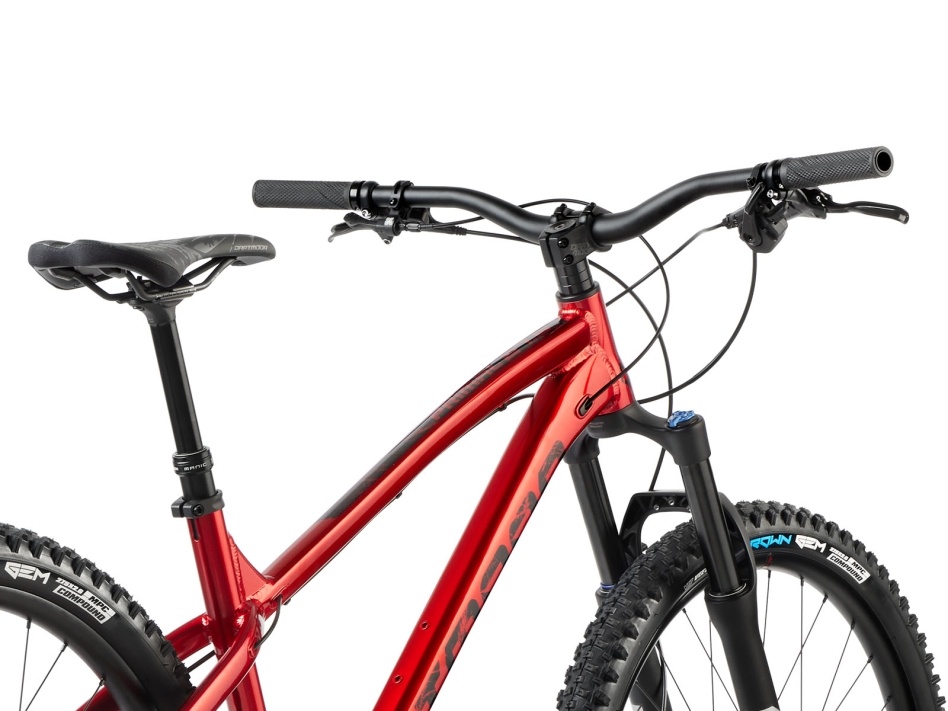

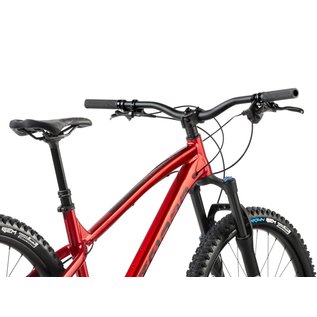

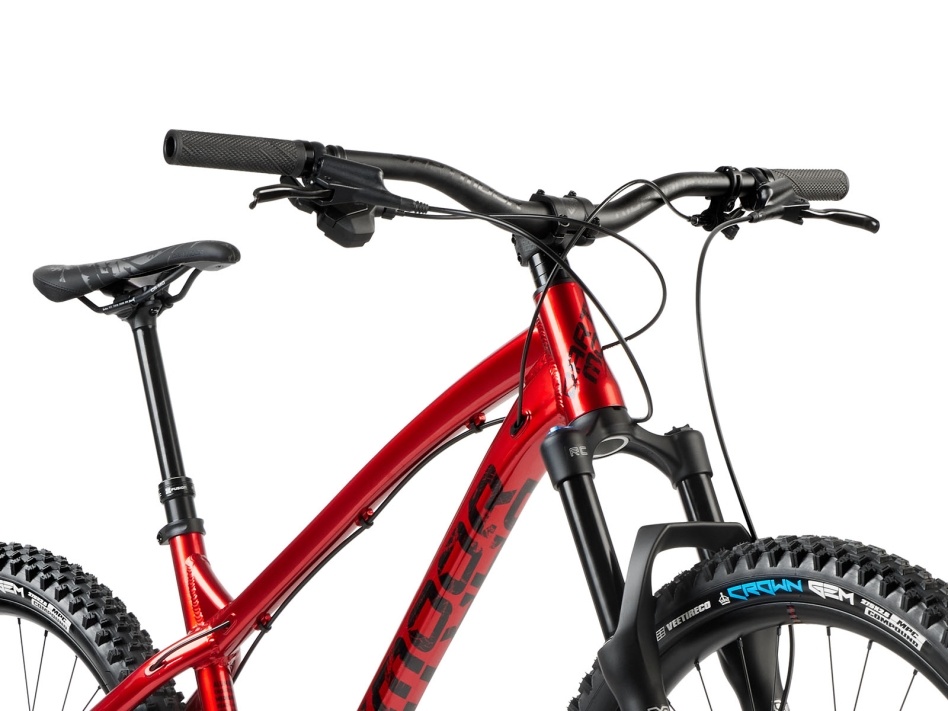

HANDLEBAR
Dartmoor Tornado Hi 780mm, Ø31.8mm
STEM
Dartmoor Viper, Ø31.8mm
GRIPS
OEM 135mm, diamond pattern, with lock ring
SADDLE
Dartmoor Leaf OEM

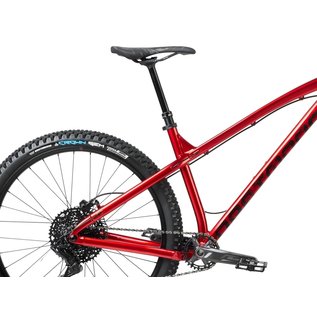

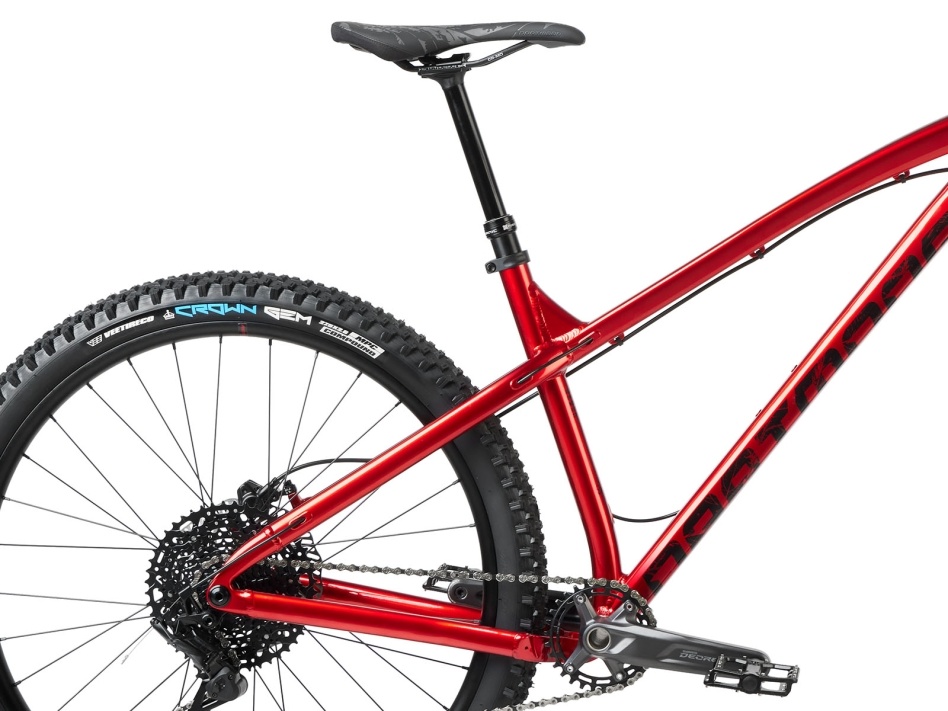

SEATPOST
X-Fusion Manic, travel 170mm (L) / 150mm (M) / 125mm (S), Ø30.9mm
WEIGHT
14.75kg (w/o pedals)
| size | reach (mm) | stack (mm) | ST (mm) | TT (mm) | eTT (mm) | CS (mm) | HT (mm) | HT angle (°) | eST angle (°) | BB drop (mm) | WB (mm) | stand-over (mm) | wheel size (") | hub size (mm) | headset type (S.H.I.S) | BB type (mm) | post diam. (mm) | clamp diam. (mm) | brake mount | max. rotor size (mm) |
| SMALL | 415 | 622 | 410 | - | 589 | 418 | 110 | 65 | 72 | 47 | 1134 | 774 | 27.5 | 148x12 | IS42/IS52 | BSA/Euro73 | 30.9 | 34.9 | PM 180mm | 180 |
| MEDIUM | 445 | 622 | 430 | - | 621 | 418 | 120 | 65 | 72 | 47 | 1169 | 774 | 27.5 | 148x12 | IS42/IS52 | BSA/Euro73 | 30.9 | 34.9 | PM 180mm | 180 |
