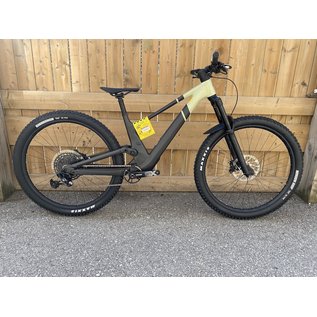

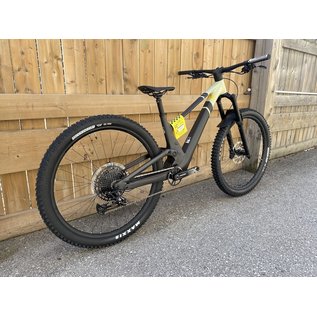

DESCRIPTION

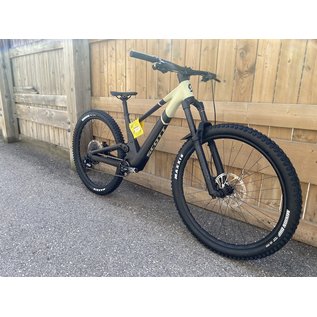

Made to go up the mountain in a hurry, and down the mountain even faster. The all new Genius ST features a custom Float X Nude shock from FOX and is the perfect bike for those who have an insatiable hunger for rippin' trail.
SPECS
-
FRAME
Genius Alloy 6061
Integrated Suspension Technology
Virtual 4 Link kinematic / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline
-

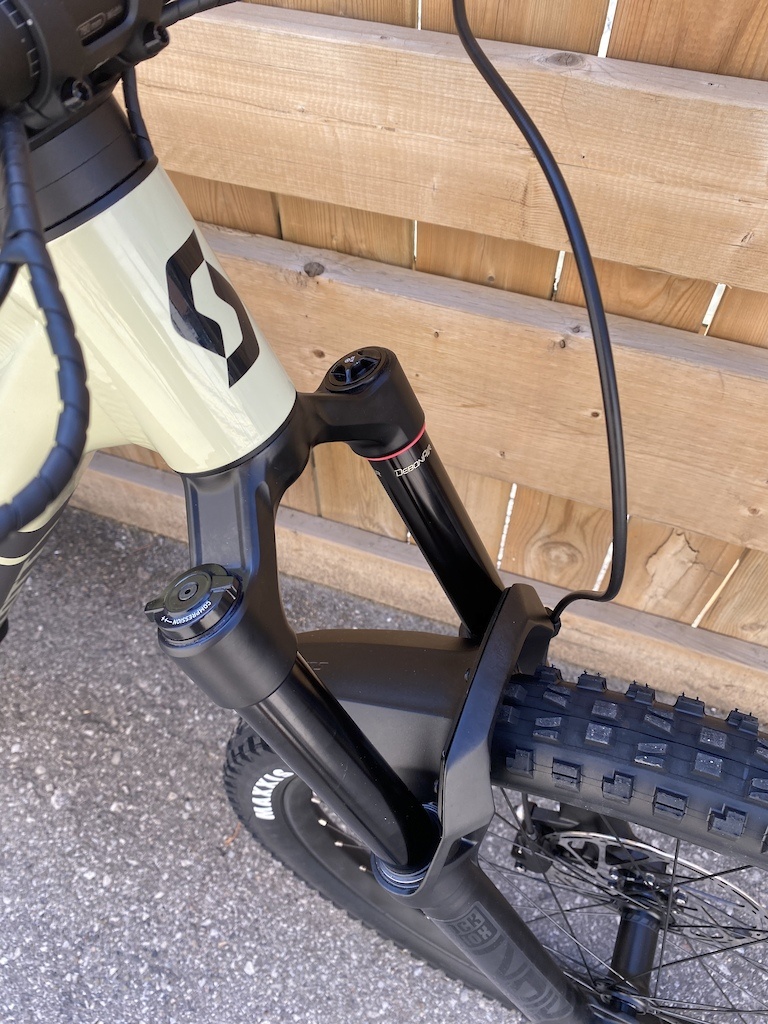

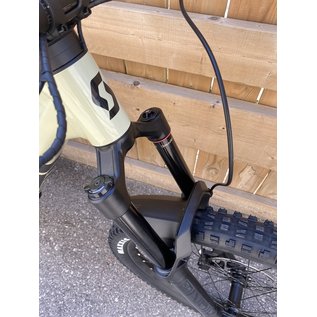

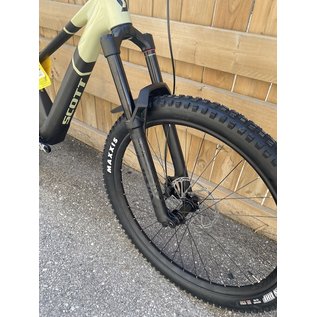

FORK
RockShox Lyrik Air
Rush RC Damper
15x110mm Maxle Stealth
44mm offset / Tapered steerer
Comp & Reb. Adj. / 160mm travel
-
REAR SHOCK
FOX FLOAT X NUDE PE EVOL Piggy Back Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Climb-Traction Control-Descend
Custom large Air volume / Comp & Reb. Adj.
Travel 150-100-Climb / T185X55mm
-
REMOTE SYSTEM
TracLoc Technology
Rear Suspension & Dropper Remote
3 Rear Suspension modes
-

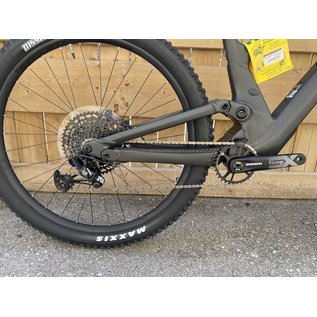

REAR DERAILLEUR
SRAM NX Eagle 12 Speed
-
SHIFTERS
SRAM SX Eagle Trigger
-

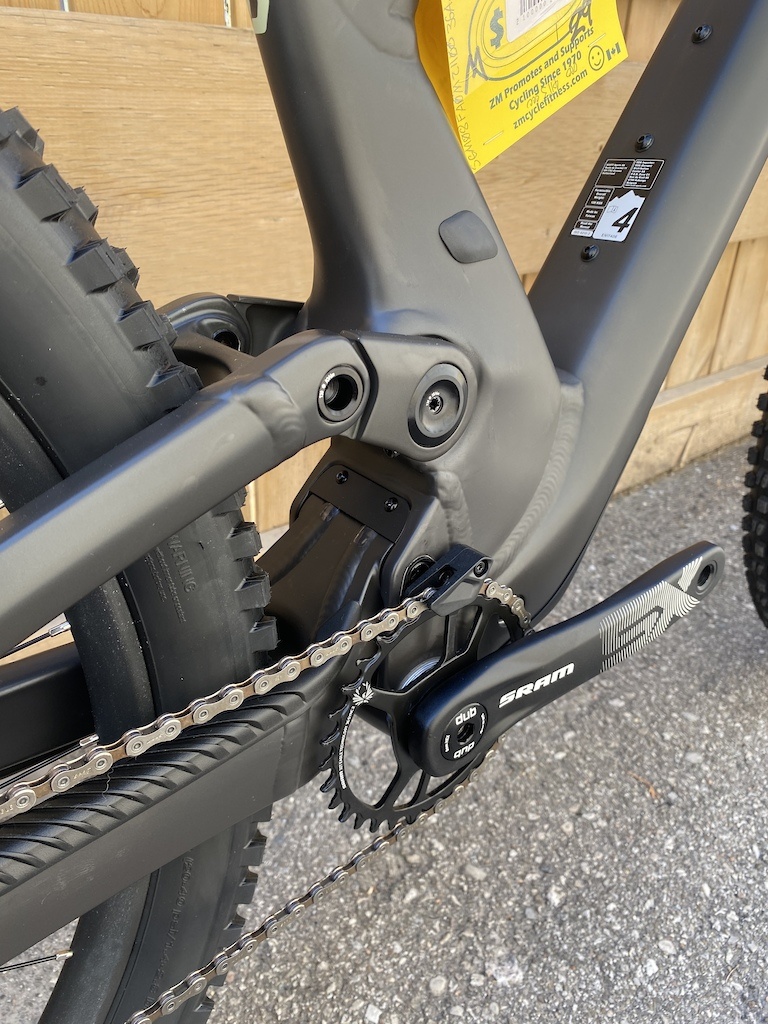

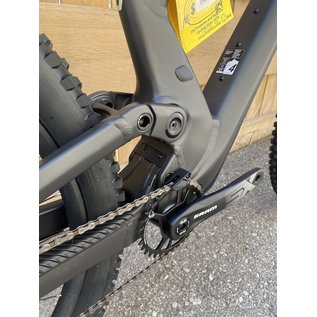

CRANKSET
SRAM SX Eagle DUB
55mm CL / 32T
-
BB-SET
SRAM DUB PF 92 MTB Wide / shell 41x92mm
-
CHAIN
SRAM CN SX Eagle
-

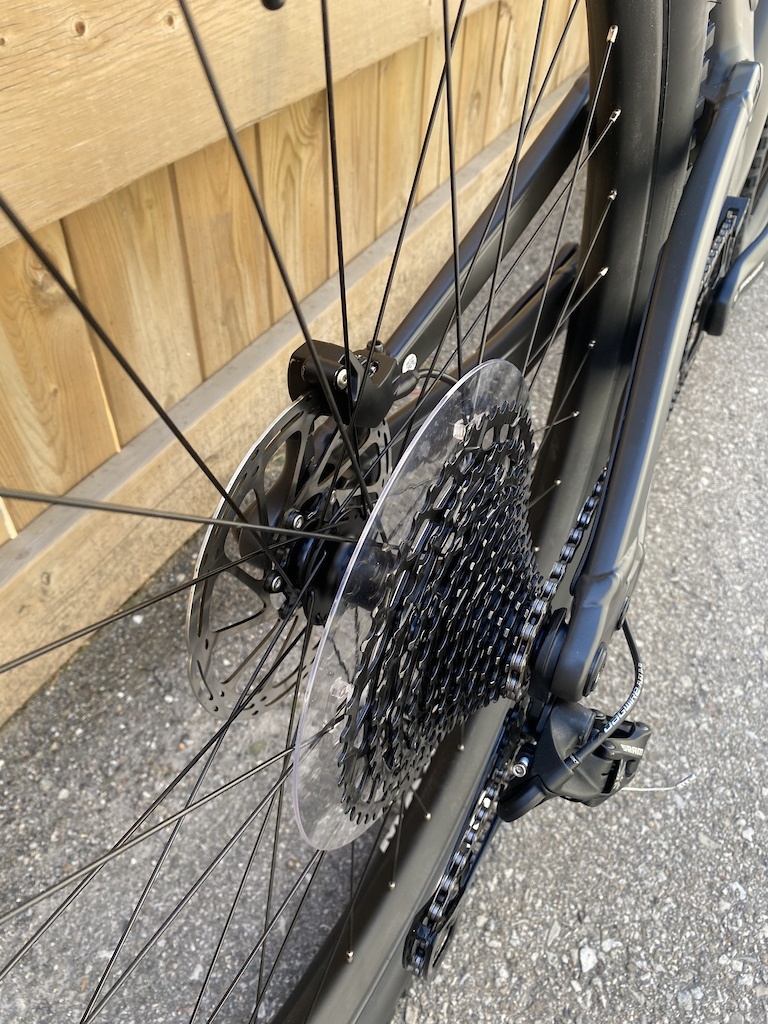

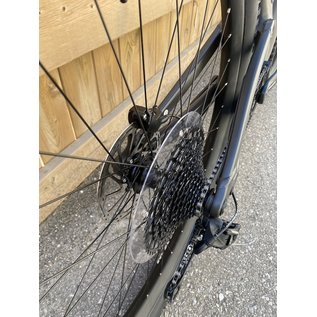

CASSETTE
SRAM SX-PG1210 / 11-50 T
-
BRAKES
SRAM DB8 4 Piston Disc
-
ROTOR
SRAM Centerline CL Rotors 200/F and 180/R
-

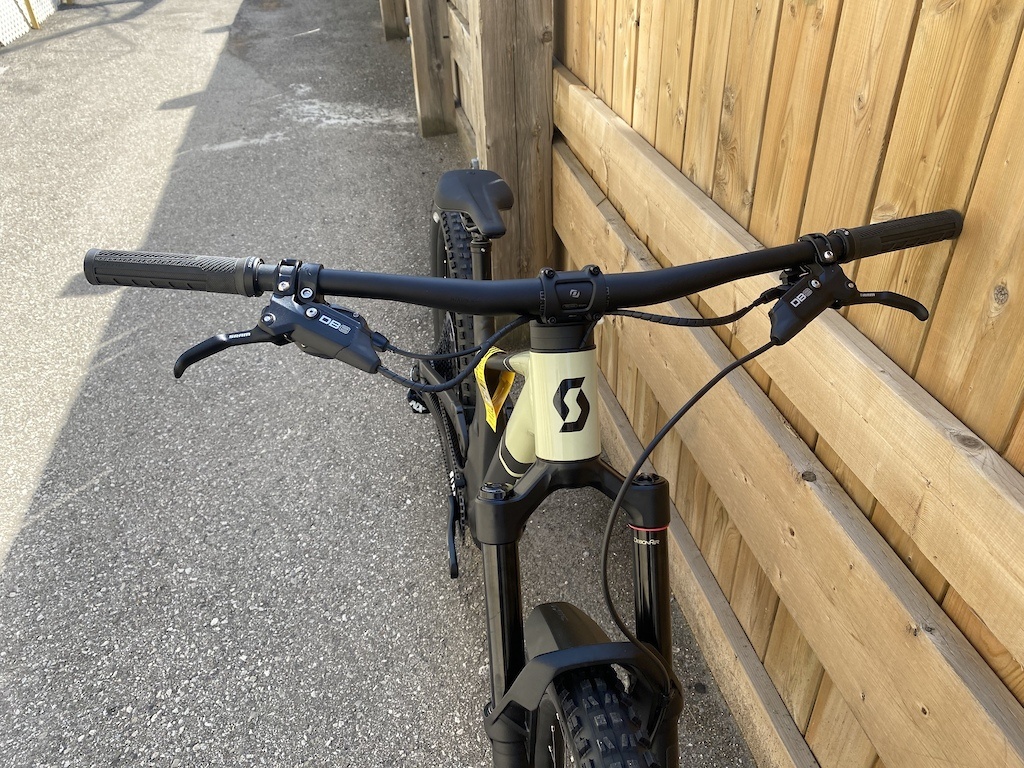

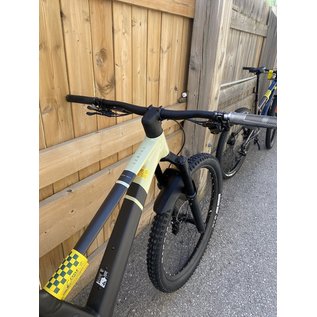

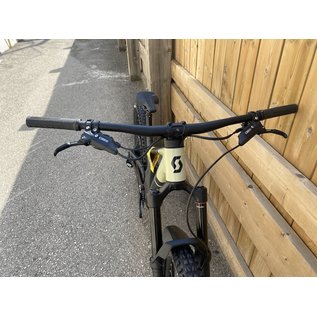

HANDLEBAR
Syncros Hixon 2.0 Alloy 6061 D.B.
12mm Rise / back sweep 8° / 780mm
Syncros Endurance lock-on grips
-
H'STEM
Syncros AM 2.0
Syncros Cable Integration System
4° rise / 6061 Alloy / 31.8mm / 1 1/8"
-

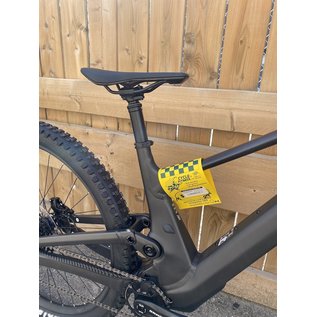

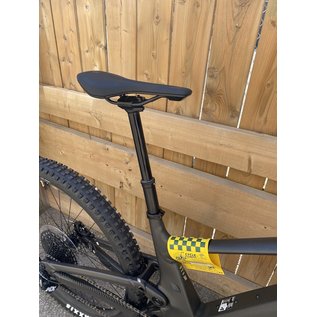

SEATPOST
Syncros Duncan Dropper Post 1.5
31.6mm / S size 140mm / M size 160mm
L size 170mm / XL size 200mm
-
HUB (FRONT)
Formula CL-811 / 15x110mm
-
HUB (REAR)
Formula CL-148S / 12x148mm
-
SPOKES
Stainless Black 15G / 1.8mm
-
RIMS
Syncros X-30S / 32H / 30mm / Sleeve Joint
-
FRONT TIRE
Maxxis Minion DHF / 60TPI Foldable
Tubeless Ready / EXO
-
REAR TIRE
Maxxis Dissector / 60TPI Foldable
Tubeless Ready / EXO
-
EXTRAS
Syncros Fork Fender
-
APPROX WEIGHTS IN KG
15.8 (Tubeless setup)
-
APPROX WEIGHTS IN LBS
34.83 (Tubeless setup)
-
MAX. SYSTEM WEIGHT
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
