DESCRIPTION

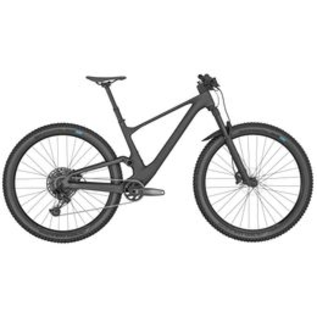

When you think of the perfect mountain bike, what comes to mind? For us, it's the Spark 940. Why, you ask? Well, beyond the fact that it is fast, lightweight and ultra capable on all sorts of terrain, it's just damned good lookin'. Short-travel trail bike? "Downcountry" rig? Occasional race bike? Whatever, call it what you want to call it. All we know is that this is one hell of a mountain bike.
FEATURES
- EVO-LAP Carbon Layering Technology
- Adjustable Head Tube Angle
- Fully Integrated Cabling
- Patented Integrated Rear Shock
- Easy Access Rear Shock Panel
- Single Pivot Rear Suspension Layout
- Rear Axle Multi Tool
GEOMETRY: SIZE MEDIUM
| HEAD TUBE ANGLE |
65.8 ° |
| HEAD TUBE LENGTH |
90 MM |
| TOP TUBE HORIZONTAL |
589 MM |
| STAND OVER HEIGHT |
767 MM |
| BB OFFSET |
-43.5 MM |
| BB HEIGHT |
331.5 MM |
| WHEEL BASE |
1174 MM |
| BB CENTER TO TOP TUBE CENTER |
|
| BB CENTER TO TOP OF SEAT TUBE |
440 MM |
| SEAT ANGLE |
75.9 ° |
| CHAIN STAY |
437.5 MM |
| REACH |
440 MM |
| STACK |
607.5 MM |
| STEM LENGTH |
60 MM |
| TRAIL |
107 MM |
| FORK LENGTH |
540 MM |
| MAXIMUM SEAT POST INSERTION |
175 MM |
| CRANK LENGTH |
175 MM |
BUILD SPEC:
-
FRAME
Spark Carbon HMF Mainframe with Alloy 6011 Swingarm
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline
-
FORK
RockShox Pike RL3 Air
Custom Charger 3-Mode Damper
15x110mm Maxle Lite / 44mm offset / Tapered steerer
Lockout / Reb. Adj. / 130mm travel
-
REAR SHOCK
RockShox Deluxe Select RL3 Trunnion
3 modes / Lockout-Trail-Descend
Debon Air / Reb. Adj.
Travel 120mm / T165X45mm
-
REMOTE SYSTEM
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes
-
REAR DERAILLEUR
SRAM NX Eagle 12 Speed
-
SHIFTERS
SRAM SX Eagle Trigger
-
CRANKSET
SRAM X1 Eagle DUB
55mm CL / 32T
-
BB-SET
SRAM DUB PF 92 MTB Wide / shell 41x92mm
-
CHAIN
SRAM CN NX Eagle
-
CASSETTE
SRAM SX-PG1210 / 11-50 T
-
BRAKES
Shimano MT501 Disc
-
ROTOR
Shimano SM-RT54 CL / F&R 180mm
-
HANDLEBAR
Syncros Fraser 2.0 DC Alloy 6061 D.B.
mini Rise / back sweep 8° / 760mm
Syncros Performance XC lock-on grips
-
H'STEM
Syncros DC 2.0
Syncros Cable Integration System
0° rise / 6061 Alloy / 31.8mm / 1 1/8"
-
SEATPOST
Syncros Duncan Dropper Post 2.5
31.6mm / S & M size 125mm / L size 150mm / XL size 170mm
-
SEAT
Syncros Tofino 2.5 Regular
-
HEADSET
Syncros - Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB
-
HUB (FRONT)
Formula CL-811 / 15x110mm
-
HUB (REAR)
Formula CL-148S / 12x148mm
Syncros Axle w/Removable Lever
with 6mm Allen, T30 and T25 Tools
-
SPOKES
Stainless Black 15G / 1.8mm
-
RIMS
Syncros X-30SE / 32H / 30mm
Tubeless ready
-
FRONT TIRE
Schwalbe Wicked Will 29x2.4" EVO
Super Ground / TLE / 67EPI / Addix Speed Grip
-
REAR TIRE
Schwalbe Wicked Will 29x2.4" EVO
Super Ground / TLE / 67EPI / Addix Speed Grip
-
APPROX WEIGHTS IN KG
13.6 (Tubless setup)
-
APPROX WEIGHTS IN LBS
29.98 (Tubless setup)
-
MAX. SYSTEM WEIGHT
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
