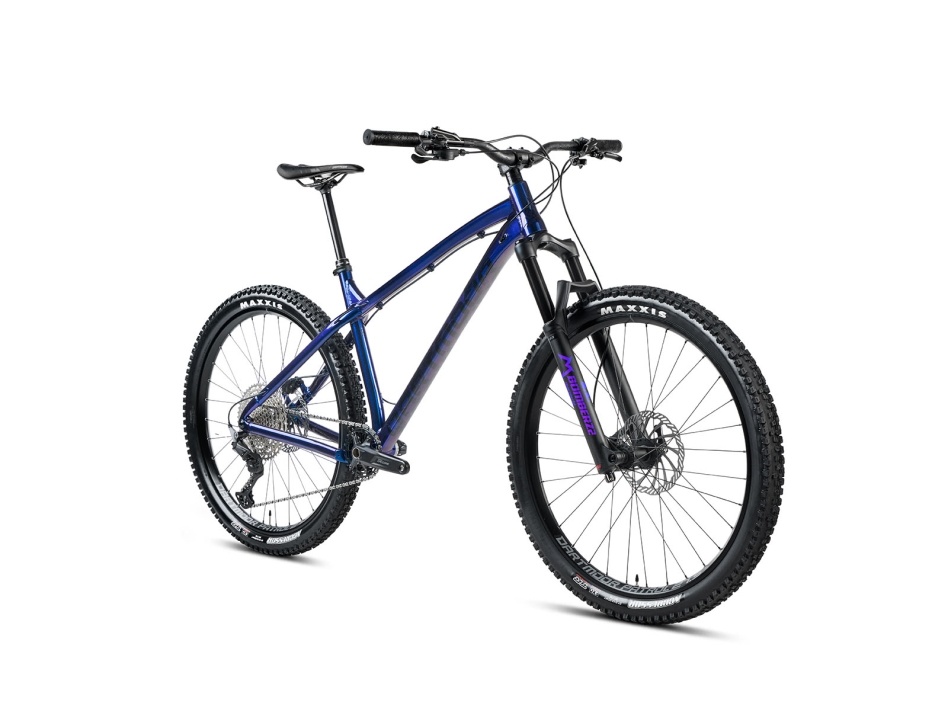

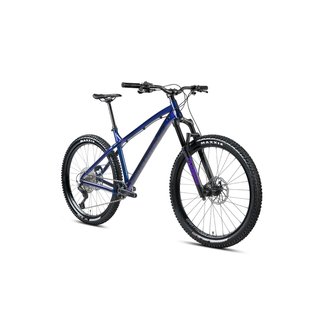

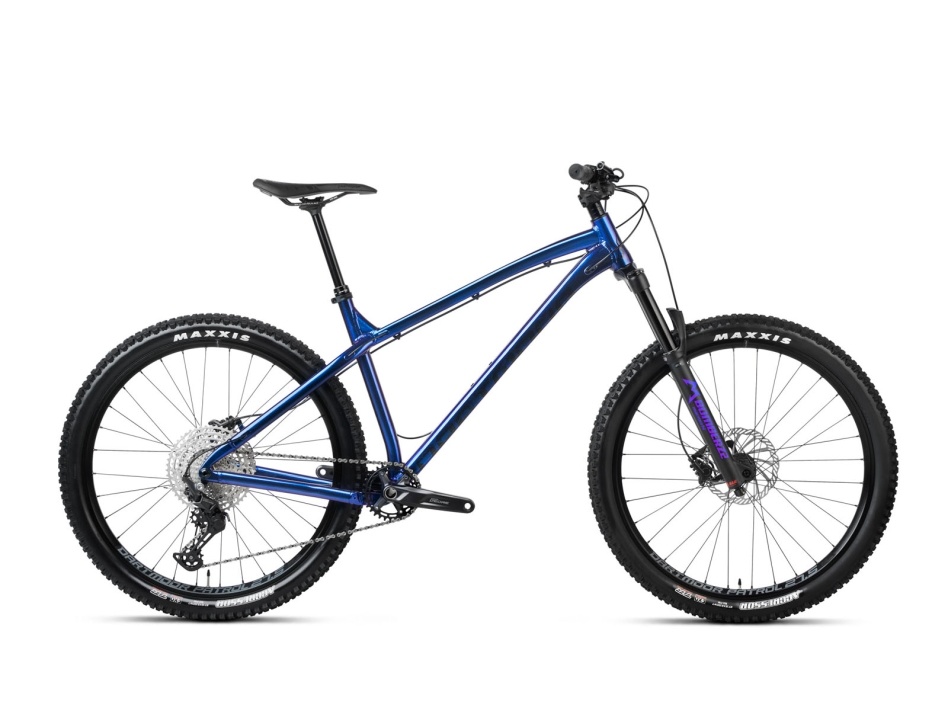

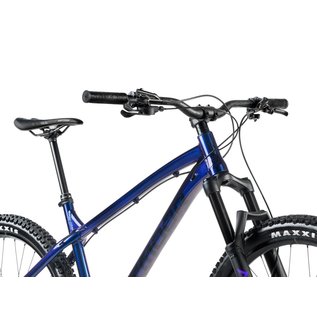

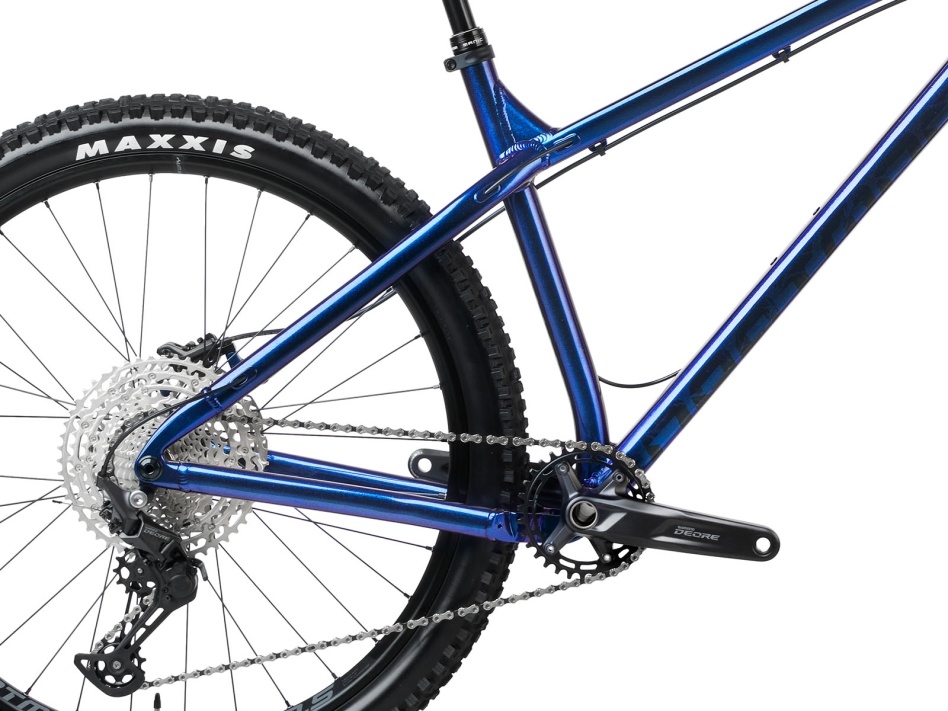

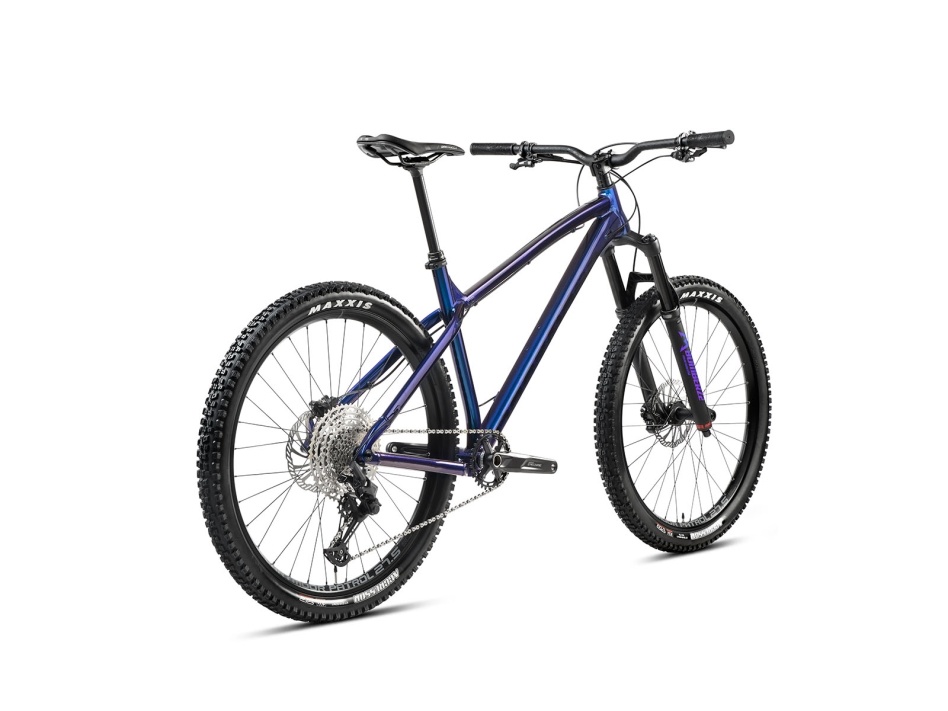

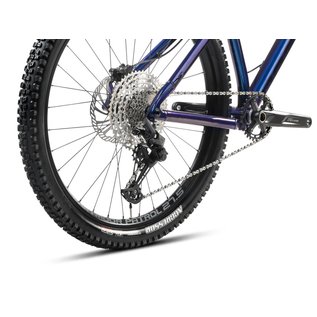

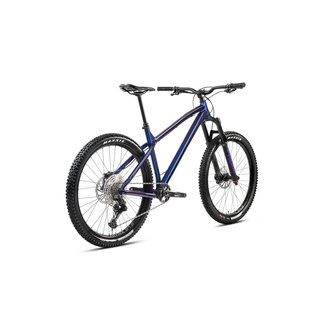

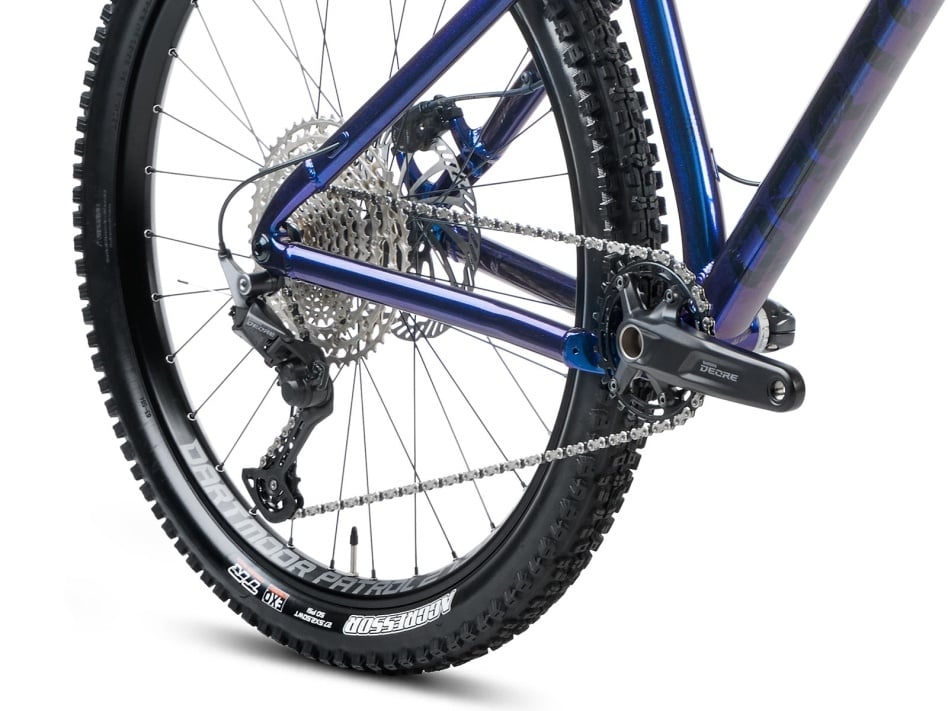

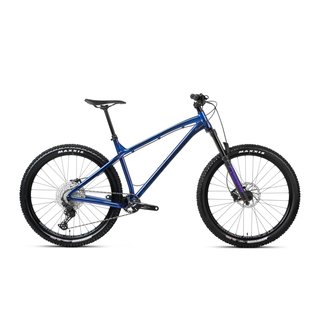

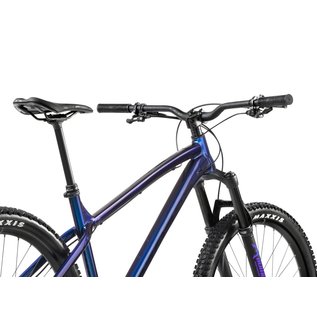

One of the most versatile bikes in the Dartmoor lineup. Perfect choice for riders looking for everything best in mountain biking like downhills, uphills, trail discovering, jumps, and even pumptrack and cornering. 27.5-inch wheels give more fun on single tracks, technical sections, or while having fun at the local bike parks. Pro versions of Primals have everything you need: a wide-range cassette, a dropper post, top performance fork, and reliable disc brakes.
MAIN FEATURES
COLOR
glossy Cosmic
FRAME SIZE
Small, Medium, Large
FRAME
glossy Cosmic, AL 6061-T6
FORK

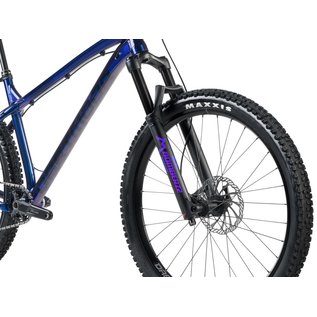

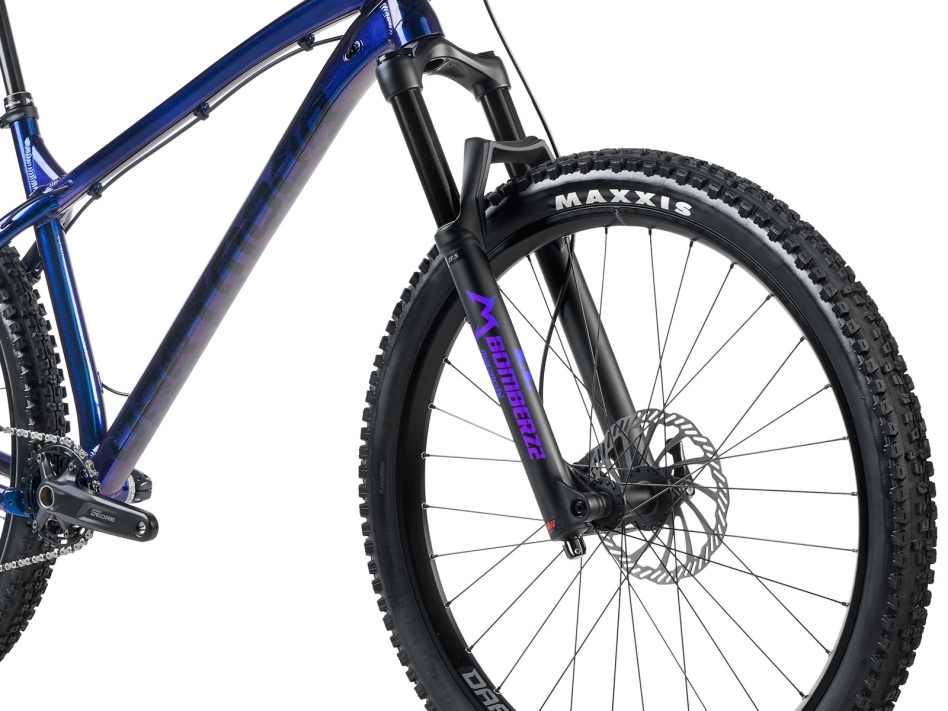

Marzocchi Bomber Z2 27.5", Boost, travel 140mm, axle 15mm, tapered
HEADSETS
Dartmoor Blink OEM
DERAILLEUR

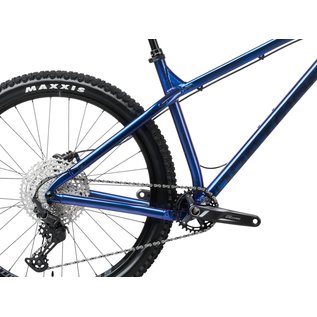

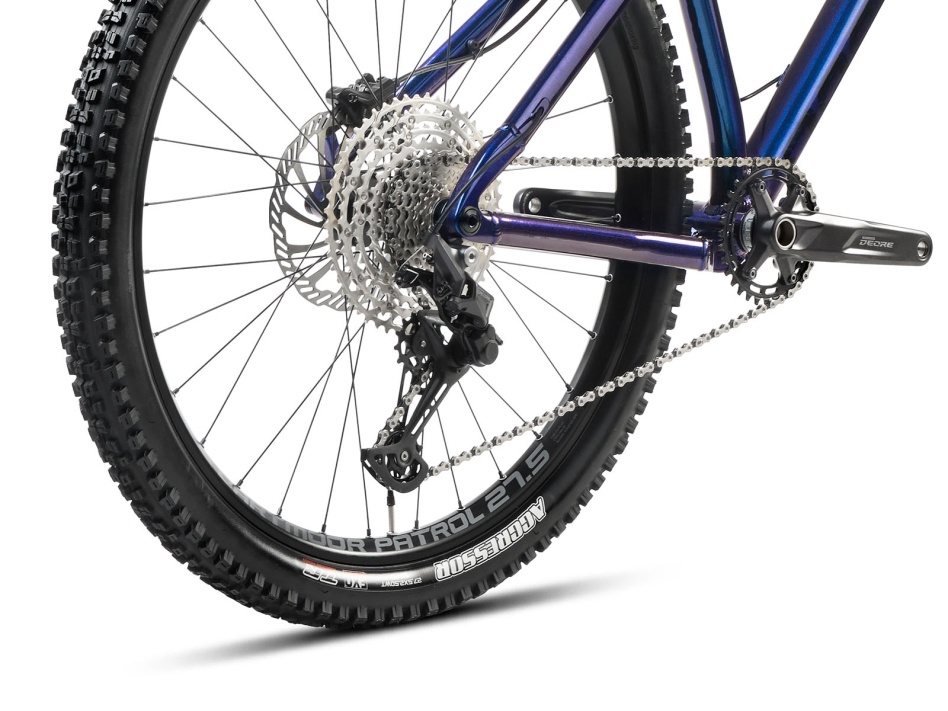

Shimano Deore M5100 1X11
SHIFTER
Shimano Deore M5100-R, 11–speed
BRAKES
Shimano Deore MT-500, 2-piston brakes, rotors 180mm
CRANKSET
Shimano Deore FC-5100
CHAINRING
32T, BCD 96mm
CASSETTE
Shimano Deore M5100-11, 11-51T
CHAIN
KMC X11
PEDALS
without
RIMS
Dartmoor Patrol 27.5", 32H, F/V, tubeless ready
FRONT HUB
Dartmoor Reel Boost 110x15mm, 32H
REAR HUB
Dartmoor Reel Boost 148x12mm, 32H
TIRES
Maxxis Aggressor 27.5X2.5, Foldable, EXO/TR
HANDLEBAR

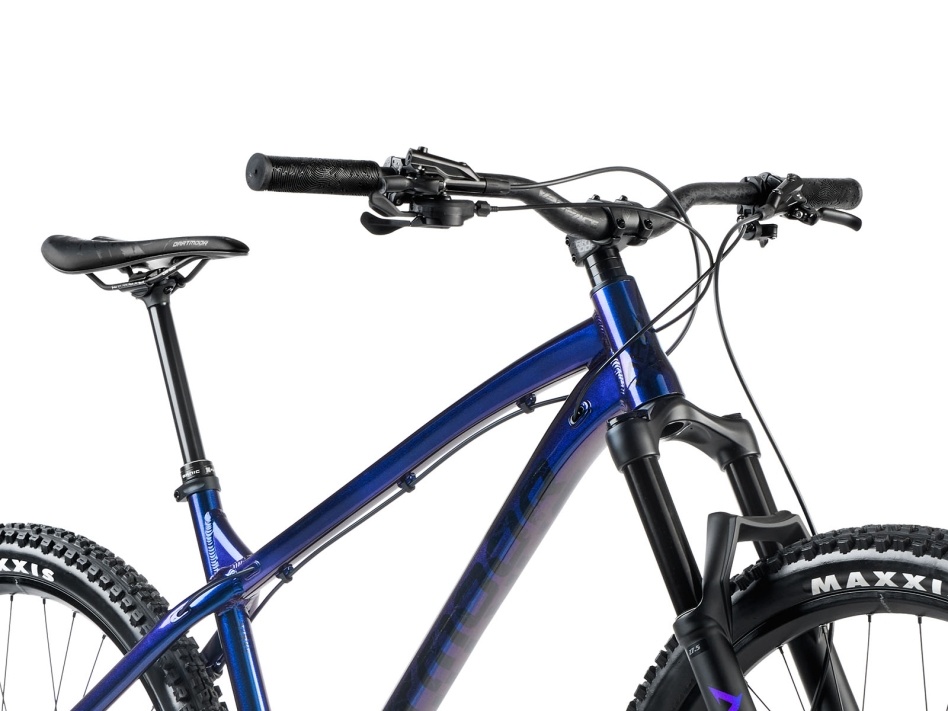

Race Face Atlas 785mm, Ø31.8mm, rise 1.5"
STEM
Dartmoor Viper, Ø31.8mm
GRIPS
Dartmoor Maze
SADDLE
Dartmoor Leaf Pro
SEATPOST
X-Fusion Manic, travel 170mm (L) / 150mm (M)/ 125mm (S), Ø30.9mm
WEIGHT
13.70kg (w/o pedals)
| size | reach (mm) | stack (mm) | ST (mm) | TT (mm) | eTT (mm) | CS (mm) | HT (mm) | HT angle (°) | eST angle (°) | BB drop (mm) | WB (mm) | stand-over (mm) | wheel size (") | hub size (mm) | headset type (S.H.I.S) | BB type (mm) | post diam. (mm) | clamp diam. (mm) | brake mount | max. rotor size (mm) |
| MEDIUM | 445 | 622 | 430 | - | 621 | 418 | 120 | 65 | 72 | 47 | 1169 | 774 | 27.5 | 148x12 | IS42/IS52 | BSA/Euro73 | 30.9 | 34.9 | PM 180mm | 180 |
