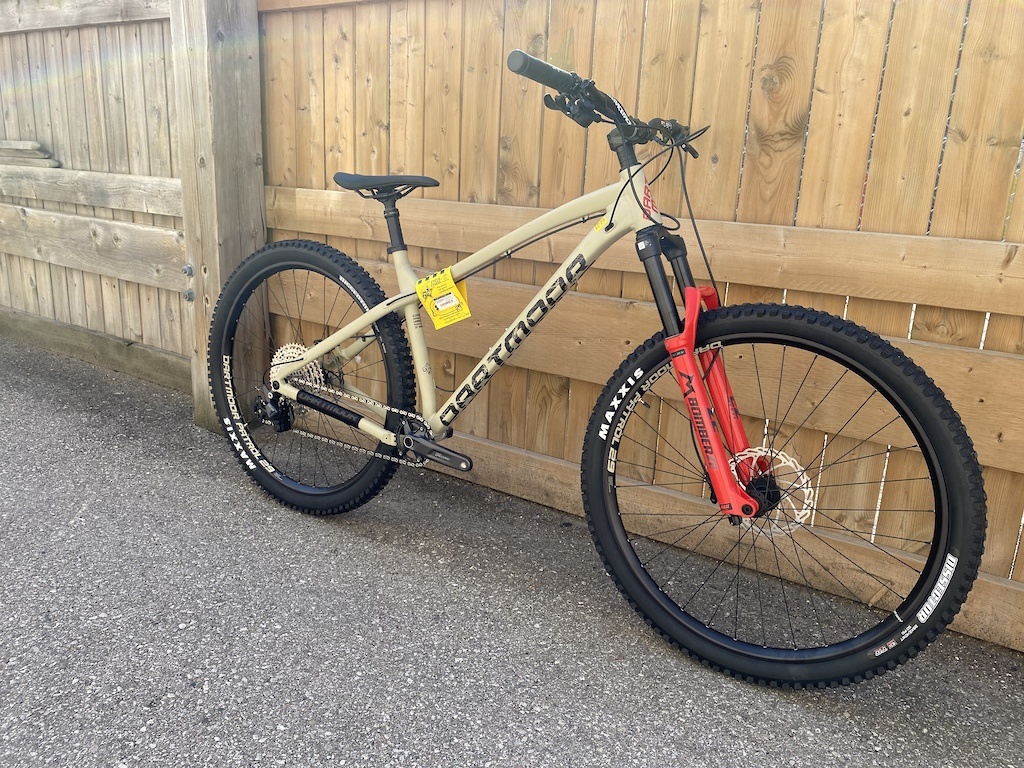

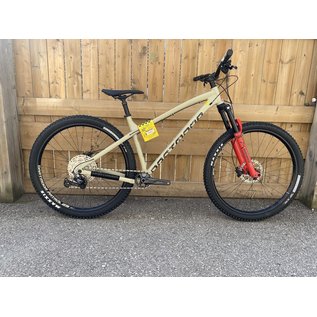

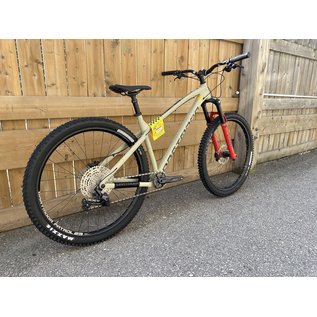

DARTMOOR PRIMAL PRO 29" L SANDSTORM

Quantity: 1
FRAME
AL 6061-T
WEIGHT
13.60KG
WHEEL SIZE
29"
FORK TRAVEL
140MM
DESCRIPTION

One of the most versatile bikes in the Dartmoor lineup. Perfect choice for riders looking for everything best in mountain biking like downhills, uphills, trail discovering, jumps, and even pumptrack and cornering. Bigger 29-inch wheels will be a better choice for riders choosing longer trips and trail riding. Pro versions of Primals have everything you need: a wide-range cassette, a dropper post, top performance fork, and reliable disc brakes.


MAIN FEATURES

  • A new version of Primal frame with redesigned tubes, updated geometry, and SRAM UDH hanger
  • One of the best forks for trail bikes – Marzocchi Bomber Z2 
  • 11-speed Shimano Deore 5100 drivetrain with Shimano 11-51T cassette
  • Shimano MT-500 brakes
  • High-quality Maxxis Dissector 29x2.4 tires with EXO protection
  • X-Fusion Manic dropper post
  • Our custom designed, tubeless-ready Patrol rims with 30mm inner width and sleeved joint
  • 31.8mm cockpit with 785mm wide Race Face Atlas handlebar and new, compact Viper stem

SPECIFICATION

COLOR

matt Sand Storm

FRAME SIZE

Medium, Large, XLarge

FRAME

matt Sand Storm, AL 6061-T6

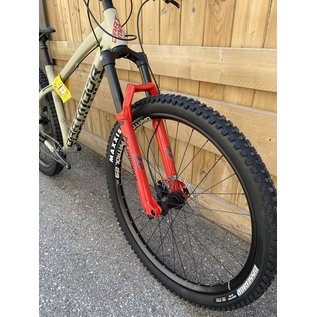

FORK

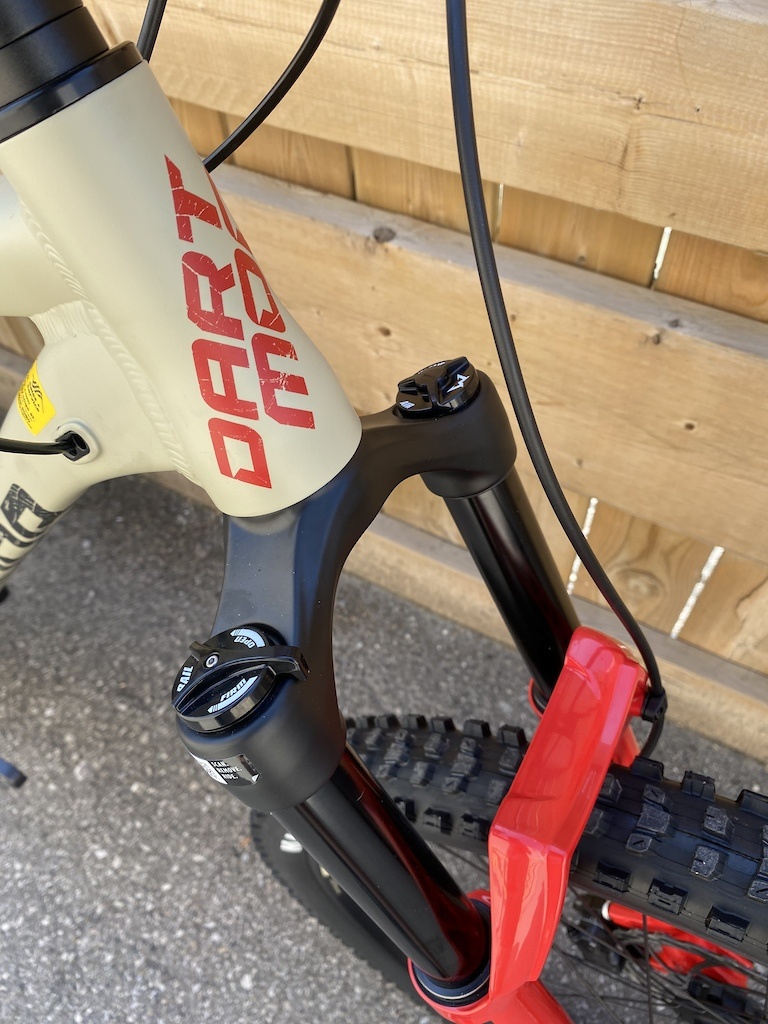

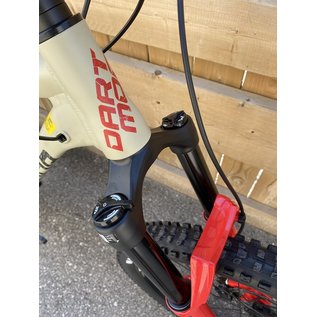

Marzocchi Bomber Z2 29", Boost, travel 140mm, axle 15mm, tapered

HEADSETS

Dartmoor Blink OEM

DERAILLEUR

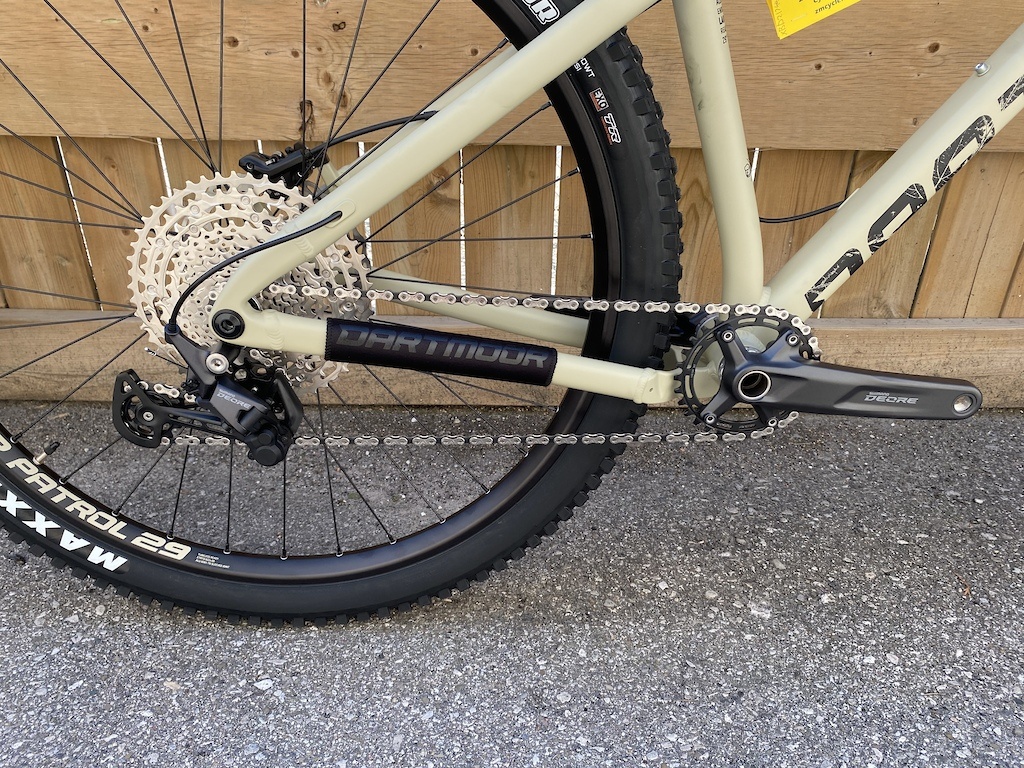

Shimano Deore M5100 1X11

SHIFTER

Shimano Deore M5100-R, 11–speed

BRAKES

Shimano Deore MT-500, 2-piston brakes, rotors 180mm

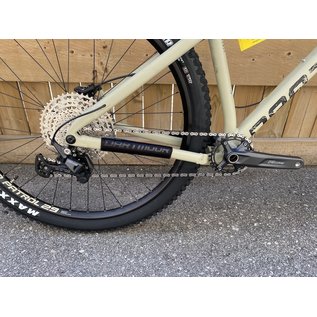

CRANKSET

Shimano Deore FC-5100

CHAINRING

30T, BCD 96mm

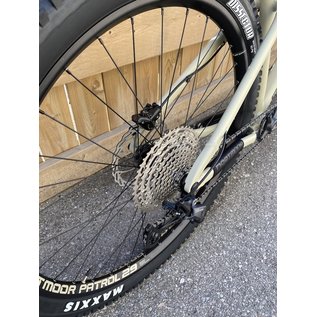

CASSETTE

Shimano Deore M5100-11, 11-51T

CHAIN

KMC X11

PEDALS

without

RIMS

Dartmoor Patrol 29", 32H, F/V, tubeless ready

FRONT HUB

Dartmoor Reel Boost 110x15mm, 32H

REAR HUB

Dartmoor Reel Boost 148x12mm, 32H

TIRES

Maxxis Dissector 29X2.4, WT, Foldable, EXO

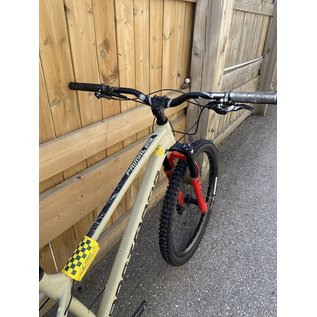

HANDLEBAR

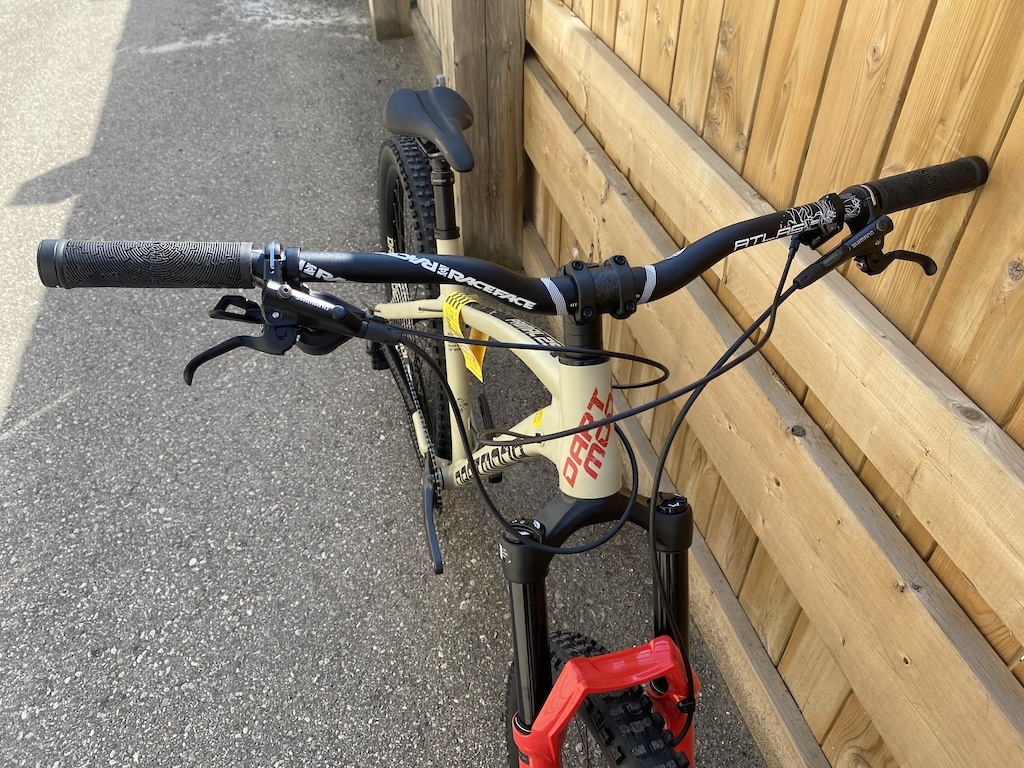

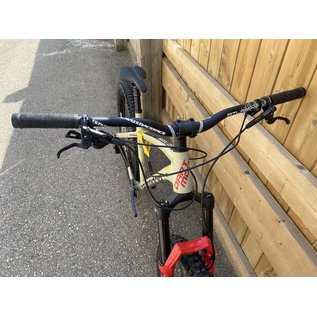

Race Face Atlas 785mm, Ø31.8mm, rise 1.5"

STEM

Dartmoor Viper, Ø31.8mm

GRIPS

Dartmoor Maze Lite

SADDLE

Dartmoor Leaf Pro

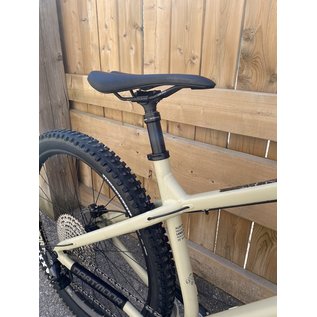

SEATPOST

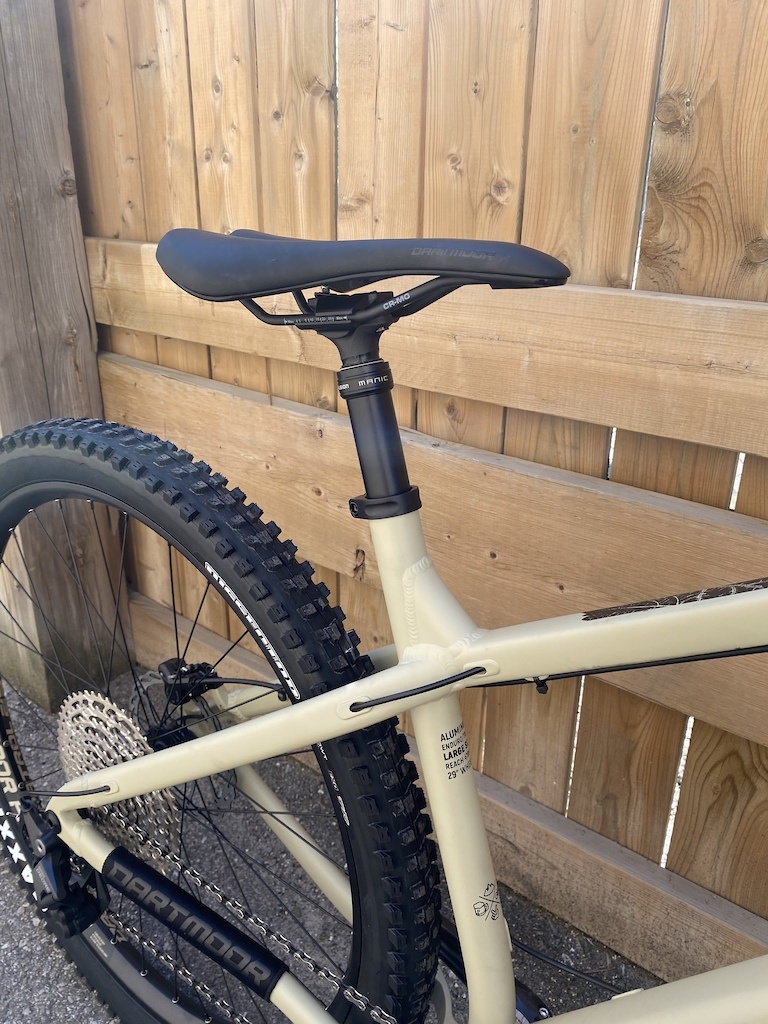

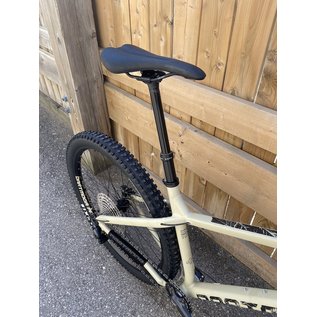

X-Fusion Manic, travel 170mm (XL, L) / 150mm (M), Ø30.9mm

WEIGHT

13.60kg (w/o pedals)



size reach (mm) stack (mm) ST (mm) TT (mm) eTT (mm) CS (mm) HT (mm) HT angle (°) eST angle (°) BB drop (mm) WB (mm) stand-over (mm) wheel size (") hub size (mm) headset type (S.H.I.S) BB type (mm) post diam. (mm) clamp diam. (mm) brake mount max. rotor size (mm)
LARGE 470 652 465 - 657 432 120 65 72 62 1219 800 29 148x12 IS42/IS52 BSA/Euro73 30.9 34.9 PM 180mm 180
