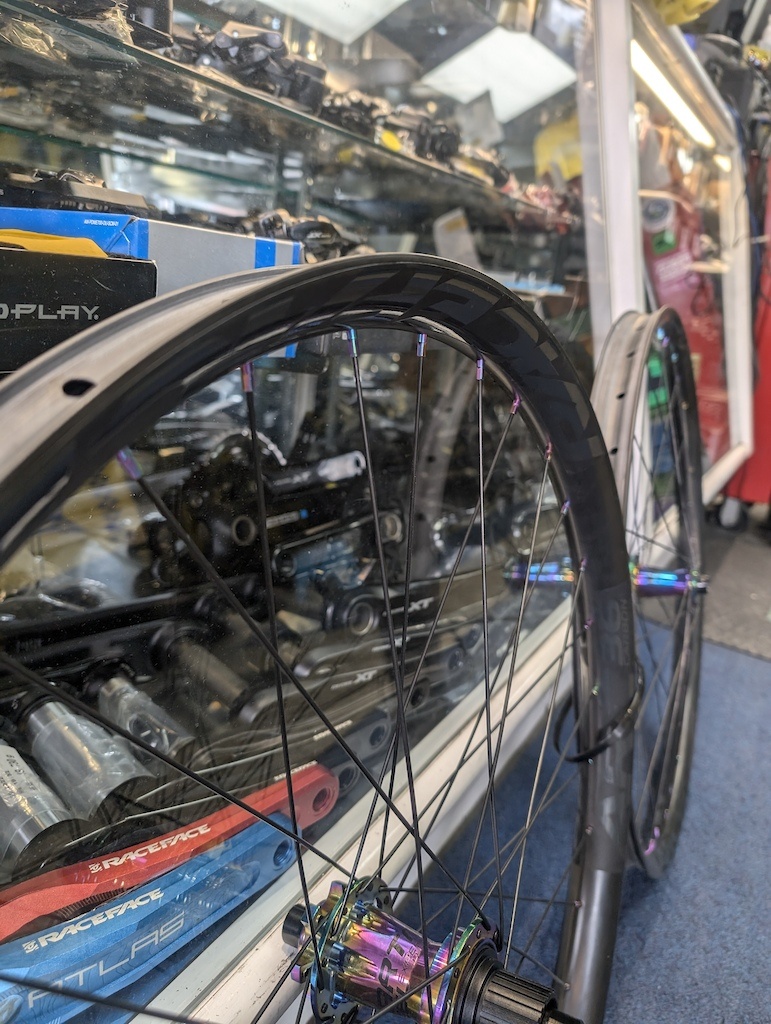

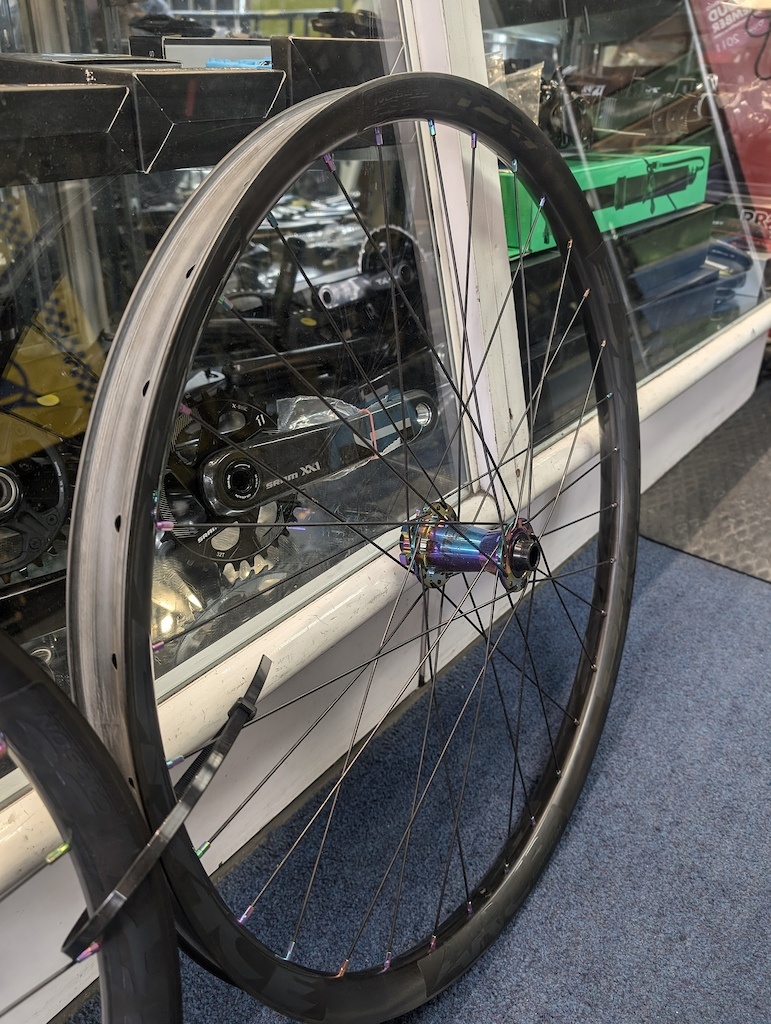

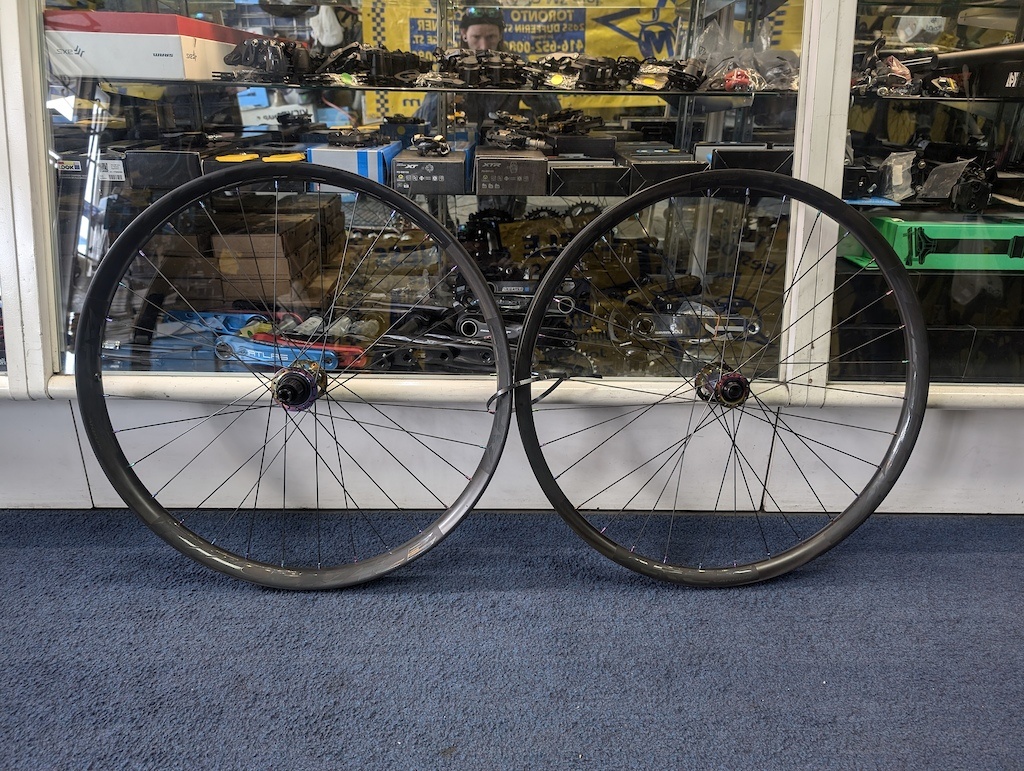

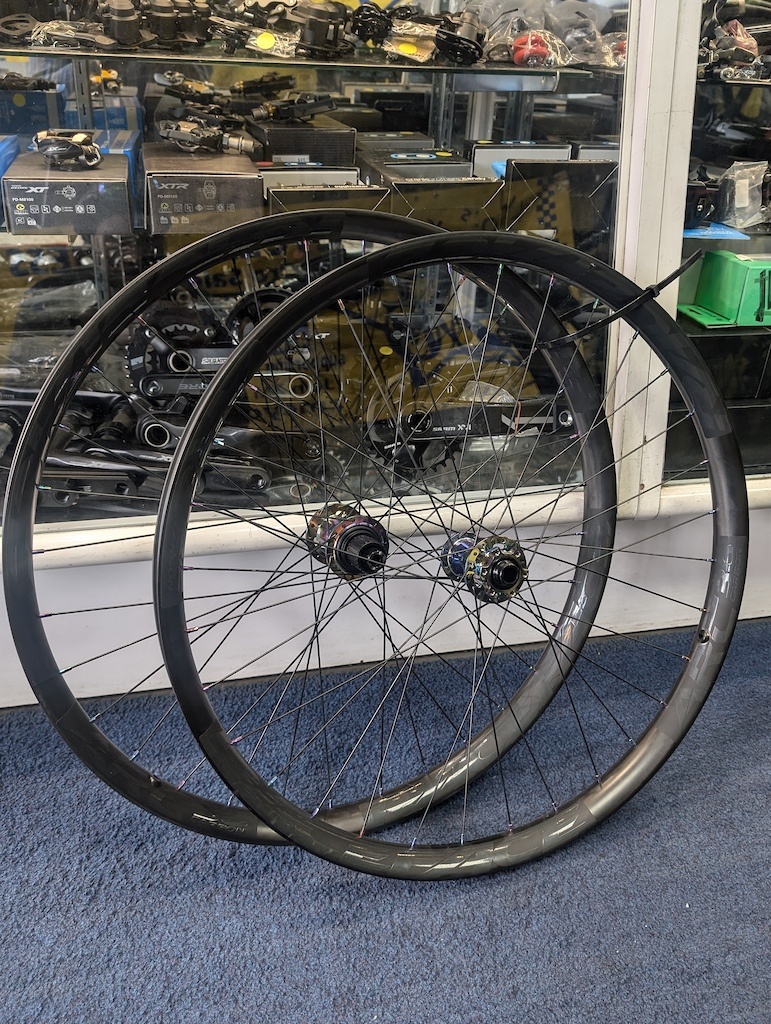

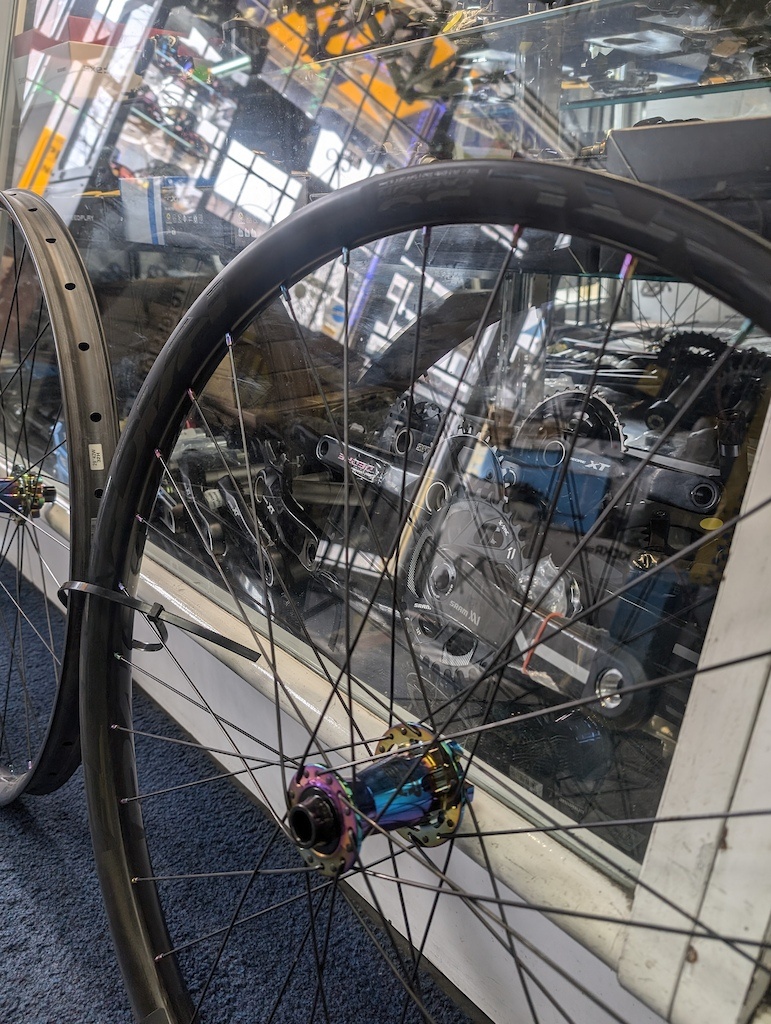

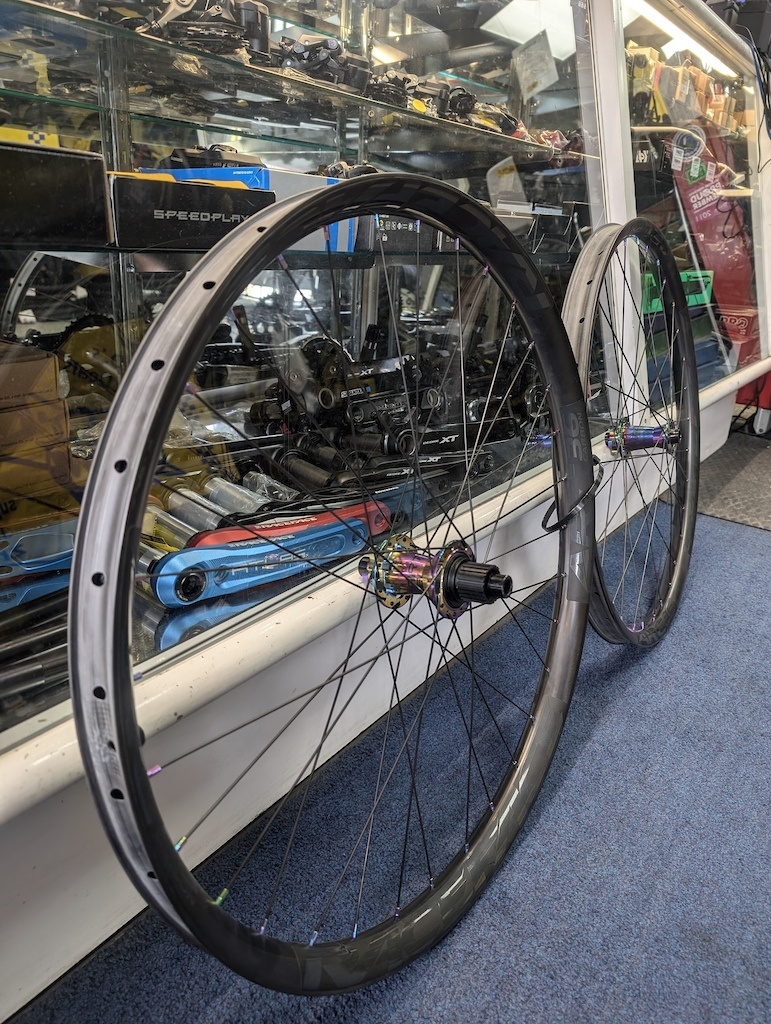

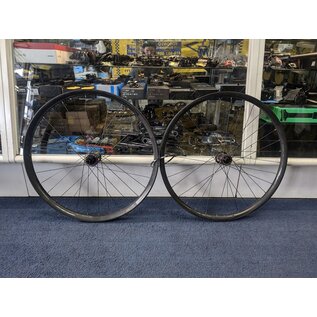

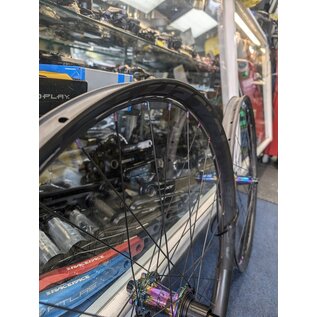

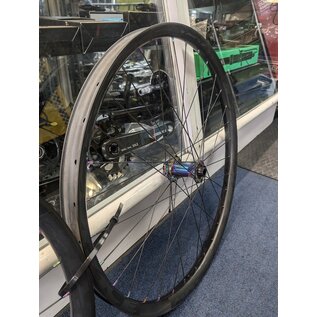

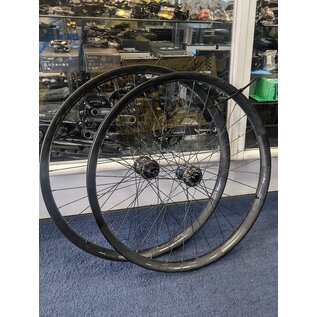

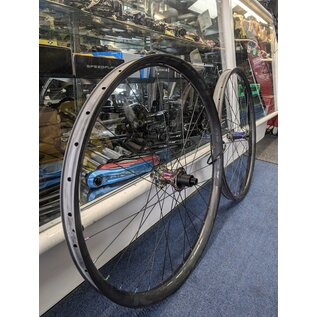

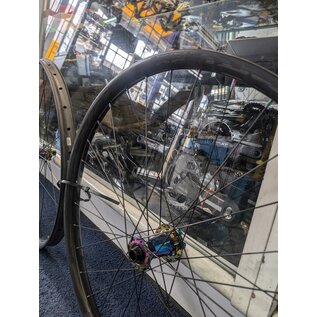

Custom Race Face Dartmoor 29" Wheel set
Race Face Arc 36 Offset Carbon 29" 32H

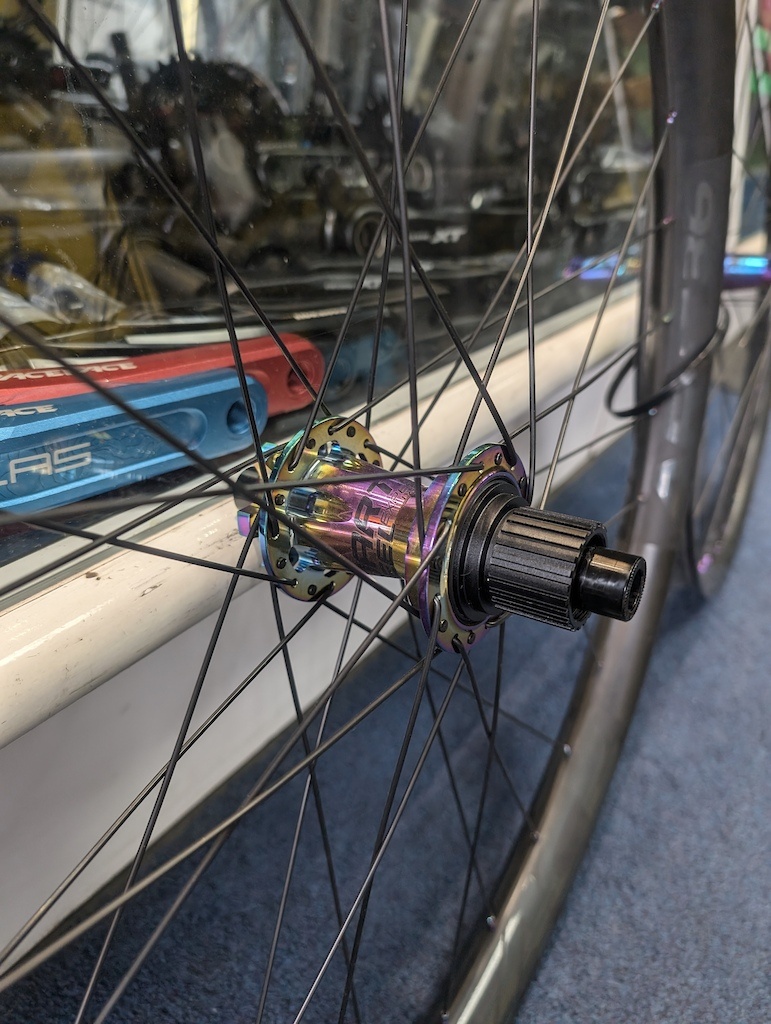

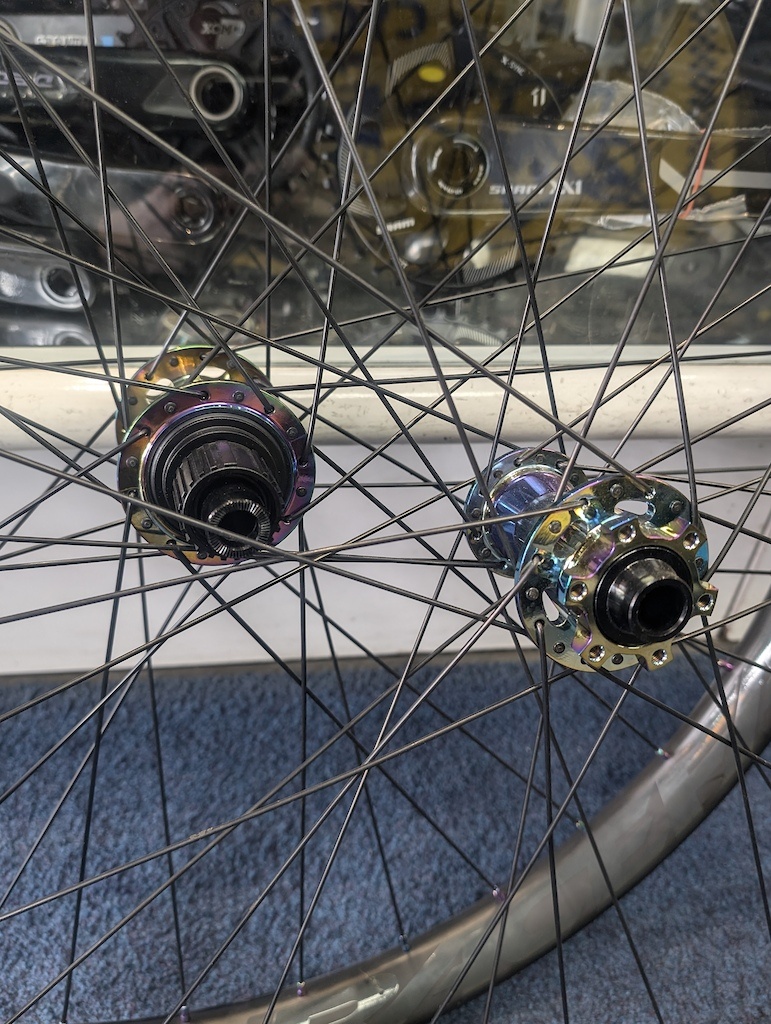

Dartmoor Reel Expert Boost Oil Slick Hubs
DT Swiss J Bend Champ's Spokes
TLC Brass 14mm OilSlick Nipples
| Quantity: | 1 |
DESCRIPTION
We are Back at it again with another bomb proof Wheel-Set sparing no expense with our best selling colour combo on absolute beast of a rim. With newly designed Dartmoor Hubs Stronger and lighter Capable of supporting your Shimano 12 Speed Drivetrain allowing you to run your Favorite Front and Rear Tire Combo. Easily opt for tubeless set up with Seamless UD Carbon rims and a shallow spoke bed for almost effortless tire set up.
Whether its the switch back single track trails in the Don or taking on the Big Mountain out west get a wheel set that can do it all while looking Clean.
FEATURES
RIMS:
Full Spin
The Right Material For The Job
To Tube Or Not To Tube

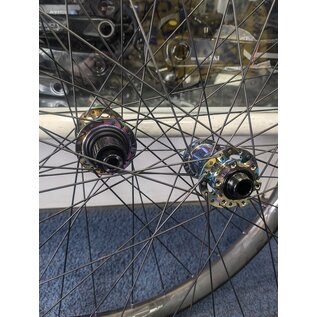

HUBS:
SPOKES & NIPPLES
Both the front and back wheel are laced with the tried and true industry Classic, Dt Swiss Champion J Bend 2.0 Black Spokes paired a fresh batch of TLC Bike Brass Anodized 14mm Oil slick Nipples to keep it all together while looking Fresh & Clean on whatever trial your riding.
WARRANTY:
Both the Rims and Hubs used in this Custom build come with the full manufactures warranty
The Race Face Rims used come with a lifetime warranty for more information please visit https://www.raceface.ca/pages/lifetime-warranty
Where as the Dartmoor Hubs are covered by a standard 1 year warranty
SERVICE CLAUSE:
If you buy any Custom Wheel built by us whether sold online or custom built In-store at your request you will get 2 month or 60 day free service clause for re-truing, re-tensioning & re-dishing both the front and rear wheels.
Terms & Conditions apply Please contact us to learn more.
SPECS
RIMS:
| Material | UD carbon |
| Available Diameters | 27.5", 29" |
| Available Internal Rim Width | 31 mm, 36 mm |
| Available Spoke Count | 28, 32 |
| Tubeless Ready | Yes |
| Rim ERD | 554 mm (27.5" rim) |
| Rim Height | 24 mm |
| Rim Offset | 4.5 mm (31 mm & 36 mm internal rim widths) |
| Ext Rim Width | 37 mm (31 mm internal rim width) |
HUBS: FRONT
WEIGHT 189g (110x15mm)
FRONT HUB Yes
COLORS Petrol;
SIZES 110x15mm;
HOLES 32H
BEARINGS TYPE 2x6804
BEARINGS SIZE 2 precision sealed bearings with high density grease and full contact LLU sealings
HUB-SHELL AL 6061–T6
CONES AL 7075-T6

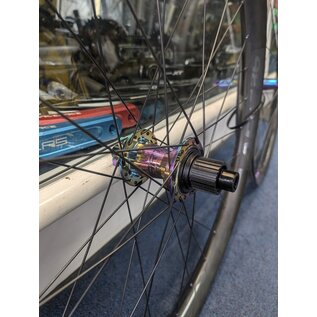

REAR:
WEIGHT 298g
REAR HUB Yes
COLOR Petrol
SIZES 148x12mm
HOLES 32H
BEARINGS TYPE Body: 2x15267 and 1x6902, freehub Shimano Microspline:
BEARINGS SIZE Precision-sealed bearings with high-density grease and full-contact LLU sealings
HUB-SHELL AL 6061-T6
AXLE 15mm, hard-anodized AL 7075-T6 or Cr-Mo steel
CONES AL 7075-T6, push-in (both sides)
FREEHUB AL-7075: Shimano Microspline
PAWLS 6 pawls with 6 individual springs
ENGAGEMENT POINTS 108
