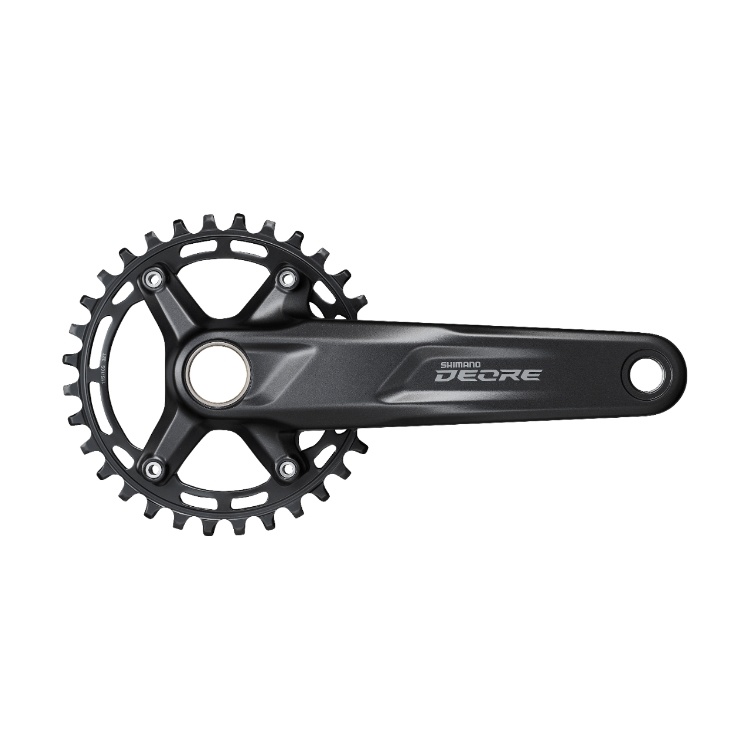

SHIMANO DEORE 2-PIECE CRANKSET for 135 mm, 142 mm and 148 mm O.L.D. Frames 1x11/10-speed
FC-M5100-1
| Quantity: | 1 |
DESCRIPTION
SHIMANO DEORE - MTB Crankset - 2-PIECE CRANKSET - Q-factor 178.5 mm - Chain Line 52 mm - 1x10/11-speed
The SHIMANO DEORE FC-M5100-1 mountain bike crank delivers precise and reliable shifting for 1x10 or 1x11-speed drivetrains.
FEATURES
SPECS
| MODEL NO | FC-M5100-1 |
|---|---|
| SERIES | DEORE M5100 Series |
| Color | Series Color |
| 2-PIECE CRANKSET | ✔ |
| Chainring combination | 30T, 32T |
|---|---|
| Compatible bottom bracket type_Outboard | ✔ |
| Crank fixing screw included | ✔ |
| Crank arm length (mm)_170 | ✔ |
| Crank arm length (mm)_175 | ✔ |
| Spider/Gear arms | 4 |
| Optional chain guard_Without chain/bash guard | ✔ |
| Recommended bottom bracket_Press-fit | BB-MT500-PA |
| Recommended bottom bracket_Threaded (normal) | BB-MT501 |
| Threaded bottom bracket shell width (mm)_68 | ✔ |
| Threaded bottom bracket shell width (mm)_73 | ✔ |
| Q-factor (mm) | 178.5 |
| Chain line (mm) | 52 |
| Compatible chain | HG 11-speed HG-X 10-speed |
| P.C.D. (mm) | 96 |
| Rear speeds | 11/10 |
| O.L.D._QR/Nut (mm) | 135, 141 |
| O.L.D._Thru (mm) | 142, 148 |
