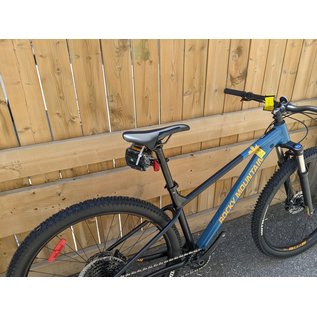

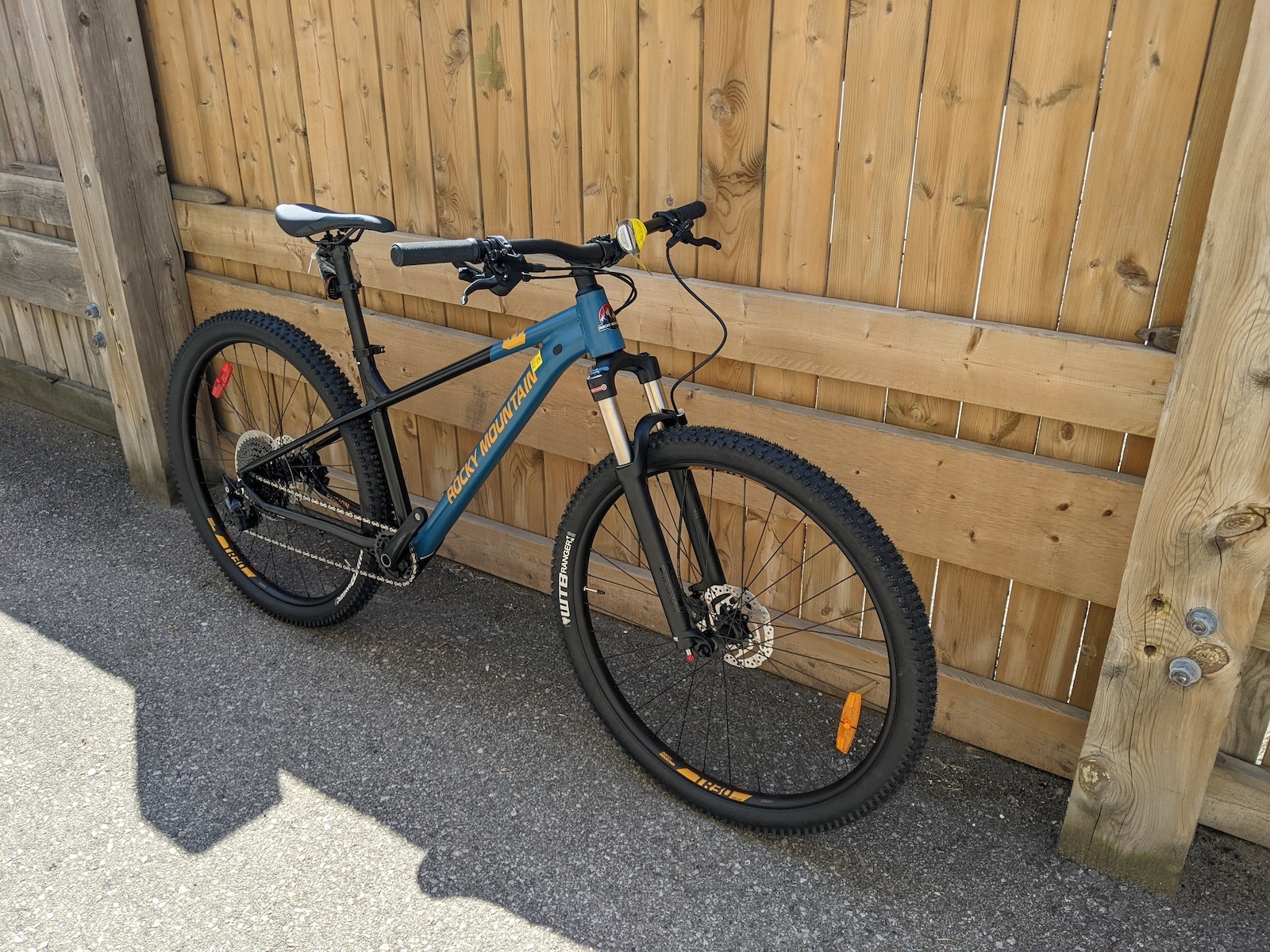

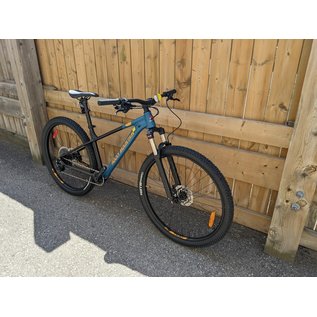

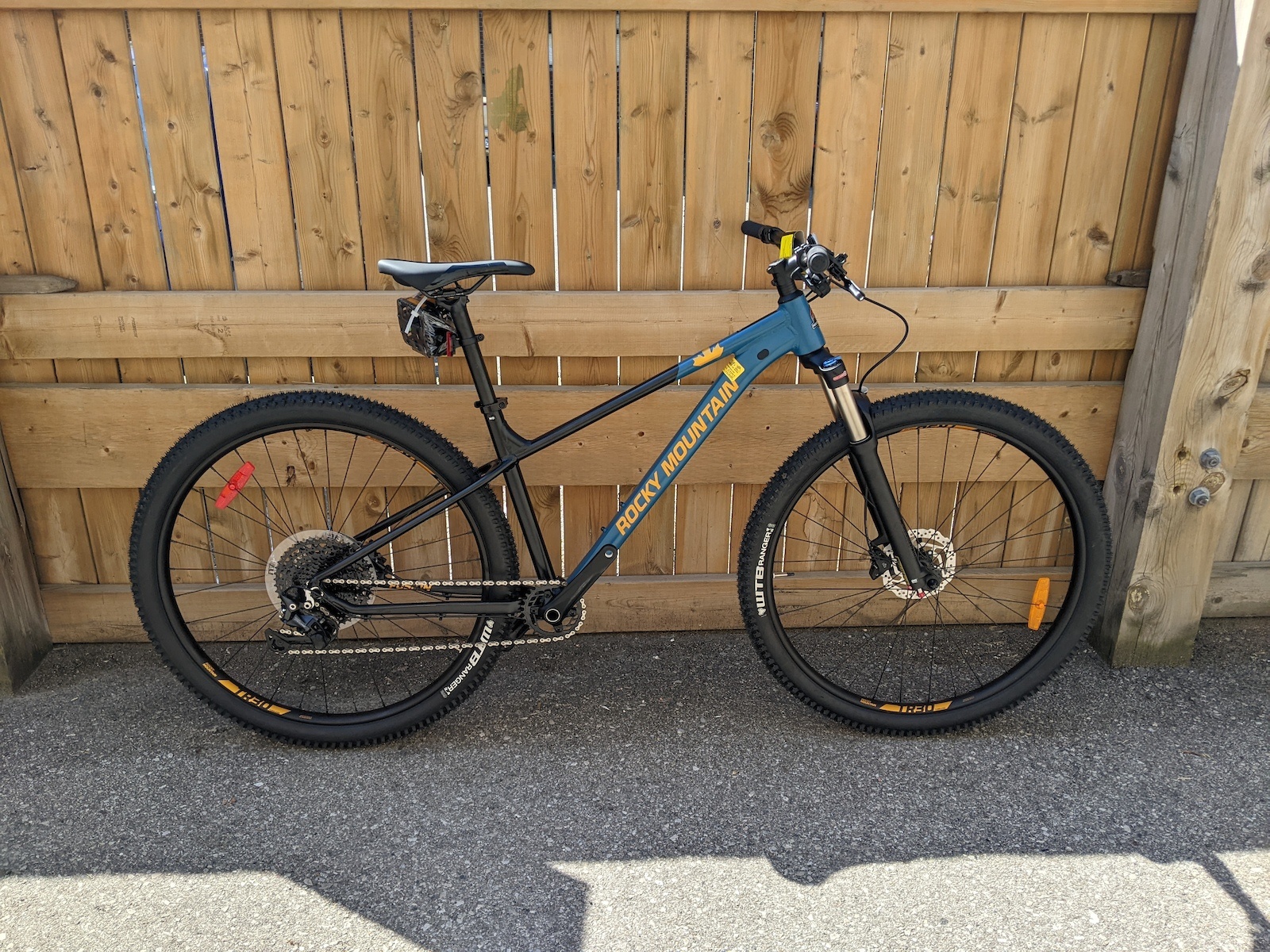

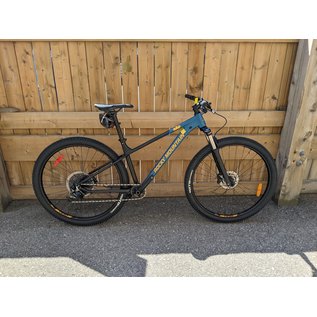

Fusion 30
| Article number: | B0247MD2 |
| Quantity: | 1 |
DETAILED DESCRIPTION
The Fusion is the perfect blend of efficiency, capability, and reliability on the trail. The Fusion’s responsive handling characteristics and comfortable geometry will help you mix up your ride from the pathway, to the trail, and onto the singletrack. The Fusion’s geometry has been optimized to provide you with the best possible experience when heading out for a ride. We’ve updated the geometry to reflect the needs of a true ”downcountry” rider, including 29” wheels, a low standover height, longer reach, and a slacker head tube angle. With features like 100 mm of front travel, internal cable routing, and a 1x drivetrain, the Fusion sits at the top as our best all-around hardtail.
GEOMETRY
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 589 | 616 | 643 | 671 |
| Head Tube Angle (deg) | 66.5 | 66.5 | 66.5 | 66.5 |
| Head Tube Length (mm) | 95 | 100 | 110 | 120 |
| Seat Tube Angle (deg) | 74.5 | 74.5 | 74.5 | 74.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 445 | 445 | 445 | 445 |
| Bottom Bracket Drop (mm) | 60 | 60 | 60 | 60 |
| Reach (mm) | 425 | 450 | 475 | 500 |
| Stack (mm) | 593 | 598 | 607 | 616 |
| Standover Height (mm) | 763 | 776 | 786 | 801 |
| Wheelbase (mm) | 1153 | 1180 | 1209 | 1238 |
SPECIFICATIONS

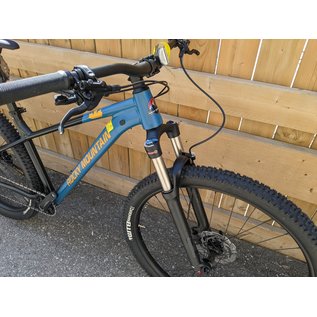

Frame
Rocky Mountain 6061 Alloy. Threaded BB. Zero Stack Tapered Headtube Rear Triangle

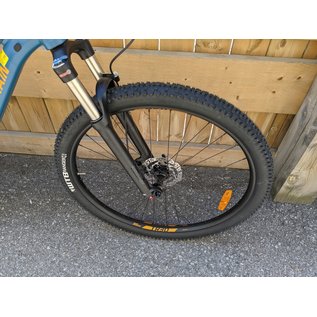

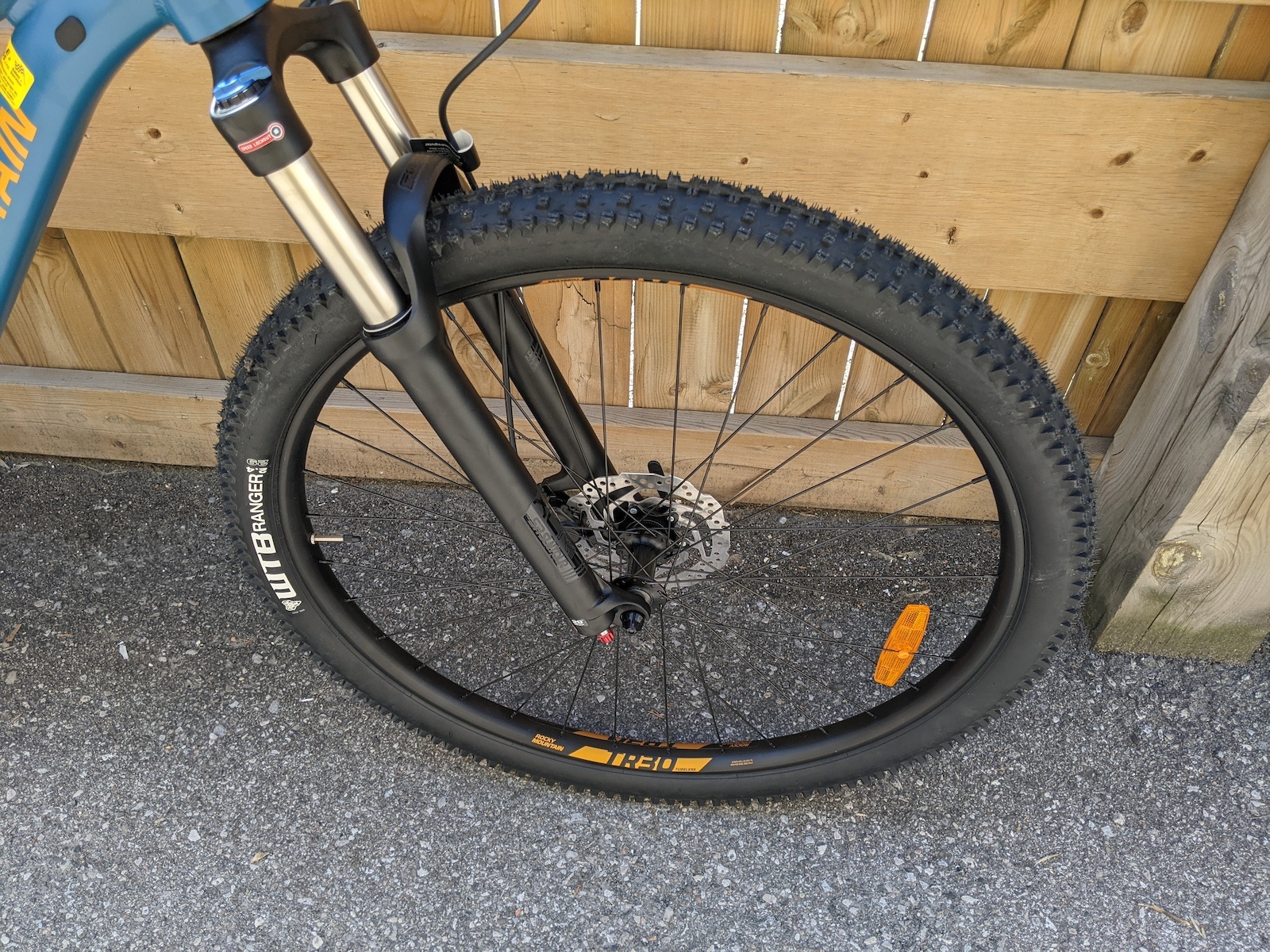

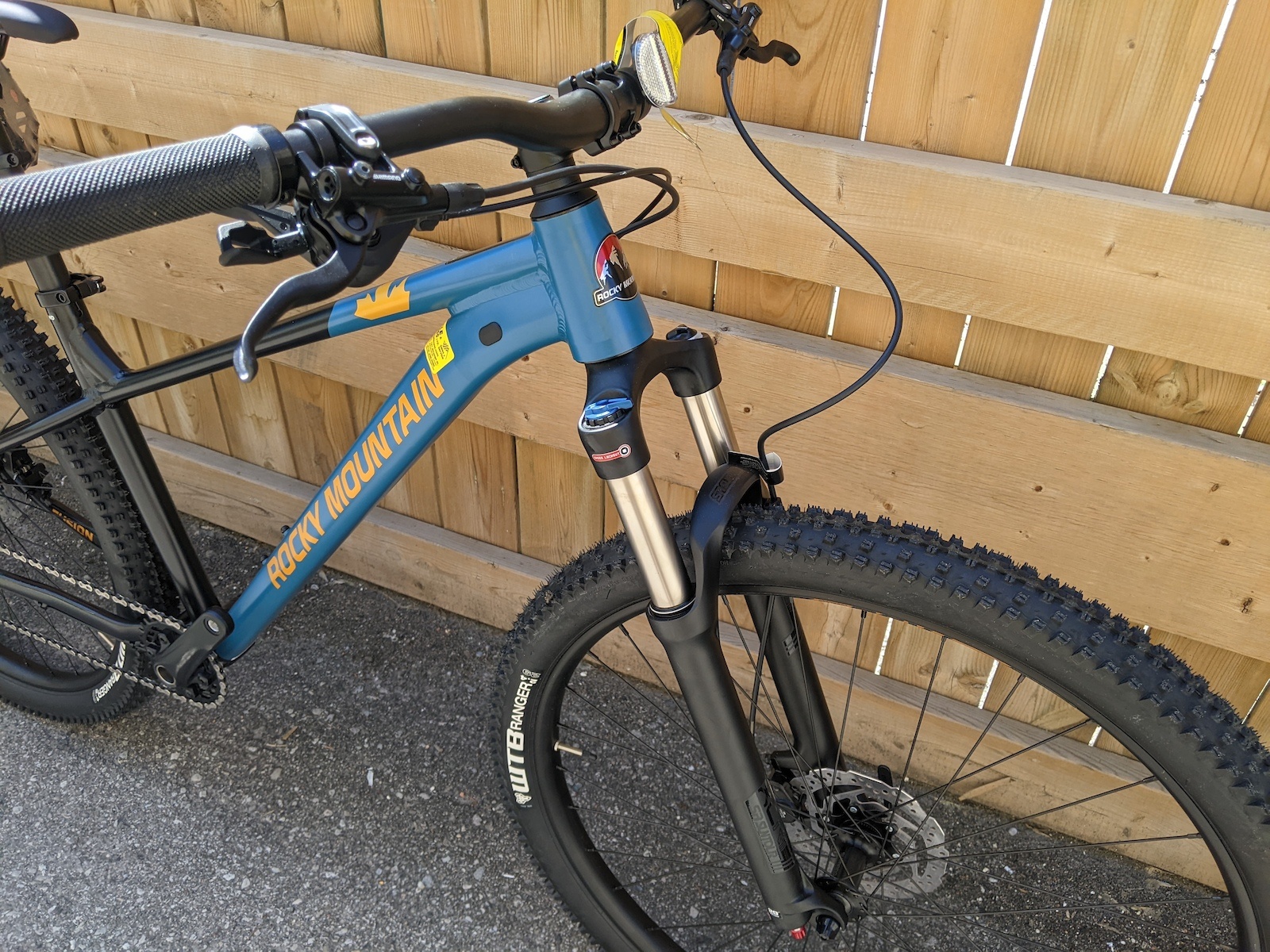

Fork
Suntour XCR32 LOR Air 100mm
Front Travel
100mm
Headset
Rocky Mountain | Loose Ball Bearings | 1-1/8" Reducer Crown Race
Stem
Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50m

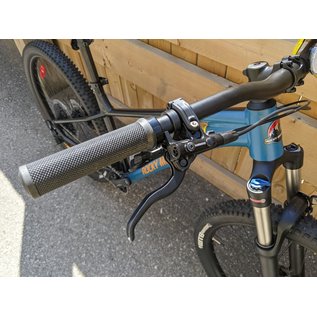

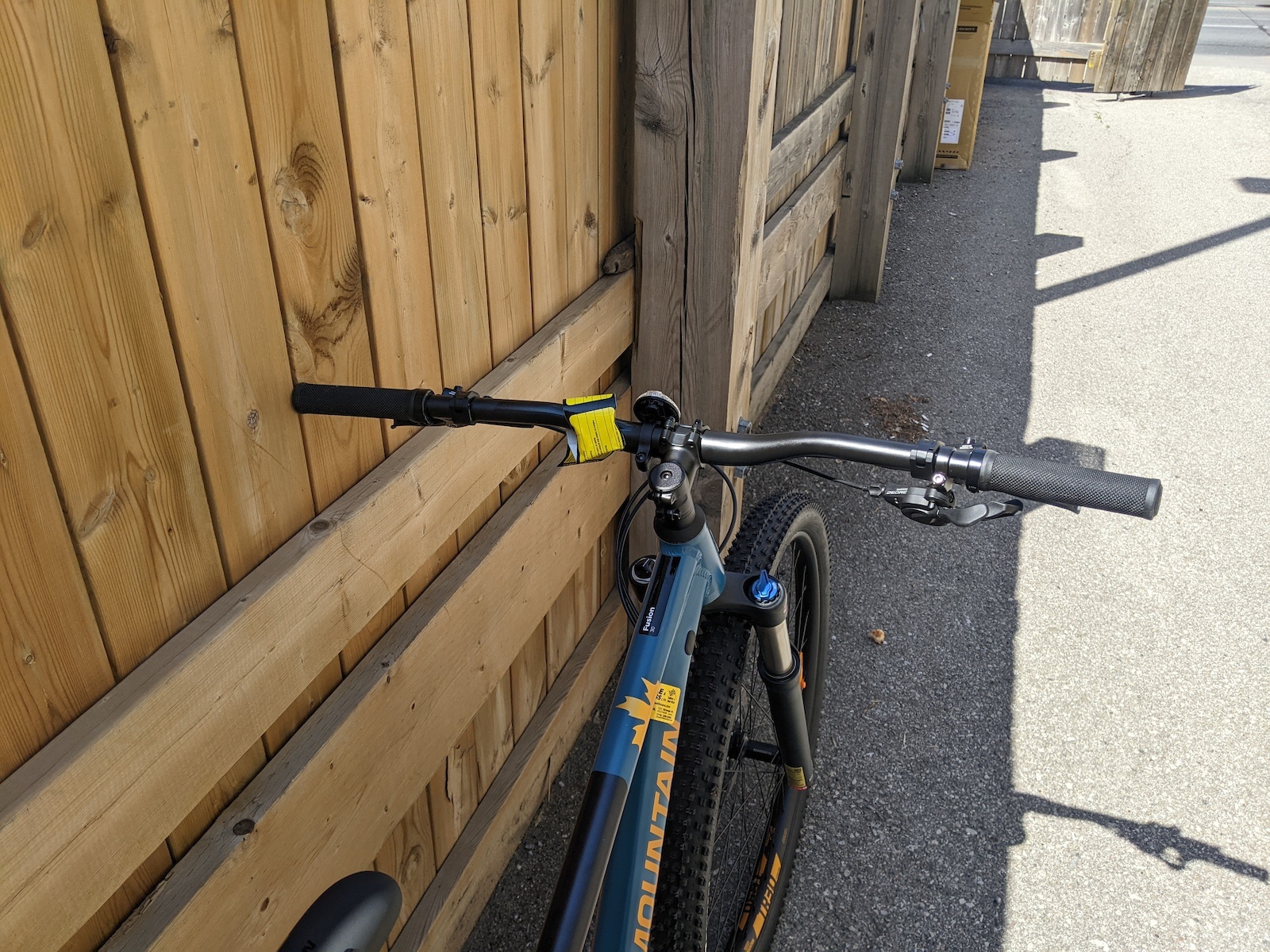

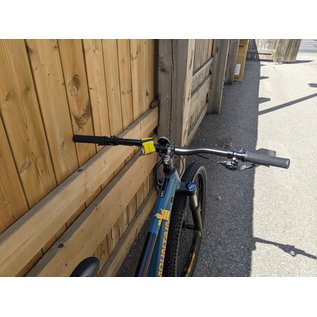

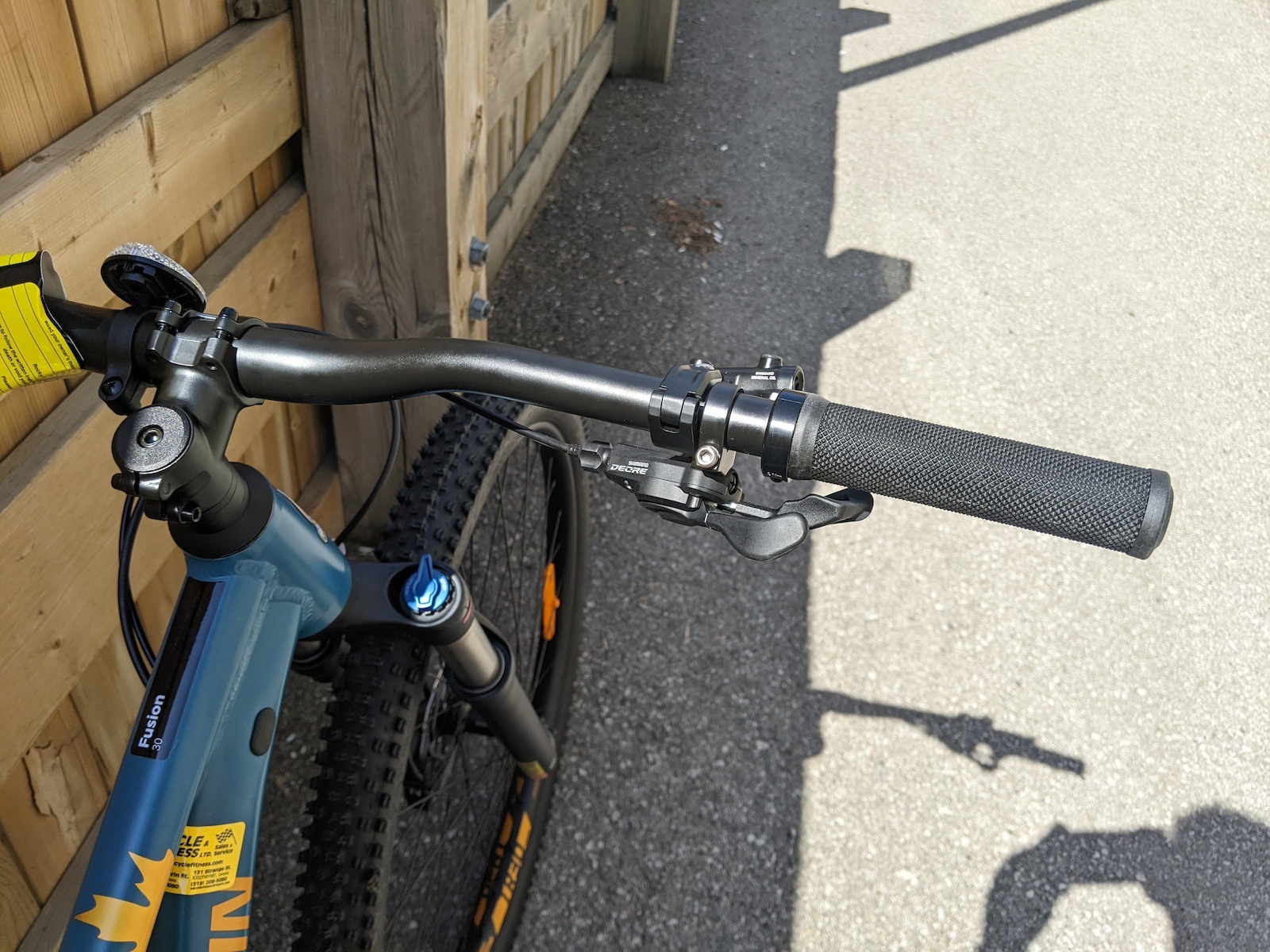

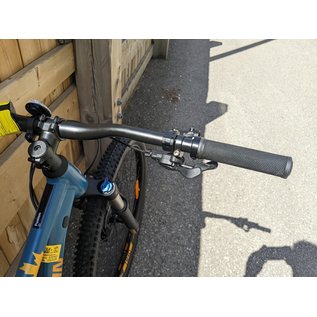

Handlebar
Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
Rocky Mountain Lock On Light

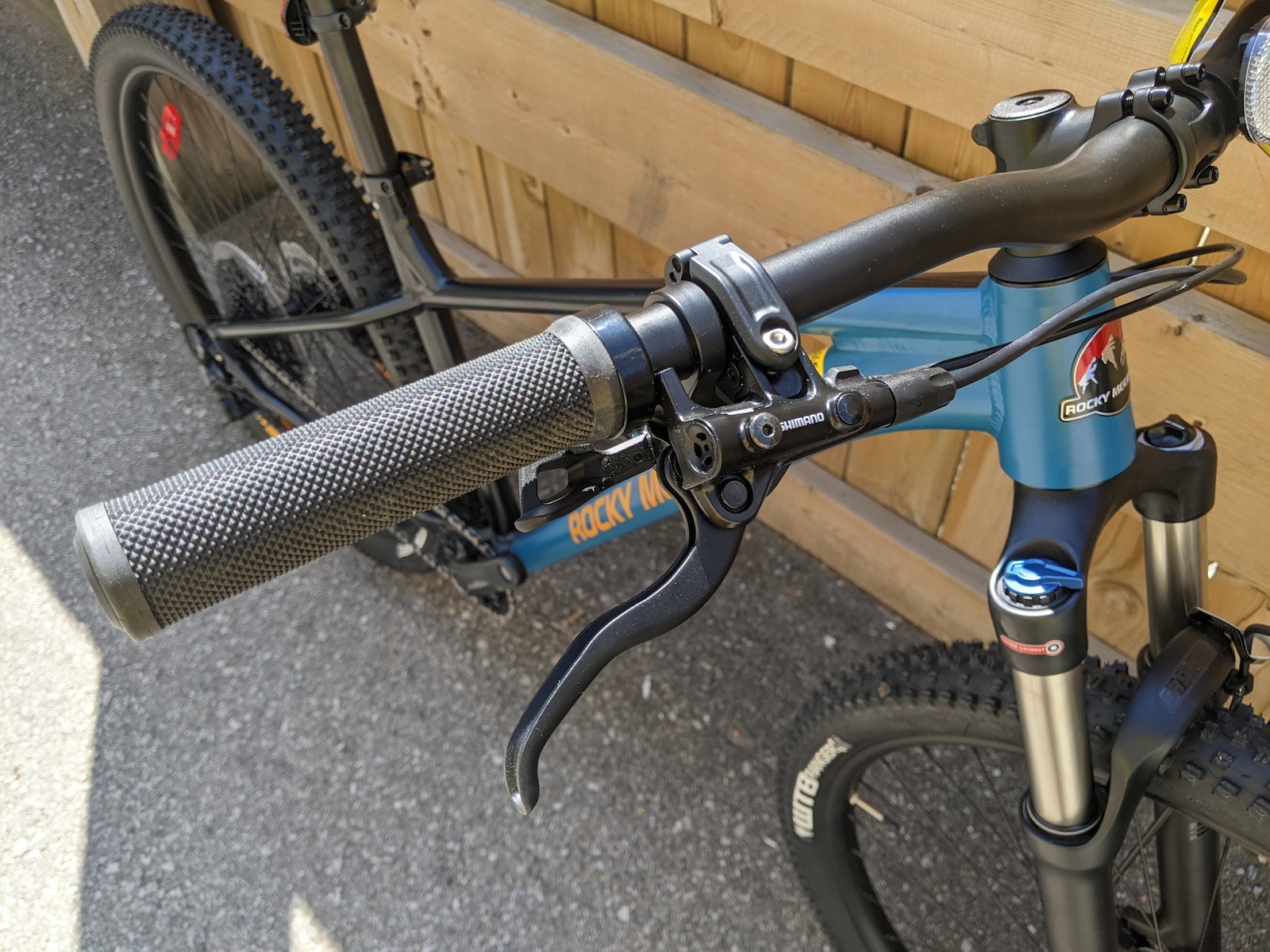

Brakes
Clarks M2 2 Piston | Resin Pads | F: Shimano RT10 160mm | R: Shimano RT10 160mm
Shifters
MicroShift Advent X 10spd

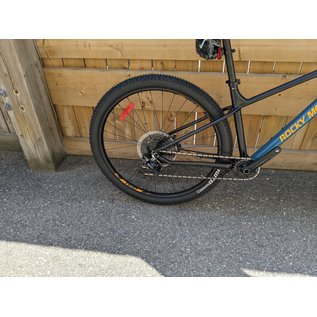

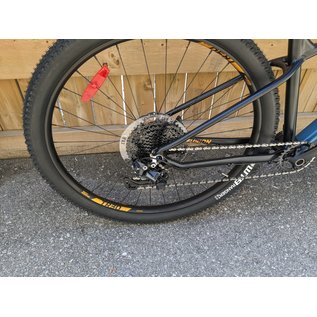

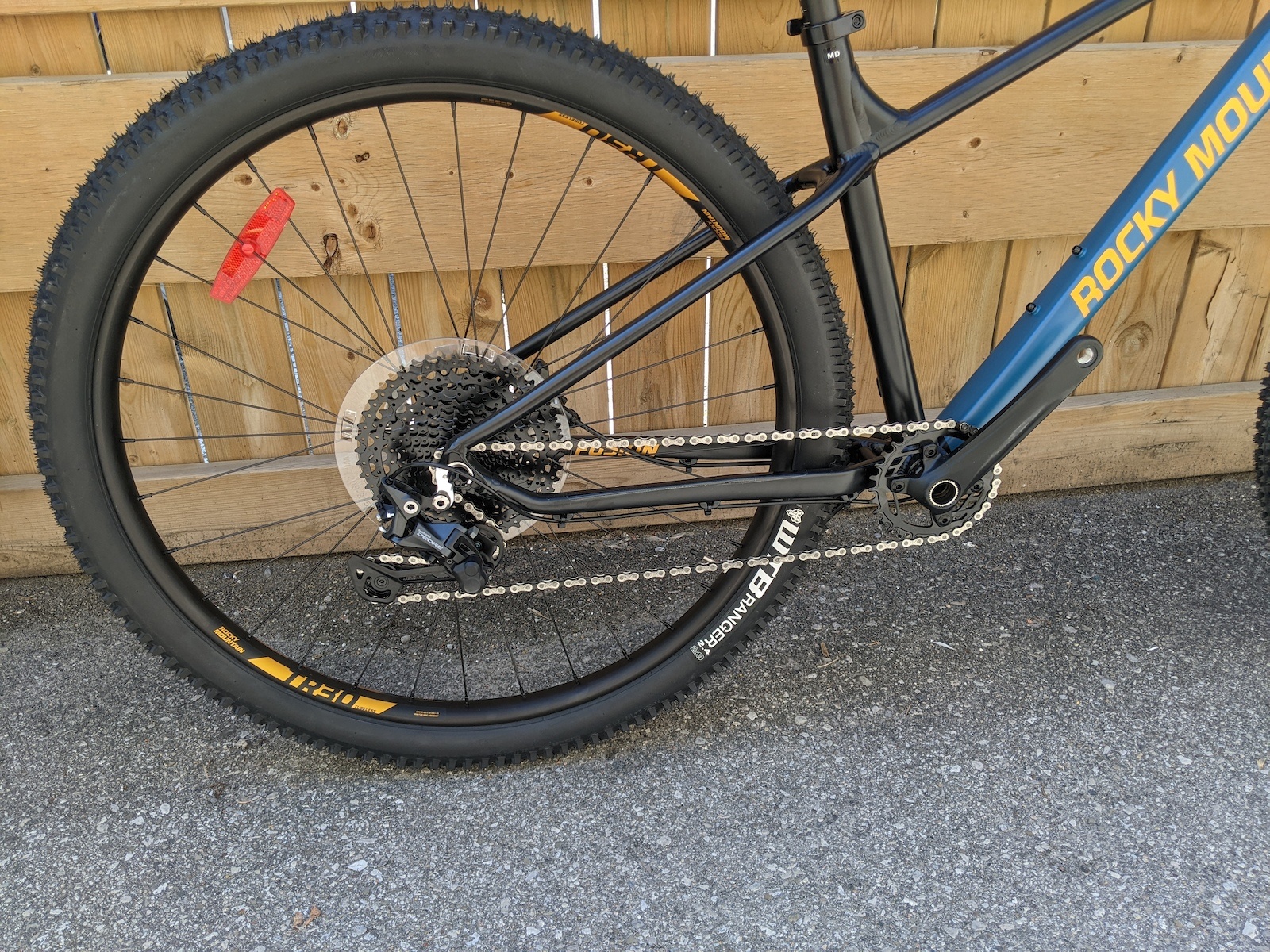

Rear Derailleur
MicroShift Advent X 10spd With Clutch
Cranks & Chainring
Rocky Mountain Microdrive 2PC | 30T |76mm Asymmetrical BCD | 24mm Spindle | Crank Length: XS-SM-MD = 170-mm | LG - XL = 175mm
Bottom Bracket
Rocky Mountain Sealed - Shimano Compatible

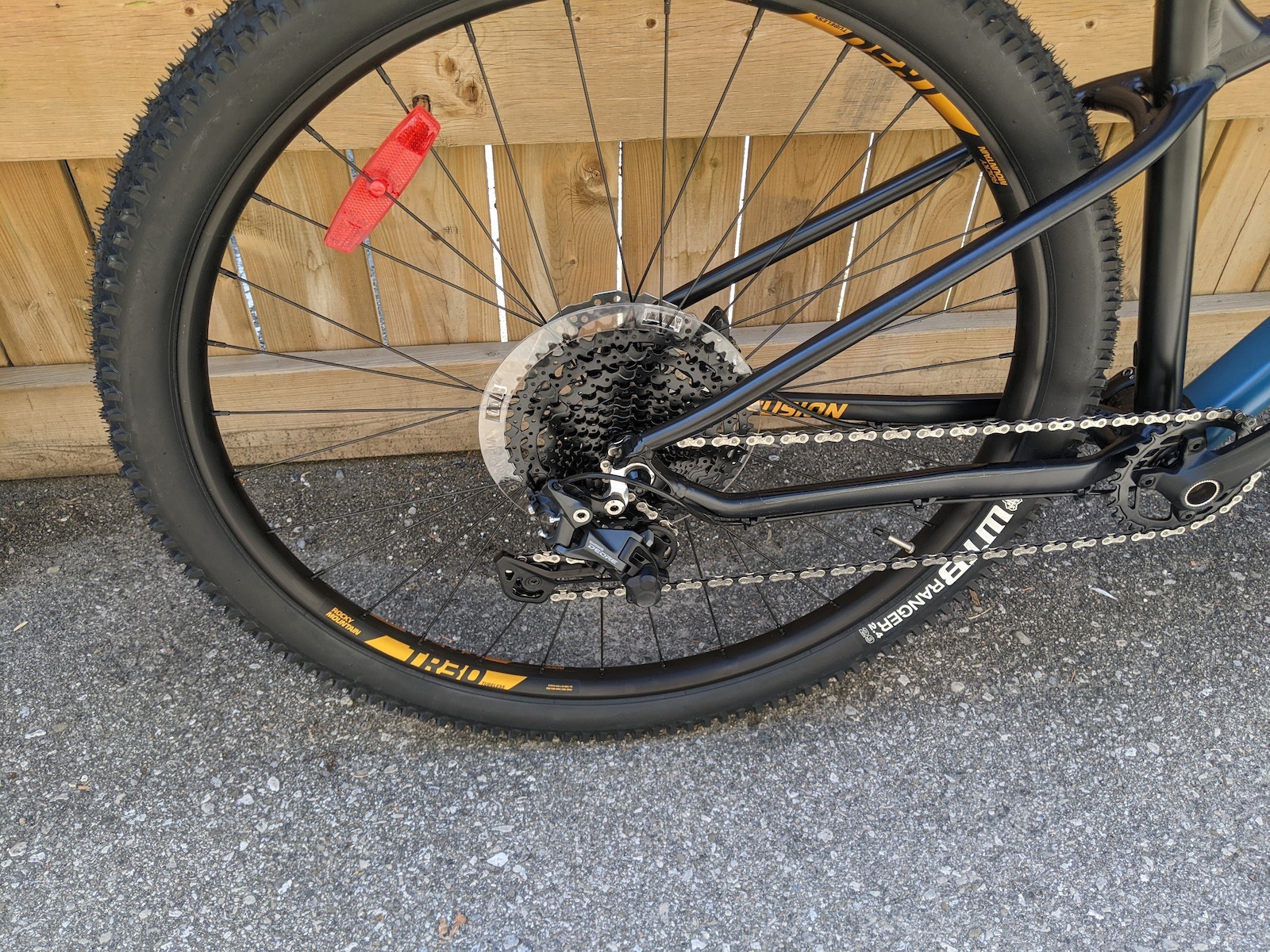

Cassette
MicroShift CS-H104 11-48T
Chain
KMC X10-1
Front Hub
Rocky Mountain QR
Rear Hub
Rocky Mountain QR
Spokes
2.0 Stainless
Rims
Rocky Mountain TR30 Tubeless | 32H | Tubeless Compatible - Tape | Valves | Sealant Not Incl
Tires
F: WTB Ranger Comp 29 x 2.4 | R: WTB Ranger Comp 29 x 2.4

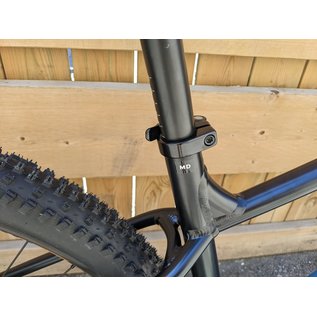

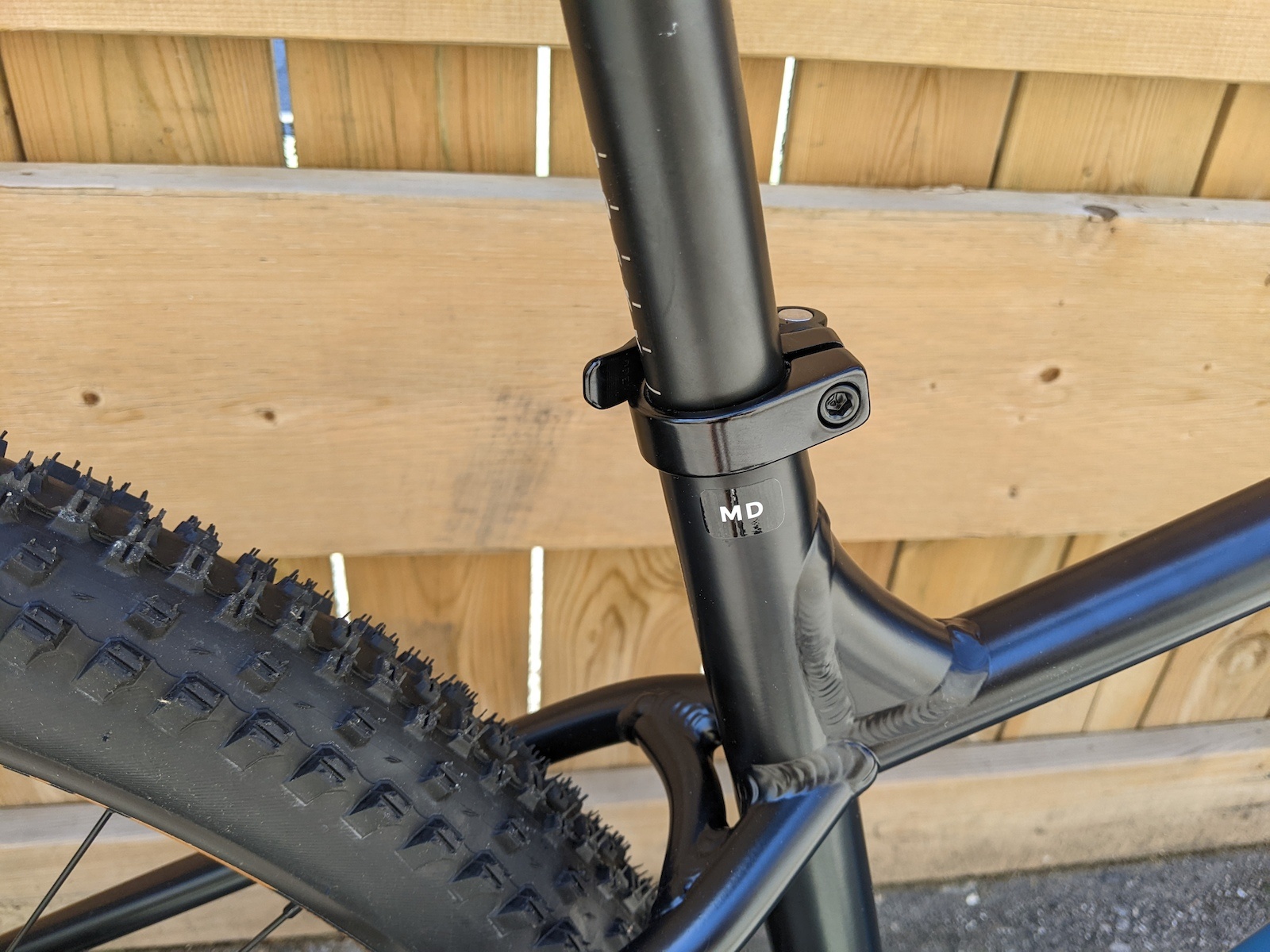

Seatpost
Rocky Mountain 30.9mm
Saddle
Rocky Mountain 148 Steel
