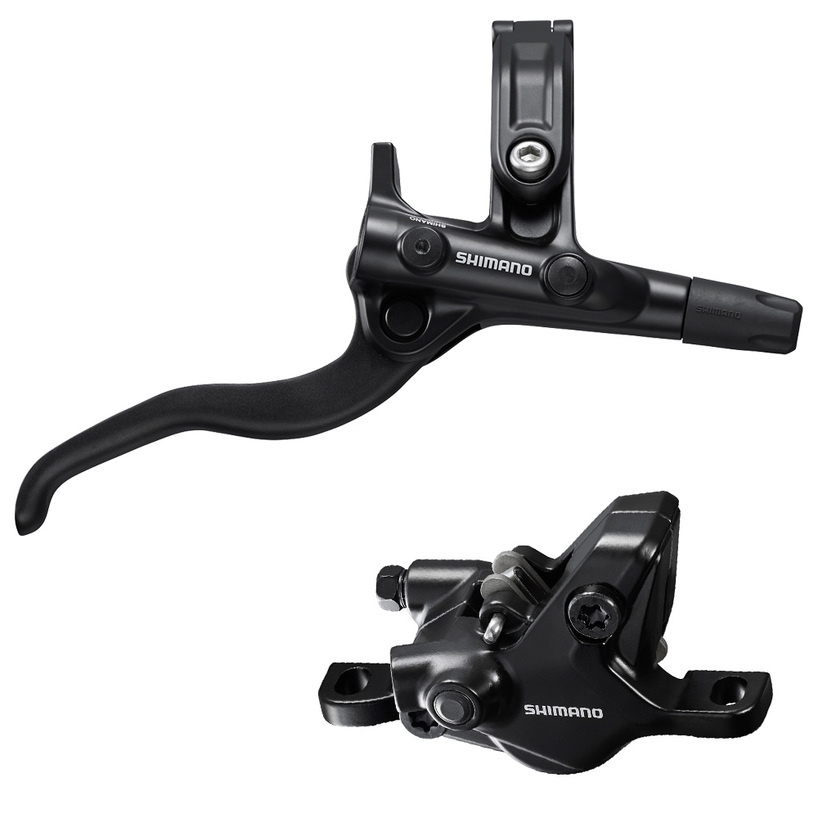

SHIMANO DEORE Hydraulic Disc Brake Lever I-SPEC EV Clamp Band BL-M4100
SHIMANO DEORE Hydraulic Disc Brake Caliper 2-piston BR-MT410
Complete Brake Set
| Quantity: | 1 |
DETAILED DESCRIPTION
SHIMANO - Hydraulic Disc brake Lever - I-SPEC EV Clamp Band
With quicker brake engagement and shorter free stroke, the SHIMANO BL-M4100 brake lever delivers intuitive braking so you can stay focused on the trail ahead. The I-SPEC EV shift lever offers a wider adjustment range for superior rider tuning.
SHIMANO DEORE - 2-piston - Hydraulic Disc Brake Caliper - MTB
The SHIMANO MT410 hydraulic disc brake delivers long-lasting performance and quick, easy installation and adjustment.
FEATURES
LEVER
CALIPER
SPECS
LEVER
| MODEL NO | BL-M4100 |
|---|---|
| SERIES | DEORE M4100 Series |
| Color | Black (SHIMANO logo) |
| Brake hose color (kit) | Black |
| Brake hose (Kit) | SM-BH59-JK-SS (for BR-MT410) SM-BH90-SS (for BR-MT420) |
|---|---|
| Brake type | Hydraulic disc brake |
| Hose joint | Straight |
| Compatible shift lever mount_I-SPEC EV | ✔ |
| Funnel bleeding | ✔ |
| J-Kit spec (for OEM) | ✔ |
| Lever size (finger) | 2 |
| Oil | SHIMANO Mineral |
| Reach adjust_Tool | ✔ |
| Recommended brake caliper | BR-MT410 BR-MT420 |
| Compatible shift lever mount_Clamp band | ✔ |
| Clamp band_Open clamp | ✔ |
| Shift lever rotation angle adjust range (I-SPEC EV ; deg.) | 10 |
CALIPER
| MODEL NO | BR-MT410 |
|---|---|
| SERIES | DEORE M4100 Series |
| Color | Black (SHIMANO logo) |
| Remarks | * Only compatible with resin pad |
| Brake hose color (kit) | Black |
|---|---|
| Brake hose (Kit) | SM-BH59-JK-SS |
| Brake type | Hydraulic disc brake |
| Caliper fixing bolt_Anti loosen method | Snap ring |
| Caliper fixing bolt_Tool size | 5 mm |
| Hose joint | Straight |
| Mount type | Post-type |
| ONE WAY BLEEDING | ✔ |
| Pad mount | Split pin Stainless Steel |
| Piston | 2 |
| Recommended brake lever | BL-M4100 |
| Recommended disc brake rotor | SM-RT30* SM-RT54* SM-RT56* |
| J-Kit spec (for OEM) | ✔ |
| Oil | SHIMANO Mineral |
| Compatible Brake Rotor Size_160 mm (S) | ✔ |
| Compatible Brake Rotor Size_180 mm (M) | ✔ |
| Compatible Brake Rotor Size_203 mm (L) | ✔ |
| Pad_Standard 1 | B05S-RX Resin (w/o fin) |
