SHIMANO DEORE Hydraulic Disc Brake Lever I-SPEC EV
BL-M6100
SHIMANO DEORE Hydraulic Disc Brake Caliper 4-piston
BR-M6120
Quantity: | 2 |
DESCRIPTION

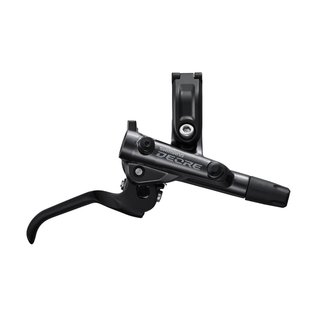

LEVER: SHIMANO DEORE - Hydraulic Disc Brake Lever - I-SPEC EV
With quicker brake engagement and shorter free stroke, the SHIMANO DEORE BL-M6100 brake lever delivers intuitive braking so you can stay focused on the trail ahead. The I-SPEC EV shift lever offers a wider adjustment range for superior rider tuning.

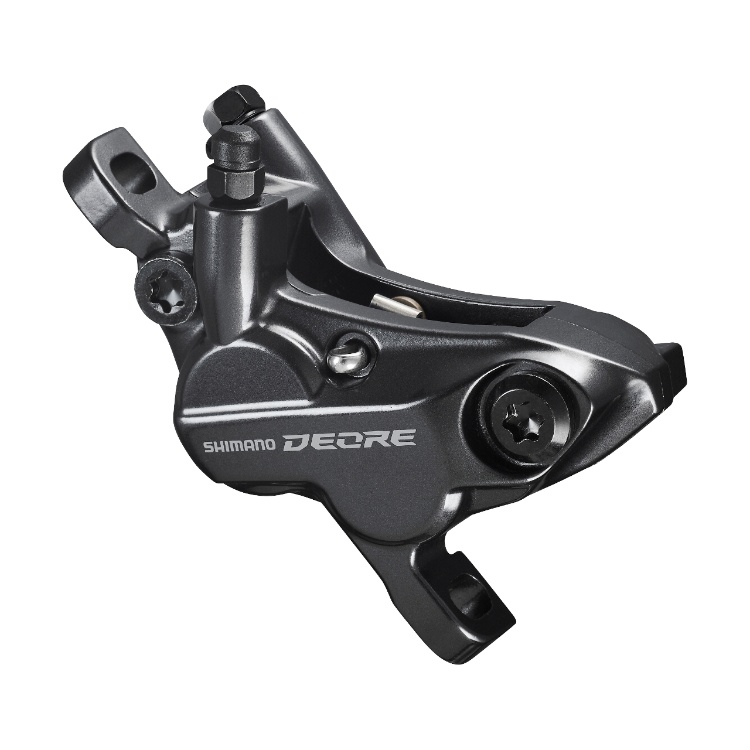

CALIPER: SHIMANO DEORE - 4-Piston - ICE TECHNOLOGIES - Hydraulic Disc Brake Caliper
The SHIMANO DEORE M6120 caliper features consistent braking performance and reliable stopping power in all conditions. The 4-piston caliper instills greater downhill confidence and control.
FEATURES:
SPECS
LEVER:
MODEL NO | BL-M6100 |
---|---|
SERIES | DEORE M6100 Series |
Color | Series Color | Black (SHIMANO Logo) |
Brake hose color (kit) | Black |
Brake hose (Kit) | SM-BH90-SS |
---|---|
Brake type | Hydraulic disc brake |
Hose joint | Straight |
Compatible shift lever mount_I-SPEC EV | ✔ |
Funnel bleeding | ✔ |
J-Kit spec (for OEM) | ✔ |
Lever size (finger) | 2 |
Oil | SHIMANO Mineral |
Reach adjust_Tool | ✔ |
Recommended brake caliper | BR-M6100 BR-M6120 |
SERVO WAVE | ✔ |
Compatible shift lever mount_Clamp band | ✔ |
Clamp band_Open clamp | ✔ |
Shift lever rotation angle adjust range (I-SPEC EV ; deg.) | 10 |
CALIPER:
MODEL NO | BR-M6120 |
---|---|
SERIES | DEORE M6100 Series |
Color | Series Color | Black (SHIMANO logo) *** |
Remarks | *: Only compatible with resin pad |
Brake hose color (kit) | Black |
---|---|
Brake hose (Kit) | SM-BH90-SS |
Brake type | Hydraulic disc brake |
Caliper fixing bolt_Anti loosen method | Snap ring |
Caliper fixing bolt_Tool size | 5 mm |
Hose joint | Straight |
Mount type | Post-type |
ONE WAY BLEEDING | ✔ |
Pad mount | Split pin Stainless Steel |
Piston | 4 |
Recommended brake lever | BL-M6100 |
Recommended disc brake rotor | SM-RT54* SM-RT56* SM-RT64 SM-RT66 |
J-Kit spec (for OEM) | ✔ |
Oil | SHIMANO Mineral |
Compatible Brake Rotor Size_140 mm (SS) | ✔ |
Compatible Brake Rotor Size_160 mm (S) | ✔ |
Compatible Brake Rotor Size_180 mm (M) | ✔ |
Compatible Brake Rotor Size_203 mm (L) | ✔ |
Pad_Option 1 | D02S-MX Metal (w/o fin) |
Pad_Standard 1 | D03S-RX Resin (w/o fin) |
