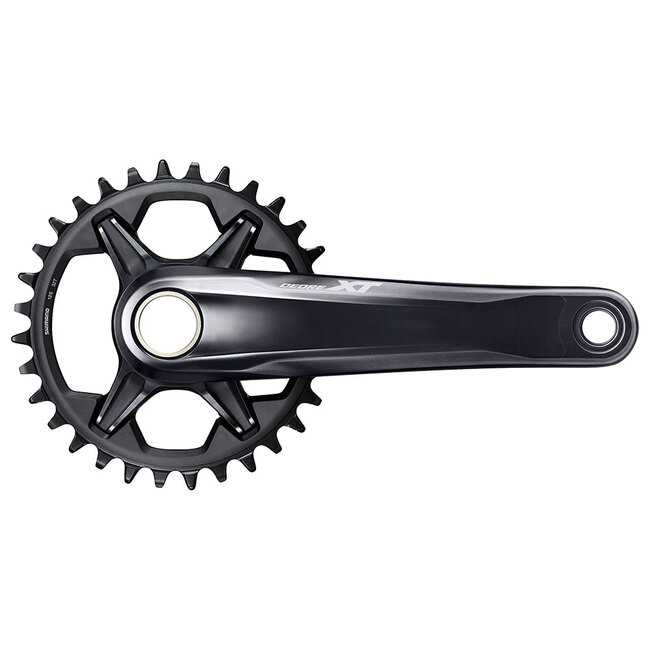

SHIMANO FC-M8130-1 DEORE XT 12-SPEED HOLLOWTECH 2 175MM W/O CHAINRING,
| Article number: | SHIMANO |
| Quantity: | 1 |
| Available in store: | Check availability |
DETAILED DESCRIPTION
SHIMANO DEORE XT - HOLLOWTECH II - MTB Crankset - 181 mm Q-Factor - 1x12-speed The SHIMANO DEORE XT FC-M8130-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a 181mm Q-factor.
FEATURES & BENEFITS
SPECS
| Average Weight | 636g |
| Crank Arm Finish | Anodized |
| Compatible Bb Type | Outboard |
| Gear Arms | 4 |
| Compatible Chain | HG|12-speed |
| Series | XT |
| Generation | M8100 |
| Crank Arm Length | 165,170,175 |
| Chain Ring Combination | No Chainring |
| Crank Arm Material | Aluminum |
| MODEL NO | FC-M8130-1 |
|---|---|
| SERIES | DEORE XT M8100 Series |
| Color | Series color |
| Average weight | 636 (32T) |
| Chainring combination | 32T, |
|---|---|
| Compatible bottom bracket type_Outboard | ✔ |
| Crank fixing screw included | ✔ |
| Crank arm length (mm)_165 | ✔ |
| Crank arm length (mm)_170 | ✔ |
| Crank arm length (mm)_175 | ✔ |
| Crank arm length (mm)_180 | ✔ |
| Spider/Gear arms | 4 |
| HOLLOWTECH II | ✔ |
| Optional chain guard_Without chain/bash guard | ✔ |
| Recommended bottom bracket_Press-fit | BB-MT800-PA |
| Recommended bottom bracket_Threaded (normal) | BB-MT800 |
| Threaded bottom bracket shell width (mm)_68 | ✔ |
| Threaded bottom bracket shell width (mm)_73 | ✔ |

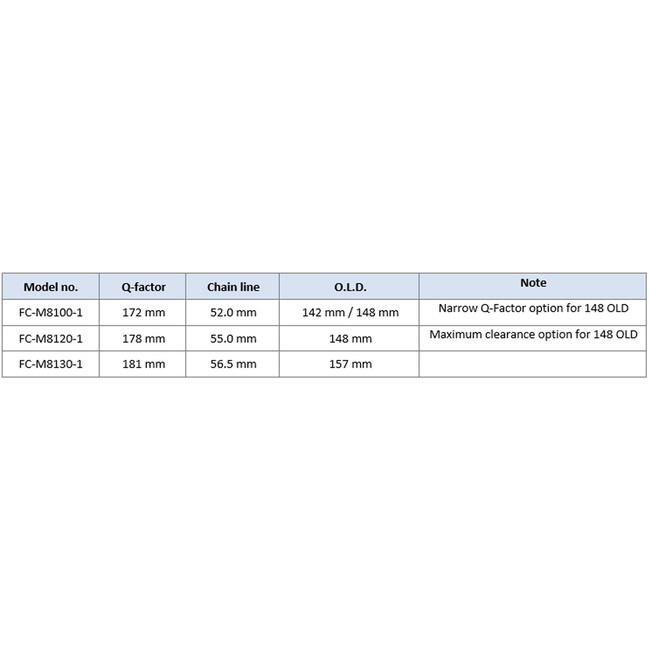

| Q-factor (mm) | 181 |
| Chain line (mm) | 56.5 |
| Compatible chain | HG 12-speed |
| P.C.D. (mm) | Direct |
| Rear speeds | 12 |
| O.L.D._Thru (mm) | 157 |
