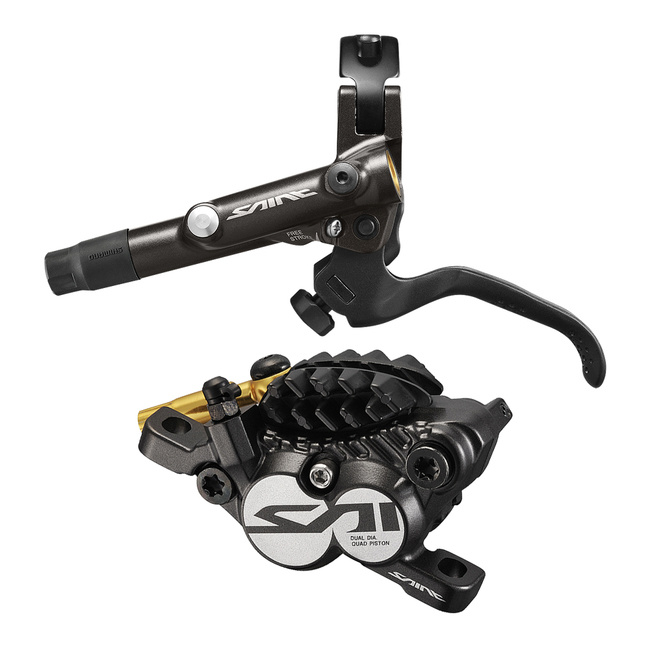

DISC BRAKE ASSEMBLED SET, SAINT, BL-M820-B, BR-M820
| Article number: | SHIMANO |
| Quantity: | 1 |
| Available in store: | Check availability |
DETAILED DESCRIPTION

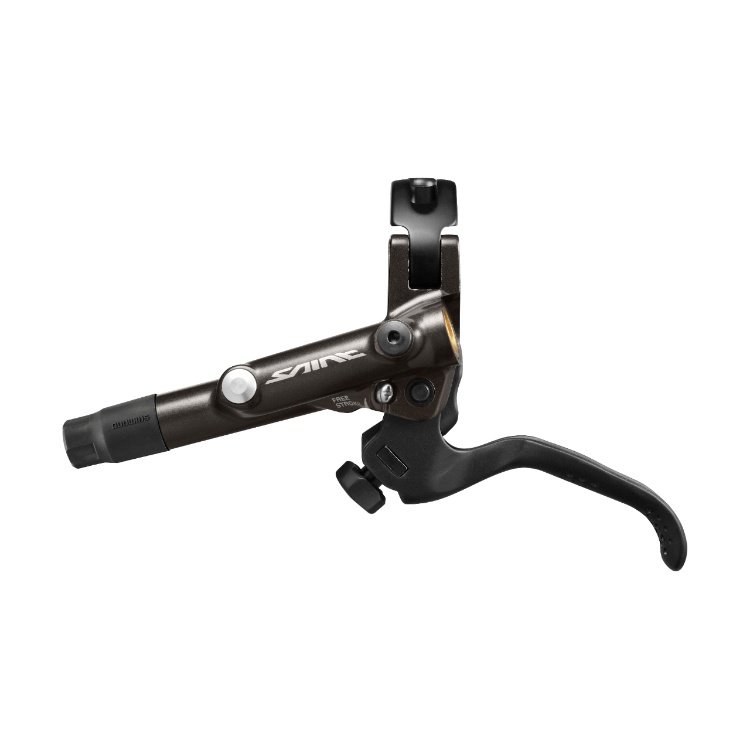

LEVER: SHIMANO SAINT- Hydraulic Disc Brake Lever - I-SPEC B Clamp Band - SERVO WAVE Action
The world's best gravity riders rely on SHIMANO SAINT brakes to deliver ultimate stopping power and nuanced modulation no matter the conditions. For sure braking in the roughest terrain, the BL-M820 levers are textured and feature tool-free reach adjust, Free Stroke adjustment, and I-spec B compatibility.

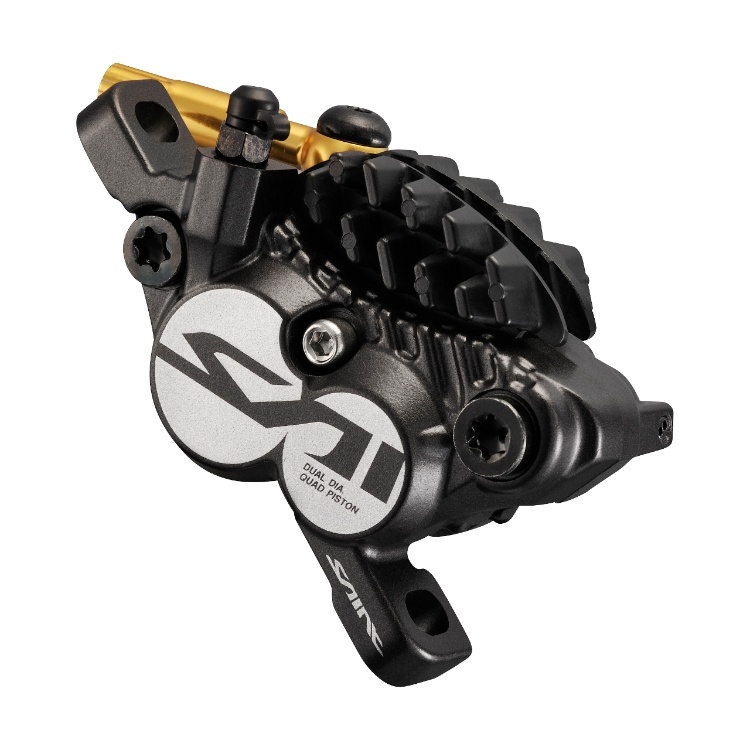

CALIPER: SAINT - ICE TECHNOLOGIES - 4-Piston - Hydraulic Disc Brake Caliper.
The ultimate gravity and downhill brake, the SAINT hydraulic disc brake features a rigid caliper, 4-ceramic pistons, and integrated ICE TECHNOLOGIES heat management.
FEATURES
LEVER
CALIPER
SPECS
LEVER
| MODEL NO | BL-M820-B |
|---|---|
| SERIES | SAINT M820 Series |
| Color | Series color |
| Average weight | 103.2 * |
| Remarks | * Single item weight |
|---|---|
| Brake hose color (kit) | Black - White |
| Brake hose (Kit) | SM-BH90-SBLS |
| Brake type | Hydraulic disc brake |
| Hose joint | Straight |
| Free stroke adjust | ✔ |
| Funnel bleeding | ✔ |
| J-Kit spec (for OEM) | ✔ |
| Lever size (finger) | 2 |
| Oil | SHIMANO Mineral |
| Reach adjust_Toolless | ✔ |
| Recommended brake caliper | BR-M820 |
| SERVO WAVE | ✔ |
| Compatible shift lever mount_Clamp band | ✔ |
| Compatible shift lever mount_I-SPEC B | ✔ |
| Clamp band_Open clamp | ✔ |
CALIPER
| MODEL NO | BR-M820 |
|---|---|
| SERIES | SAINT M820 Series |
| Color | Series color |
| Average weight | 306** (w/ radiator fin) |
| Remarks | ** Single item weight |
|---|---|
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
| Brake hose color (kit) | Black | White |
| Brake hose (Kit) | SM-BH90-SBLS |
| Brake type | Hydraulic disc brake |
| Caliper fixing bolt_Anti loosen method | Snap ring |
| Caliper fixing bolt_Tool size | 5 mm |
| Hose joint | Banjo |
| Mount type | Post-type |
| ONE WAY BLEEDING | ✔ |
| Pad_Standard | H01A Resin H03A Resin | H03C Metal |
| Pad mount | Pad axle |
| Piston | 4 |
| Recommended brake lever | BL-M820 |
| Recommended disc brake rotor | SM-RT99 SM-RT86 |
| J-Kit spec (for OEM) | ✔ |
| Oil | SHIMANO Mineral |
| Compatible Brake Rotor Size_140 mm (SS) | ✔ |
| Compatible Brake Rotor Size_160 mm (S) | ✔ |
| Compatible Brake Rotor Size_180 mm (M) | ✔ |
| Compatible Brake Rotor Size_203 mm (L) | ✔ |
| Pad_Standard 1 | H01A Resin H03A Resin |
| Pad_Standard 2 | H03C Metal |
