WH-RS100-CL-F
WH-RS100-CL-R

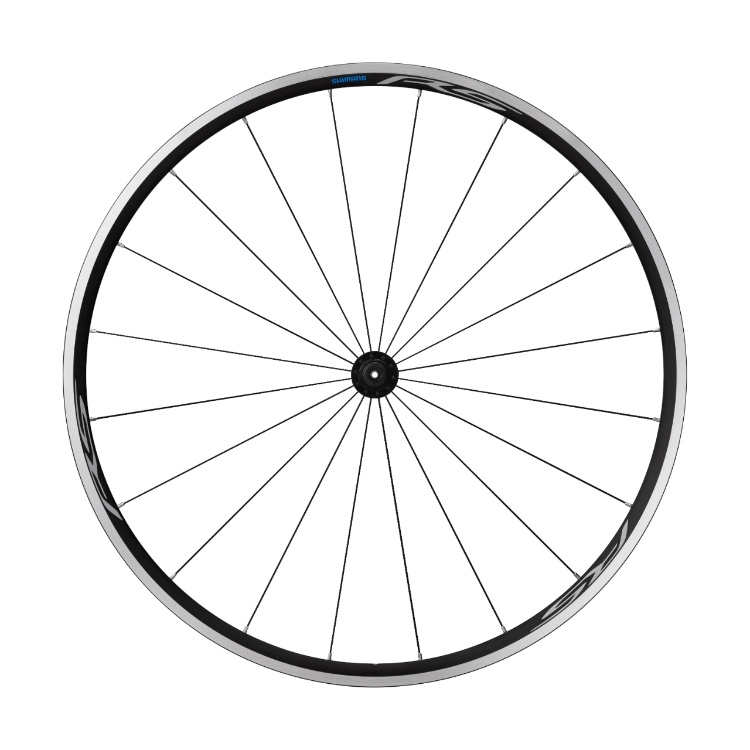

RS100 Clincher Front Wheel

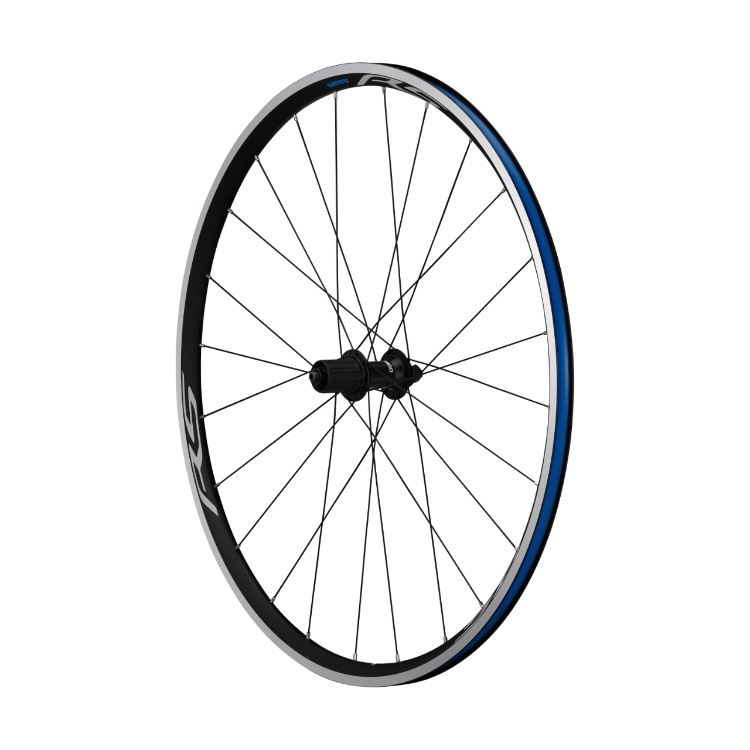

RS100 Clincher Rear Wheel
| Article number: | SHIMANO |
| Quantity: | 1 |
| Available in store: | Check availability |
SPECS
FRONT WHEEL & REAR WHEEL
| MODEL NO | WH-RS100-CL-F |
|---|---|
| SERIES | SHIMANO TIAGRA 4700 Series |
| Color | Black |
| Average weight | 827 |
| Brake type | Rim brake |
|---|---|
| Axle fixing method | Quick release |
| O.L.D. (mm) | 100 |
| Quick release skewer length (mm)_133 | ✔ |
| Front/Rear | Front |
| Reflector_AS | CATEYE RR-550-WUA SW |
| Reflector_DIN | CATEYE RR-317-WUA SW |
| Reflector_JIS/CPSC | CATEYE RR-550-WUW SW |
| Rim_Height (mm) | 24 |
| Rim_Requires rim tape | 18-622 |
| Rim_Rim joint | Sleeved |
| Seal_Hub | Contact |
| Spokes_Number | 20 |
| Tire_Recommended size | 23-622 - 32-622 |
| Tire_Type | Clincher |
| Wheel Size | 622 x 17C |
| Color_1 Hub shell | Black |
| Color_1 Quick release | Black |
| Model name | WH-RS100-CL |
| Rim_External width (mm) | 23.2 |
| Rim_Internal width (mm) | 17 |
| Spokes_Diameter (mm) | 2 |
| Specification | F |
| MODEL NO | WH-RS100-CL-R |
|---|---|
| SERIES | SHIMANO TIAGRA 4700 Series |
| Color | Black |
| Average weight | 1105 |
| Remarks | * The adapter is needed to use 10-speed cassette sprocket |
|---|---|
| Brake type | Rim brake |
| Axle fixing method | Quick release |
| O.L.D. (mm) | 130 |
| Rear speeds | 11/10* |
| Quick release skewer length (mm)_163 | ✔ |
| Quick release skewer length (mm)_168 | ✔ |
| Compatible spoke protector | CP-WH24 CP-FH53 (34T) |
| Front/Rear | Rear |
| Reflector_AS | CATEYE RR-550-WUA SW |
| Reflector_DIN | CATEYE RR-317-WUA SW |
| Reflector_JIS/CPSC | CATEYE RR-550-WUW SW |
| Rim_Height (mm) | 24 |
| Rim_OFFSET RIM | ✔ |
| Rim_Requires rim tape | 18-622 |
| Rim_Rim joint | Sleeved |
| Seal_FREEHUB body | Contact |
| Seal_Hub | Contact |
| Spokes_Number | 24 |
| Tire_Recommended size | 23-622 - 32-622 |
| Tire_Type | Clincher |
| Wheel Size | 622 x 17C |
| Color_1 Hub shell | Black |
| Color_1 Quick release | Black |
| HG spline (ROAD 11-speed) | ✔ |
| Model name | WH-RS100-CL |
| Engagement type | Pawl ratchet |
| Rim_External width (mm) | 23.2 |
| Rim_Internal width (mm) | 17 |
| Spokes_Diameter (mm) | 2 |
| Specification | R |
